Timber clad 5 bedroom contemporary house - ID 25608

Plan Specifications

  • 2 stories

  • 5 bedrooms

  • 6 baths

  • 374 sq m

  • Length 18m

  • Structural Drawings

  • Width 16m


To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

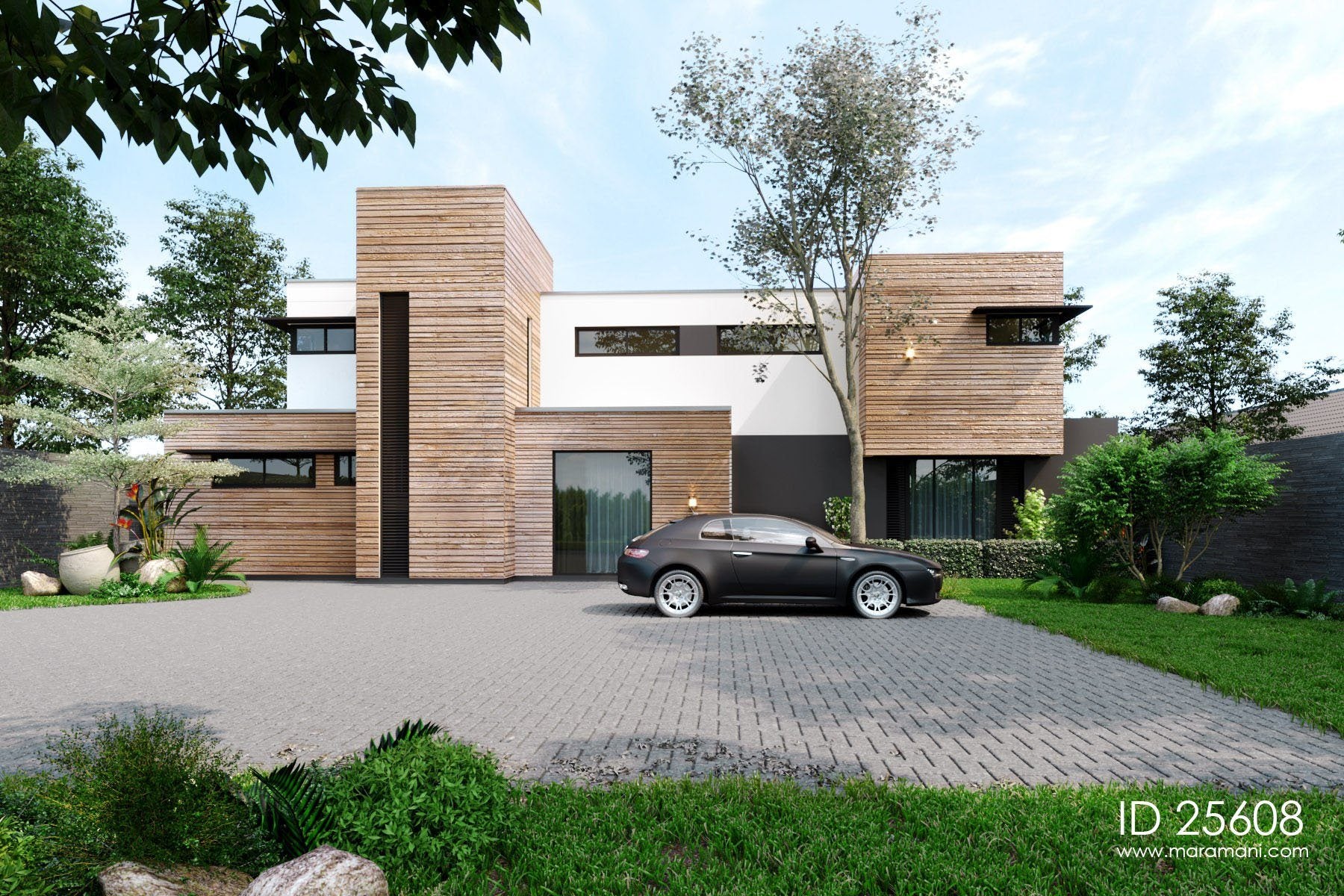

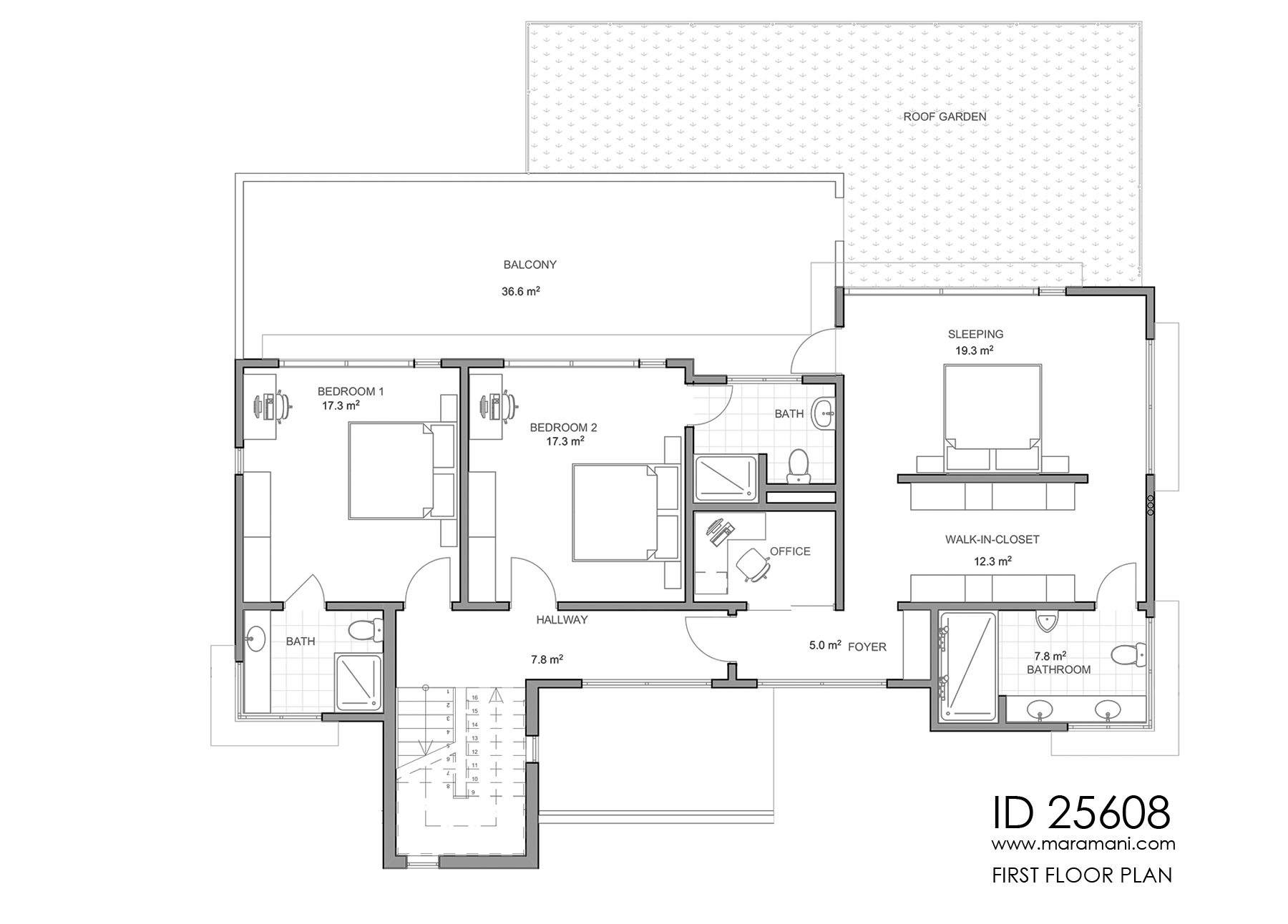

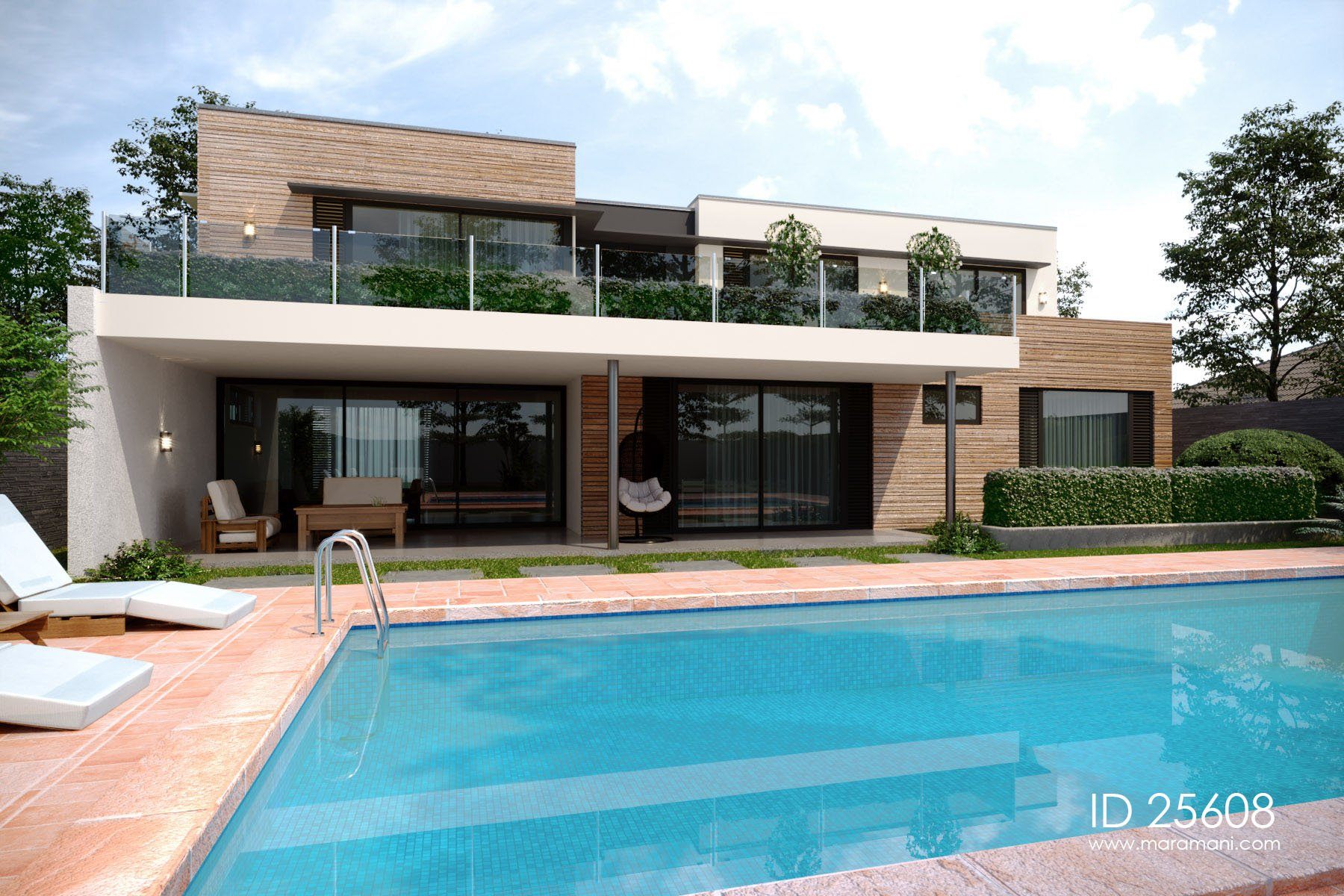

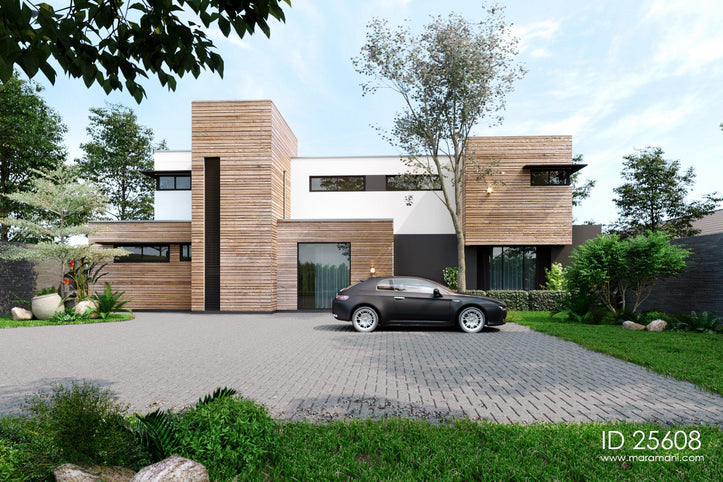

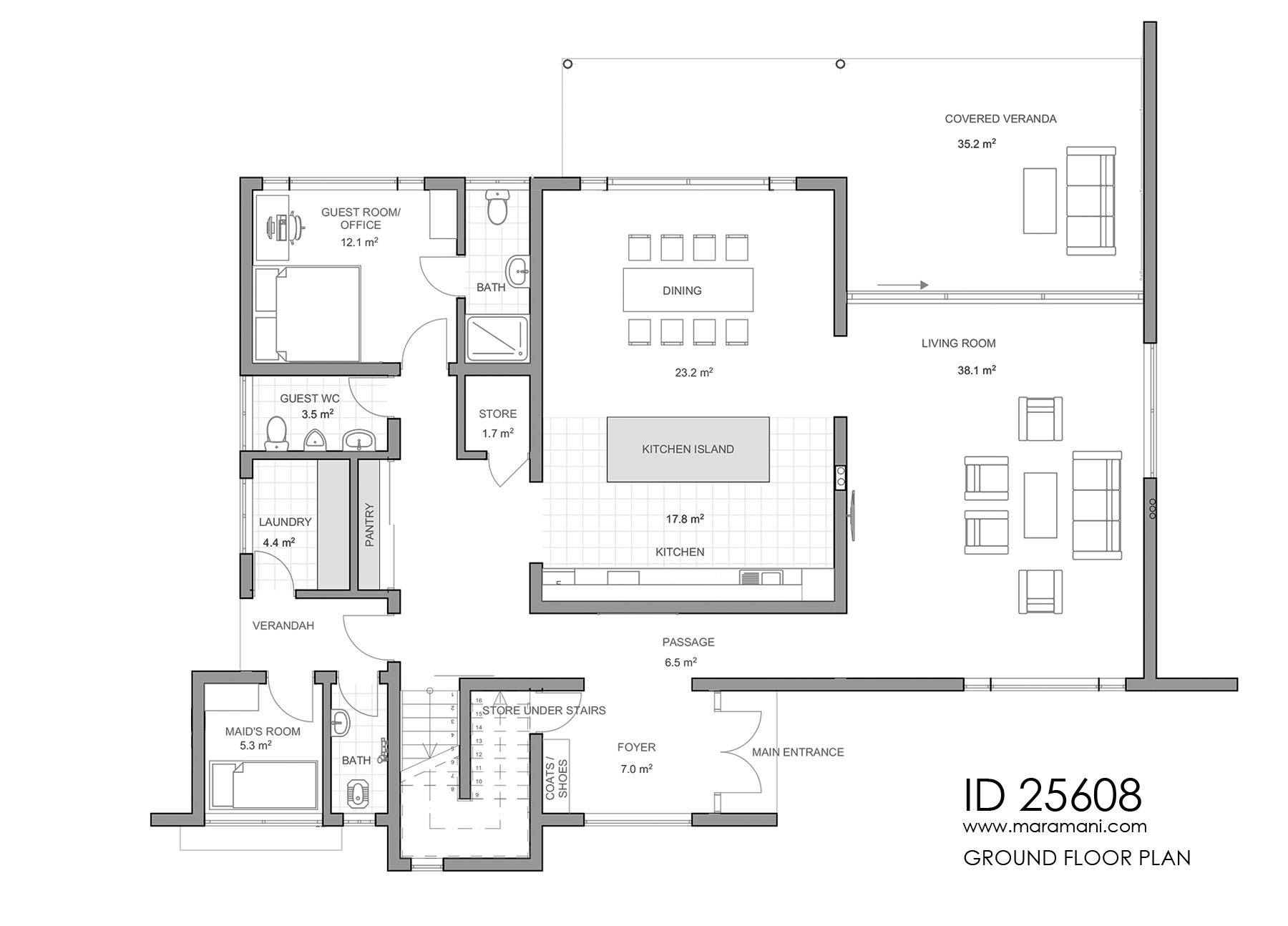

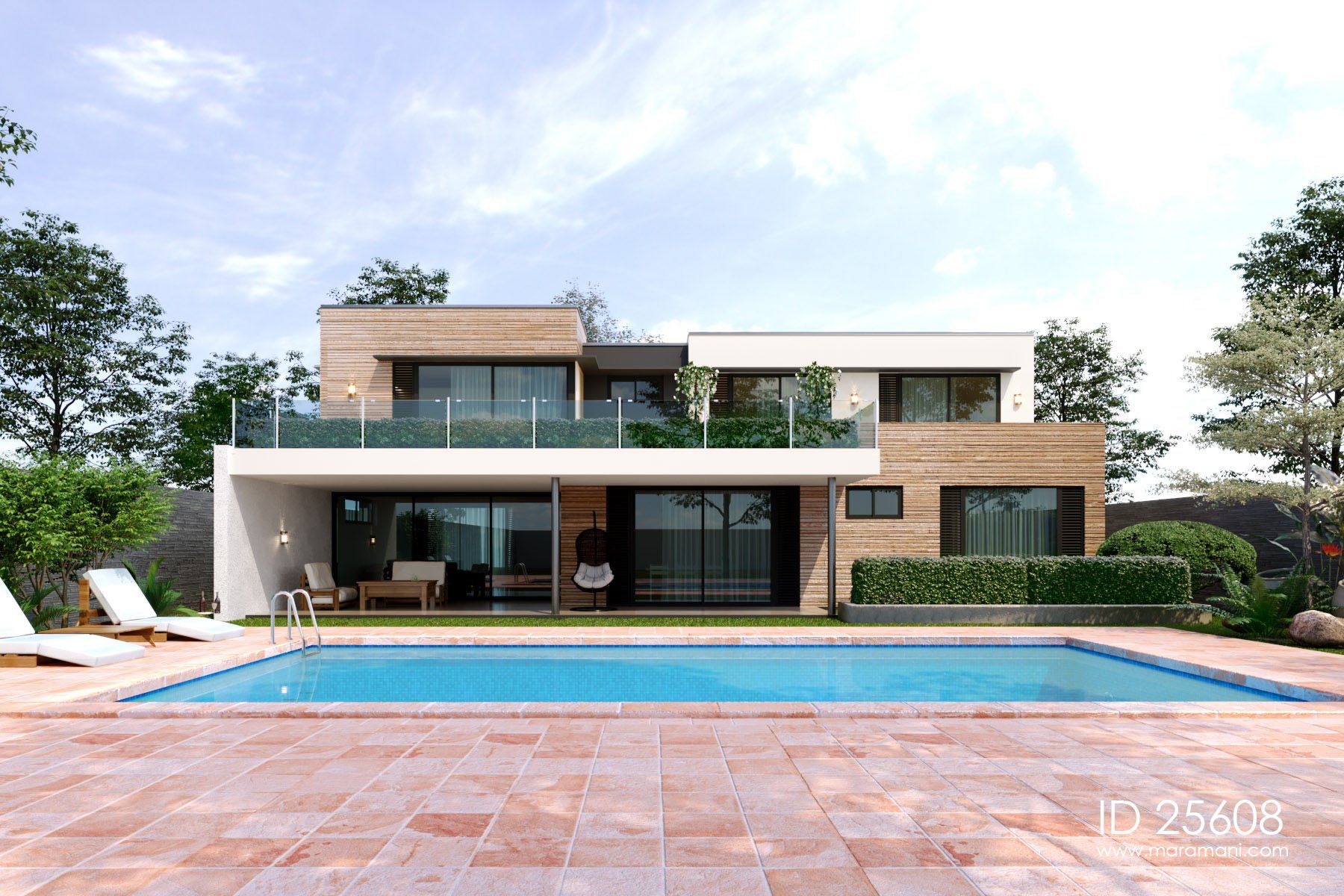

A contemporary 5 bedroom house with timber cladding on top of regular concrete block walls. The timber gives lasting cladding solution with very little maintenance while giving it a beautiful natural finish. The entrance is located such as to allow you to go straight up to the bedrooms or guest rooms without needing to pass by the living room or kitchen and vice versa. All main bedrooms are placed to face the main garden, thus giving the possibility to secure the yard and not need security reinforcements in the windows for the front windows. All bedrooms on the first floor connect to the balcony and to the green roof garden which is placed in front of the master bedroom.

Plan Details

Features Drawings List
Stories: 2
Bedroom: 5
Self-contained rooms: 4
Toilets: 6
Kitchen: 1
Dining room: 1
Living room: 1
Balcony: 1
Verandah: 3
Laundry: 1
Store: 3

Foundation plan
Floor plans
Roof plan
Door and window schedules
Construction details
Floor finishes
Schematic electrical layout
Septic tank and soak pit detail
Structural Drawings

*Drawings delivered in PDF and DWG Format
