Resort - ID 19901

Plan Specifications

  • 1 story

  • 14 bedrooms

  • 18 baths

  • 1015 sq m

  • Length 50.5m

  • Width 57.15m

$1,099.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description ( 3 - Units )

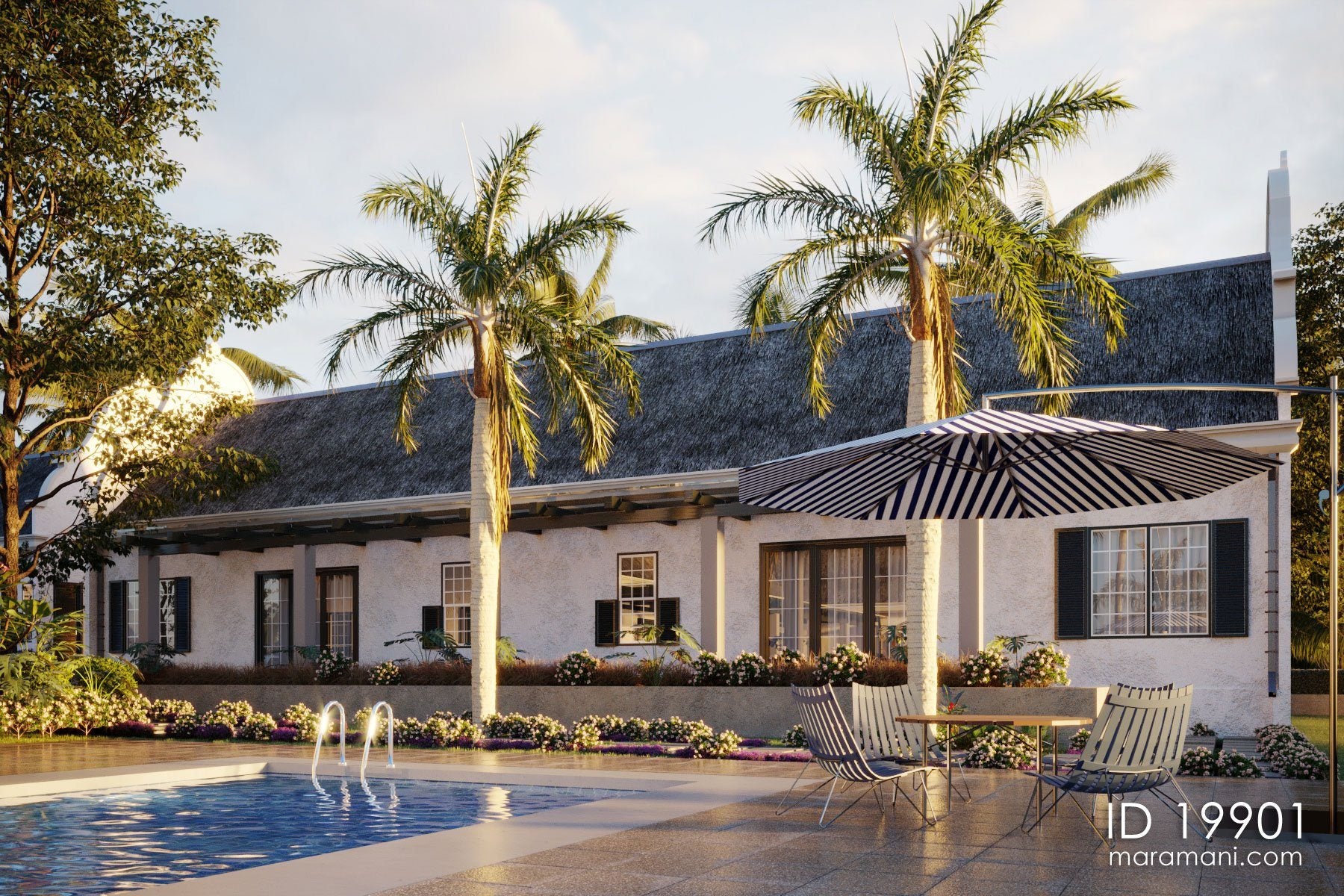

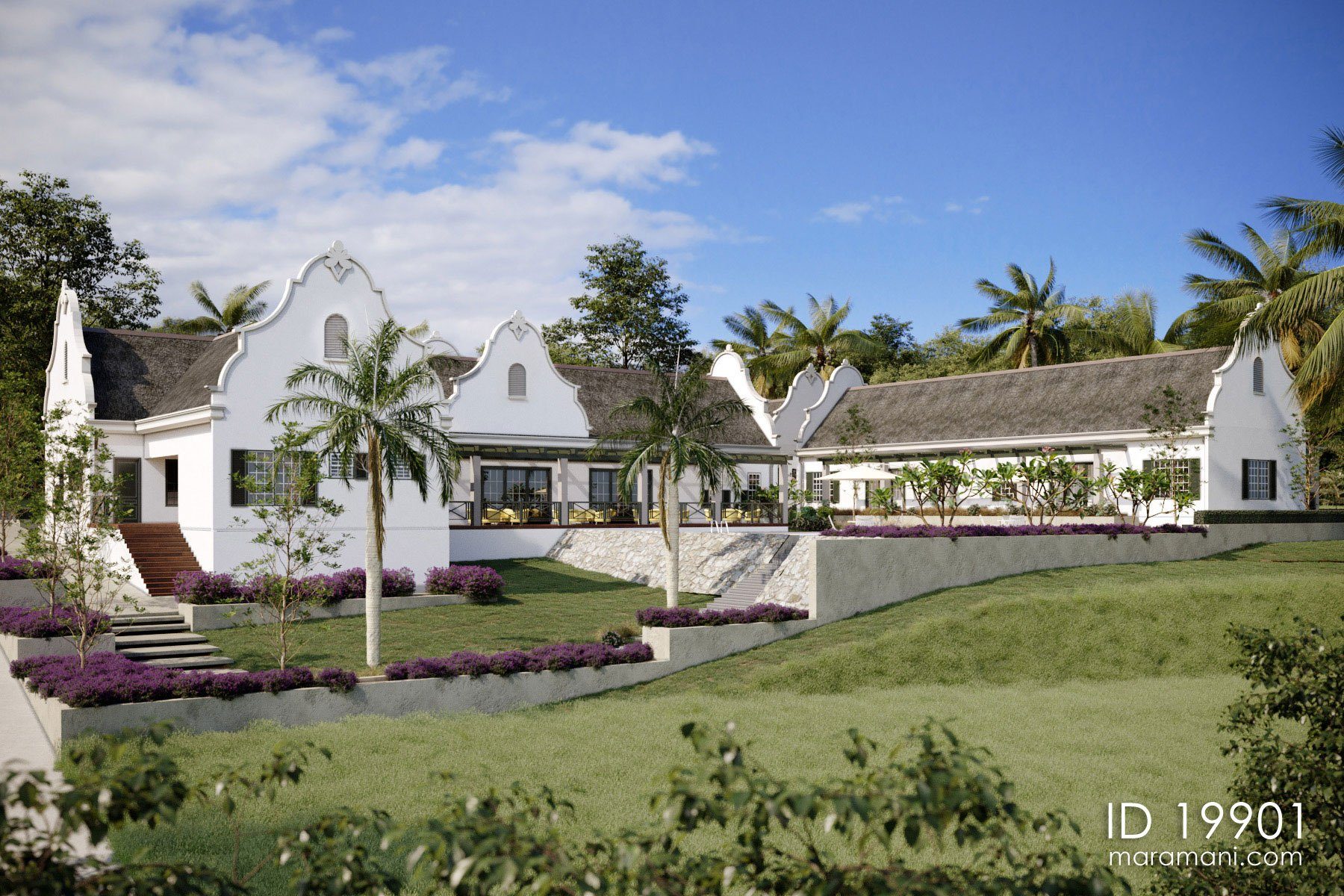

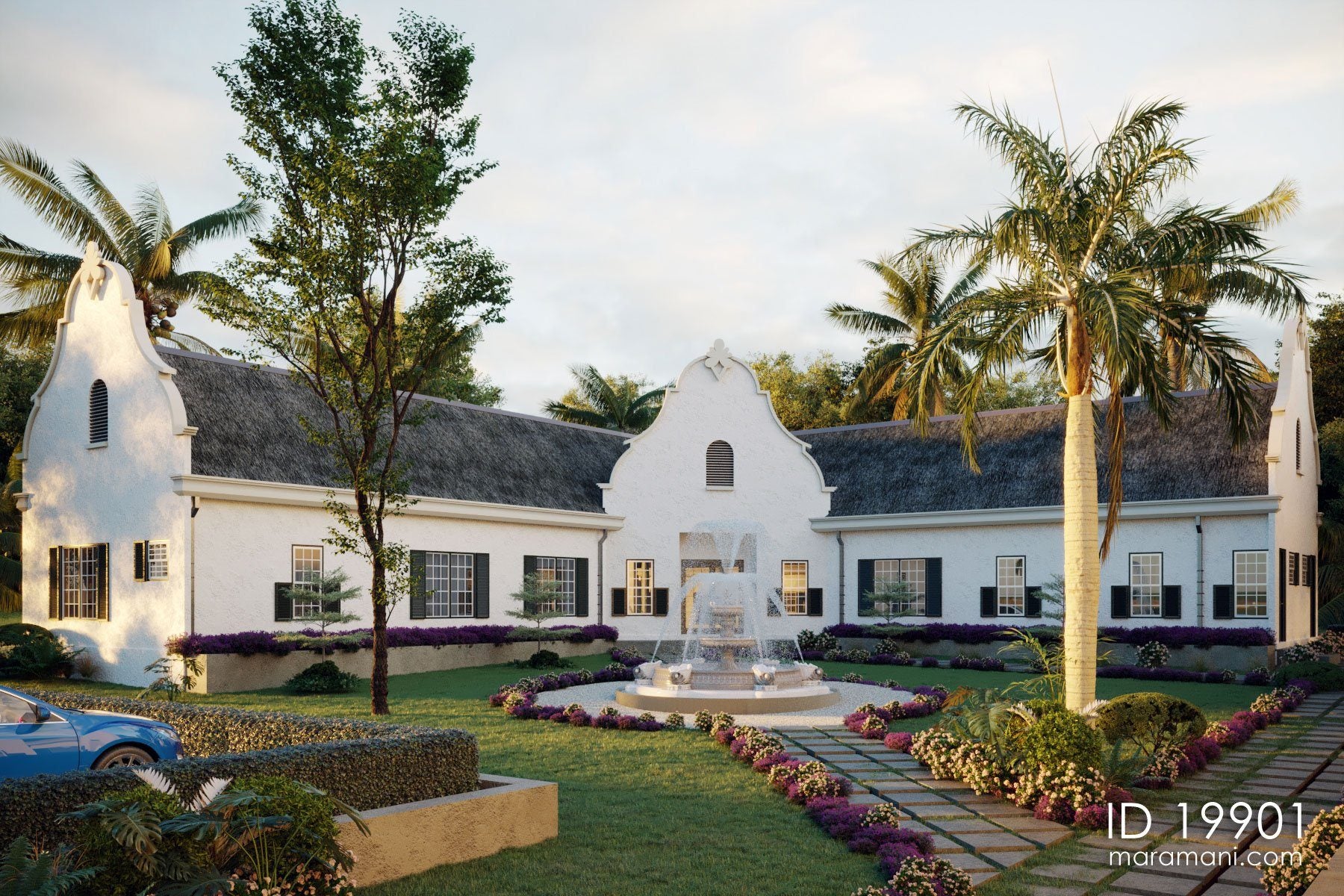

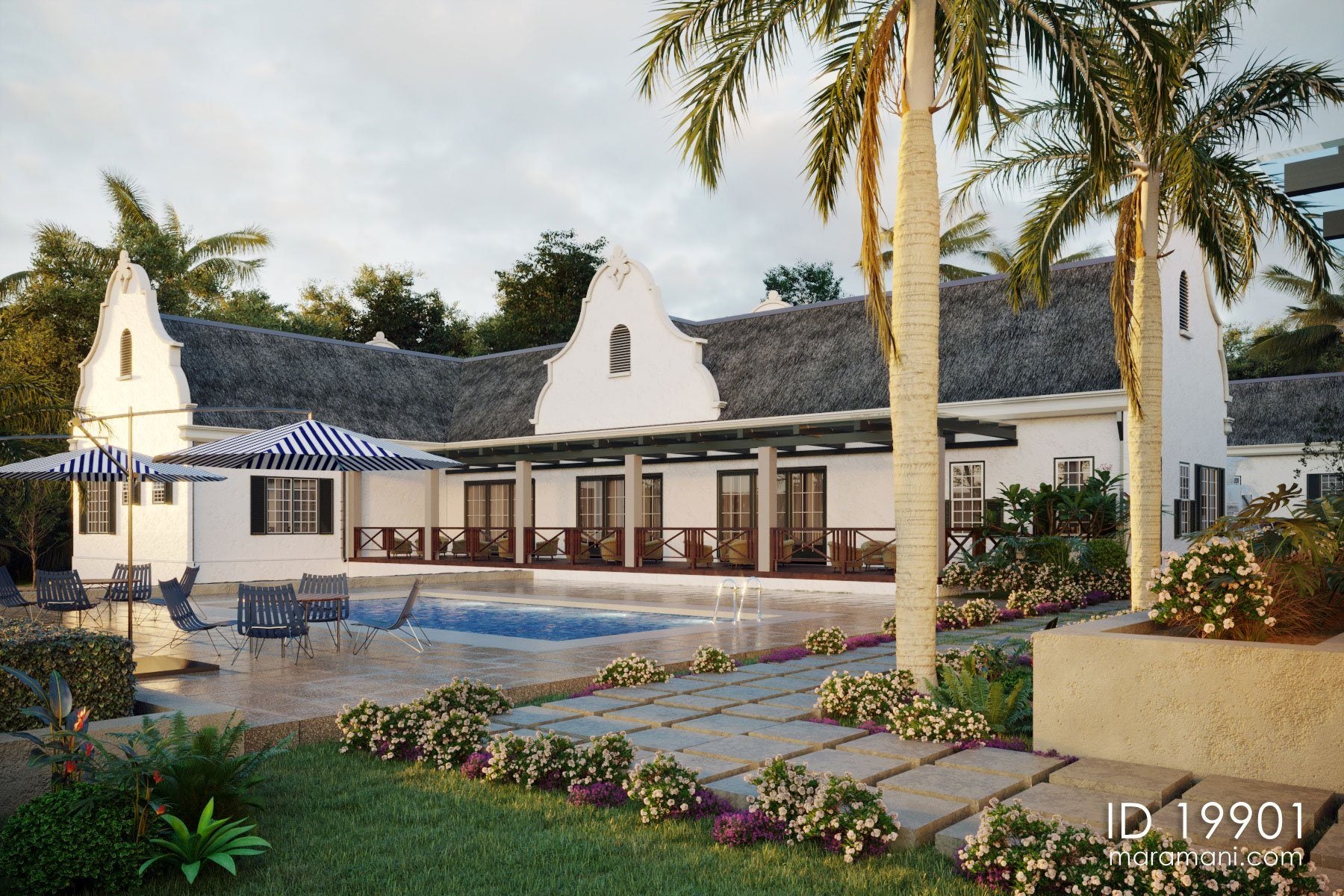

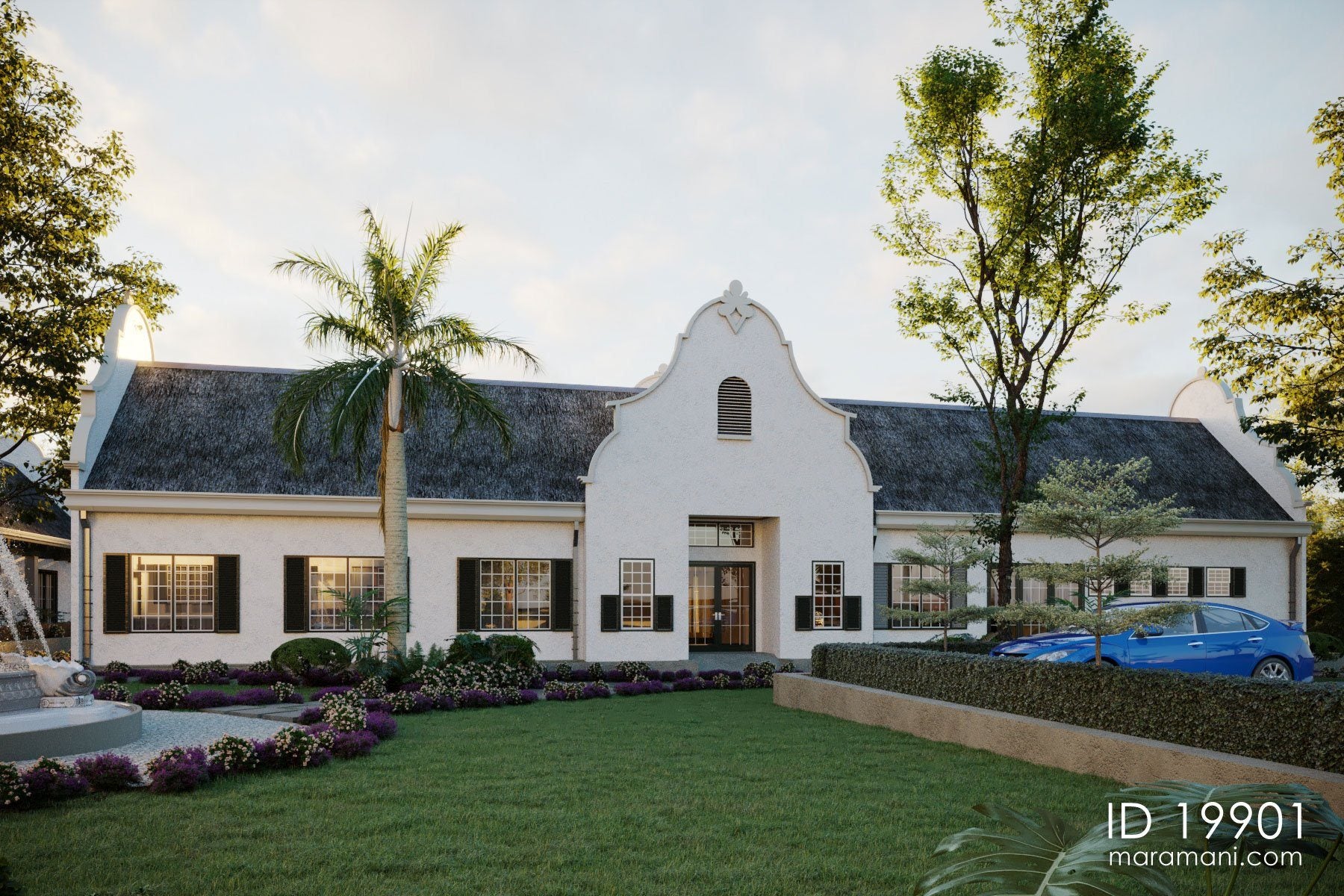

New Cape Dutch house-style plan. This cape dutch house-style plan offers plenty of extras/amenities within its 1015 square meters, and the plan would work well as a holiday resort. The layout is divided into three Cape Dutch-style buildings, where 1 building is for reception and restaurant while the other 2 buildings are for accommodation. With an inviting entry veranda, The reception and restaurant building has a story to tell and surprises to show you. Once inside the doors open to reveal an open and accessible layout. This reception and restaurant building houses a bar, terrace, restaurant, kitchen, store, Laundry, lobby, gents and ladies washroom, 2 en-suites, conference room, and offices. The accommodation buildings offer a total of 12 en-suites where 4 of which are executive rooms each with a balcony.

Plan Details

Features Drawings List

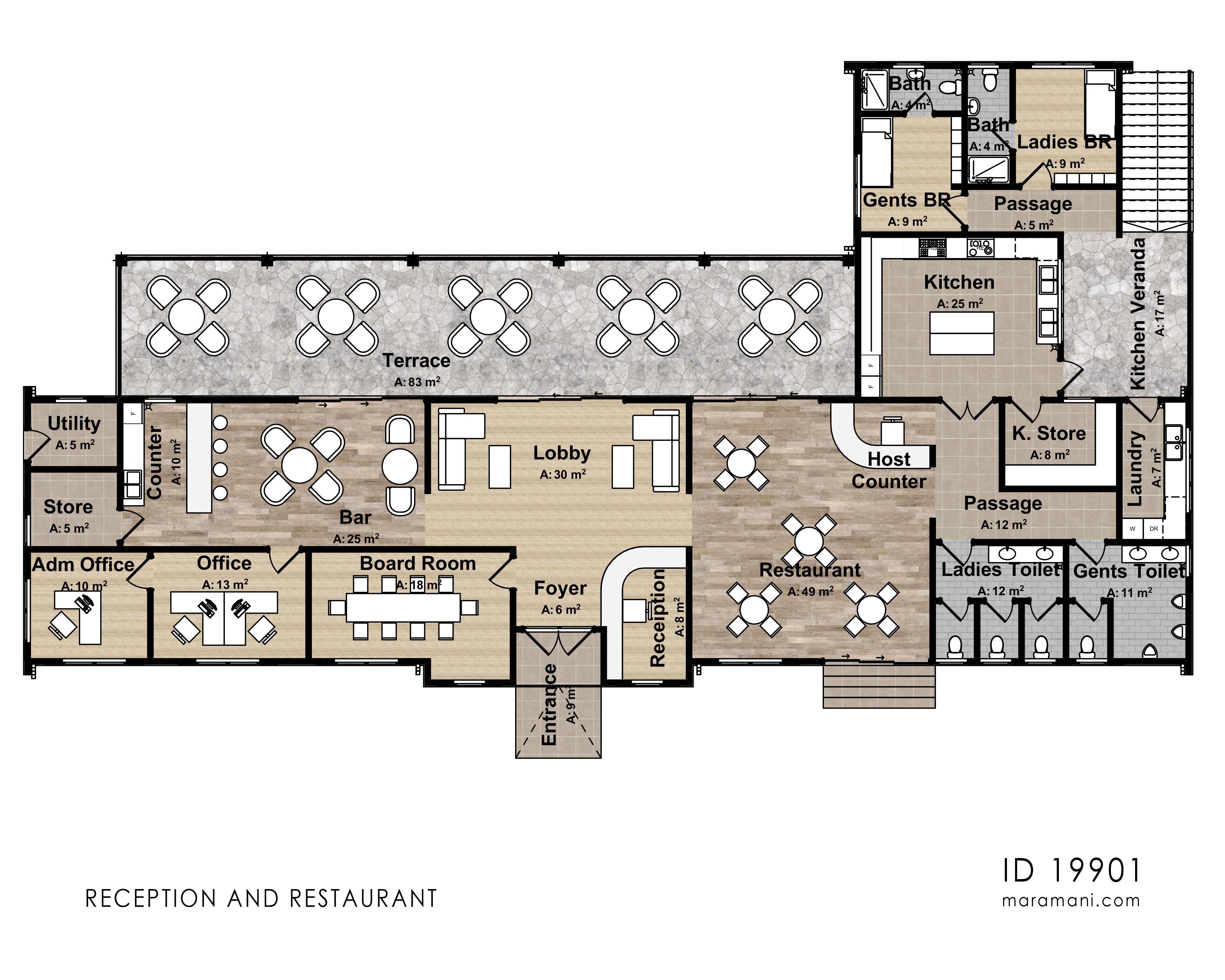

RECEPTION AND RESTAURANT
PLAN SPECIFICATIONS
Stories: 1
Bedrooms: 2
Bathrooms: 4
Area = 413 sqm
Length: 18 m
Width: 33 m
Bedroom: 4

PLAN DETAILS
Features
Stories: 1
Bedrooms: 2
En-suite rooms: 2
Toilets/ bath: 4
Kitchen: 1
veranda: 2
Store : 3
Laundry: 1
Terrace: 1
Bar: 1
Restaurant: 1
Reception: 1
Office: 2
Conference room: 1
Lobby: 1

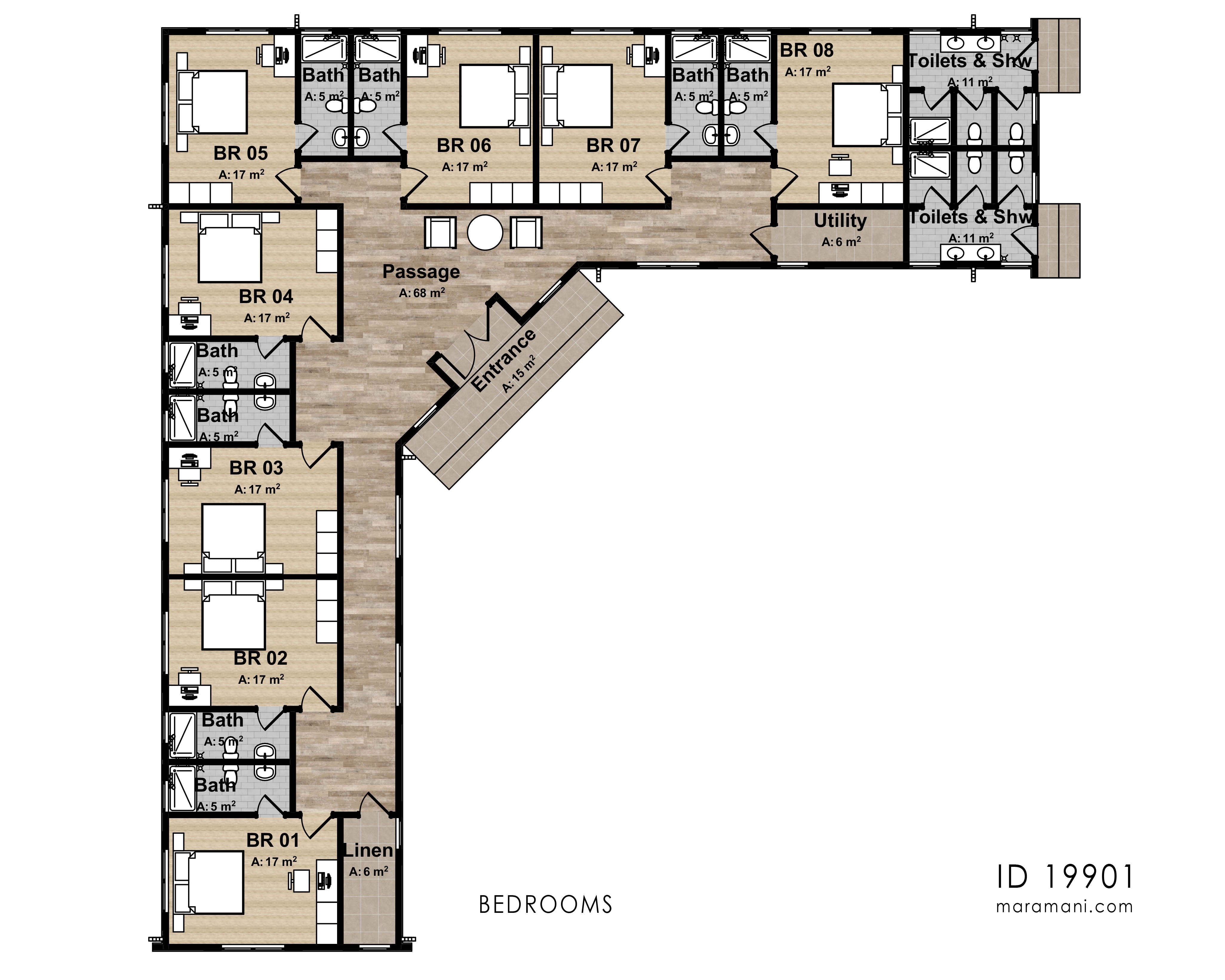

BEDROOMS
PLAN SPECIFICATIONS
Stories: 1
Bedrooms: 8
Bathrooms: 10
Area = 311 sqm
Length: 26 m
Width: 25 m

PLAN DETAILS
Features
Stories: 1
Bedrooms: 8
En-suite rooms: 8
Toilets/ bath: 10
Utility: 1
Linen: 2

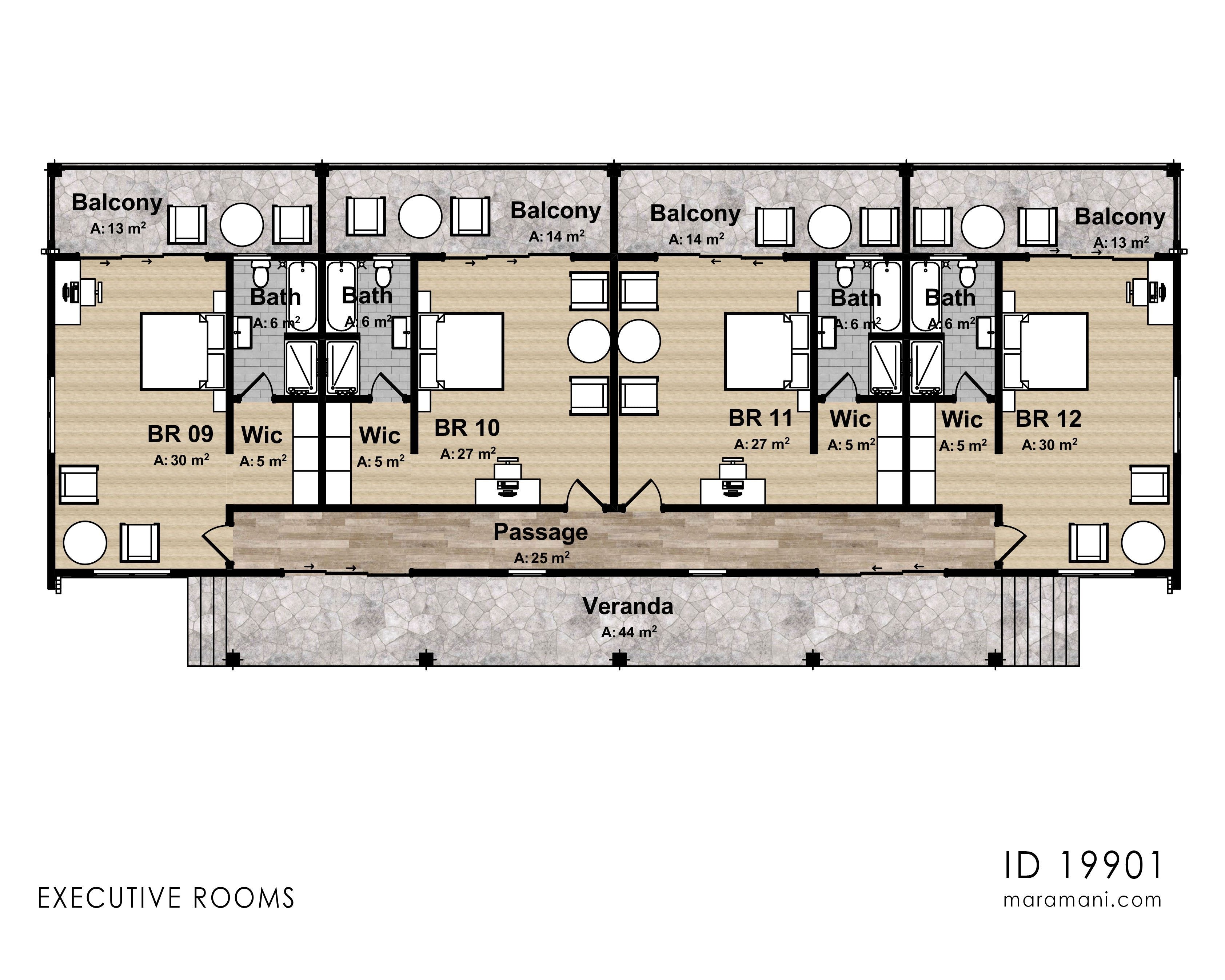

EXECUTIVE ROOMS
PLAN SPECIFICATIONS
Stories: 1
Bedrooms: 4
Bathrooms: 4
Area = 291 sqm
Length: 12 m
Width: 26 m

PLAN DETAILS
Features
Stories: 1
Bedrooms: 4
En-suite rooms: 4
Toilets/ bath: 4
Veranda: 1
Balcony: 4

Foundation Plan
Floor Plan
Roof Plan
Elevations
Sections
Construction Details
Door and Window Schedule
Electrical layout
Drainage Layout
Furniture layout and Floor finishes plan
Site plan
*Drawings delivered in PDF and DWG Format
