Modern 5 Bedroom Mansion Design - ID 25709 - Area 665 sqm

Modern 5 Bedroom Mansion Design - ID 25709

Modern 5 Bedroom Mansion Design - ID 25709

Plan Specifications

2 stories
5 bedrooms
7 baths
665 sq m
Length 20m
Structural Drawings
Width 27m

$1,498.80

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

This Modern 5 Bedroom Mansion Design is sure to be a favorite of its kind. Fans of modern style will love the unique interior and exterior of the house.

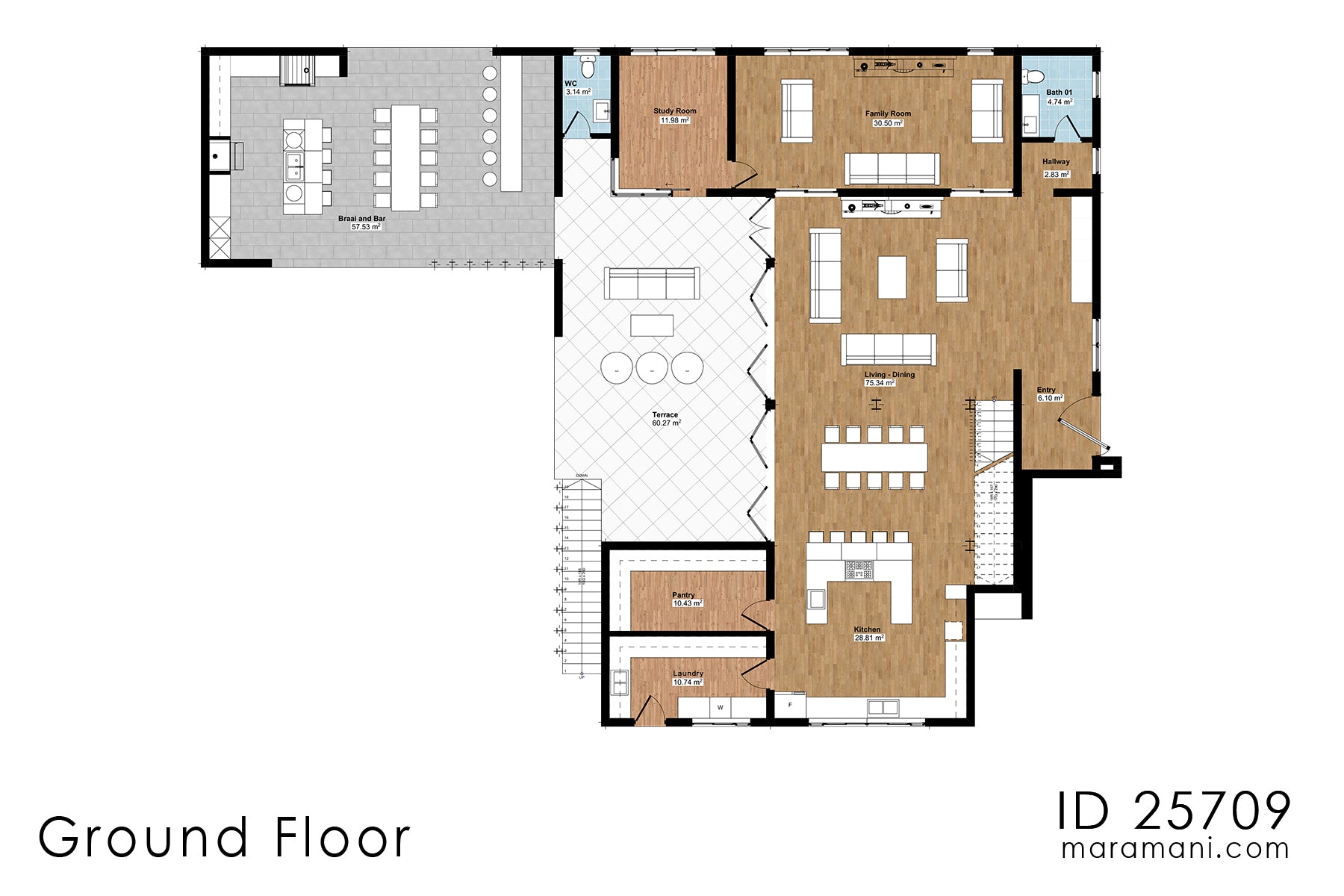

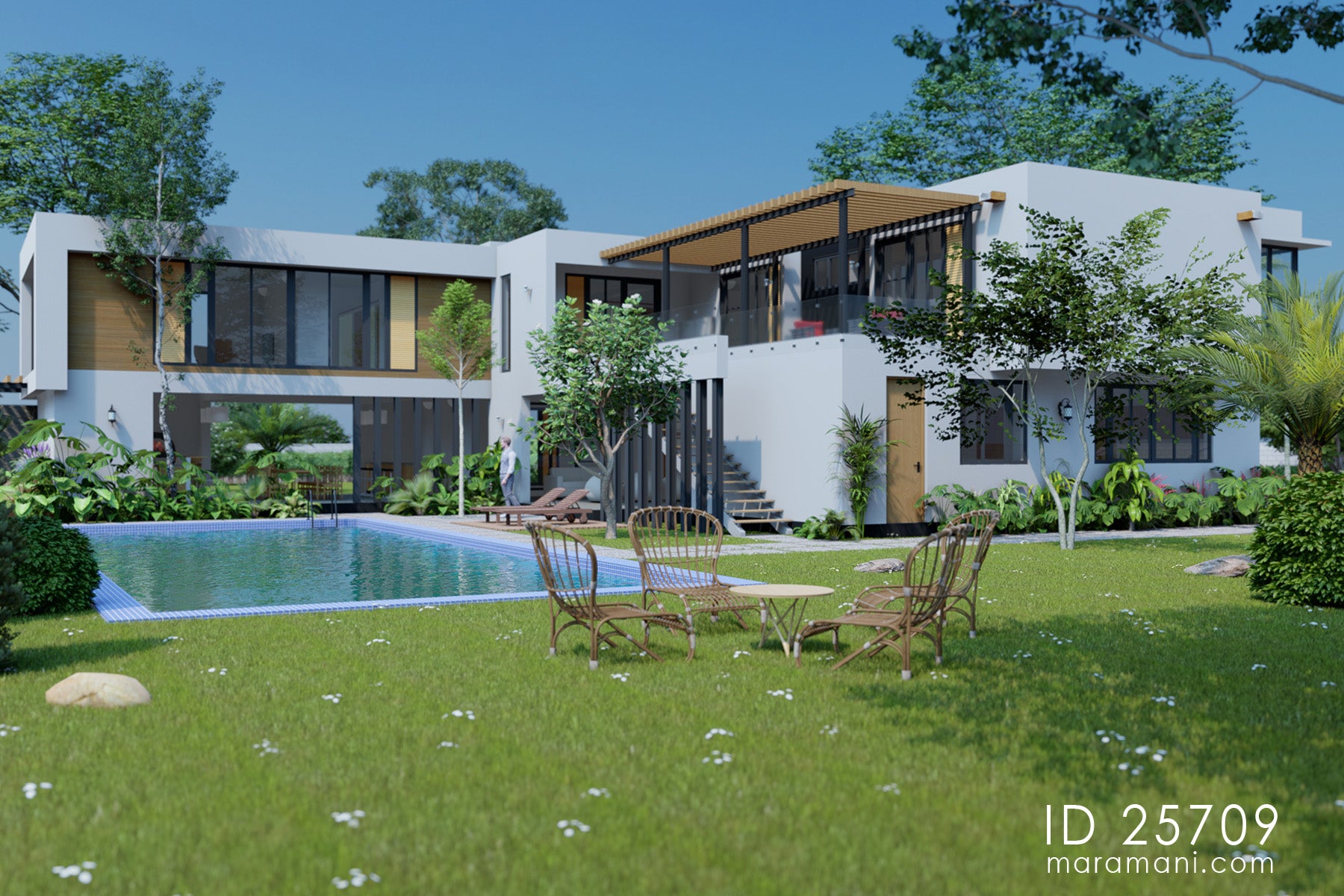

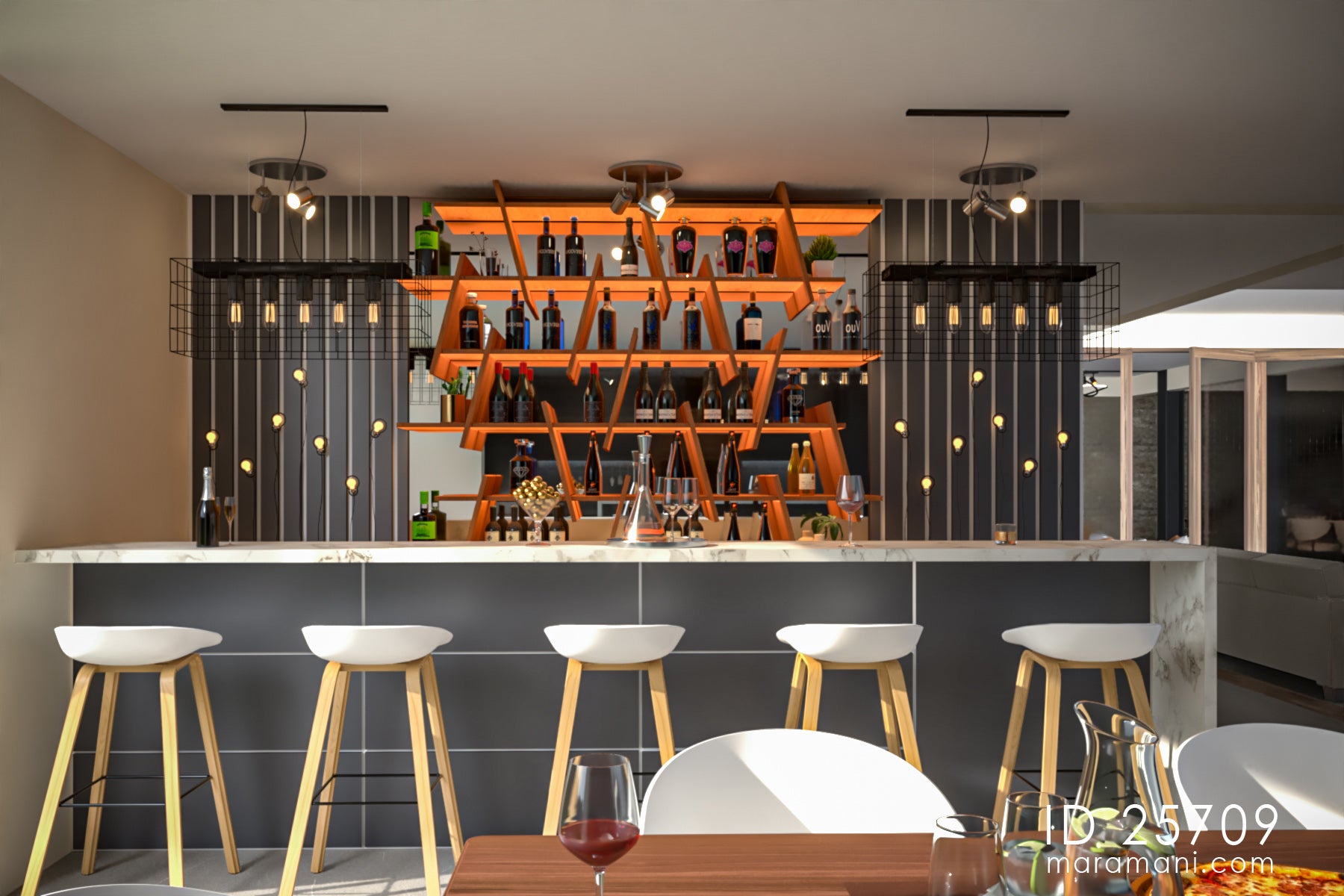

On the ground floor, there is a wide open floor with a kitchen, dining, and living room seamlessly together. These living spaces open up to a large covered terrace. This terrace connects to a bar and braai for relaxed dining looking over the beautiful garden and swimming pool. A study room, family room, and public bathroom are also some of the features on the ground floor.

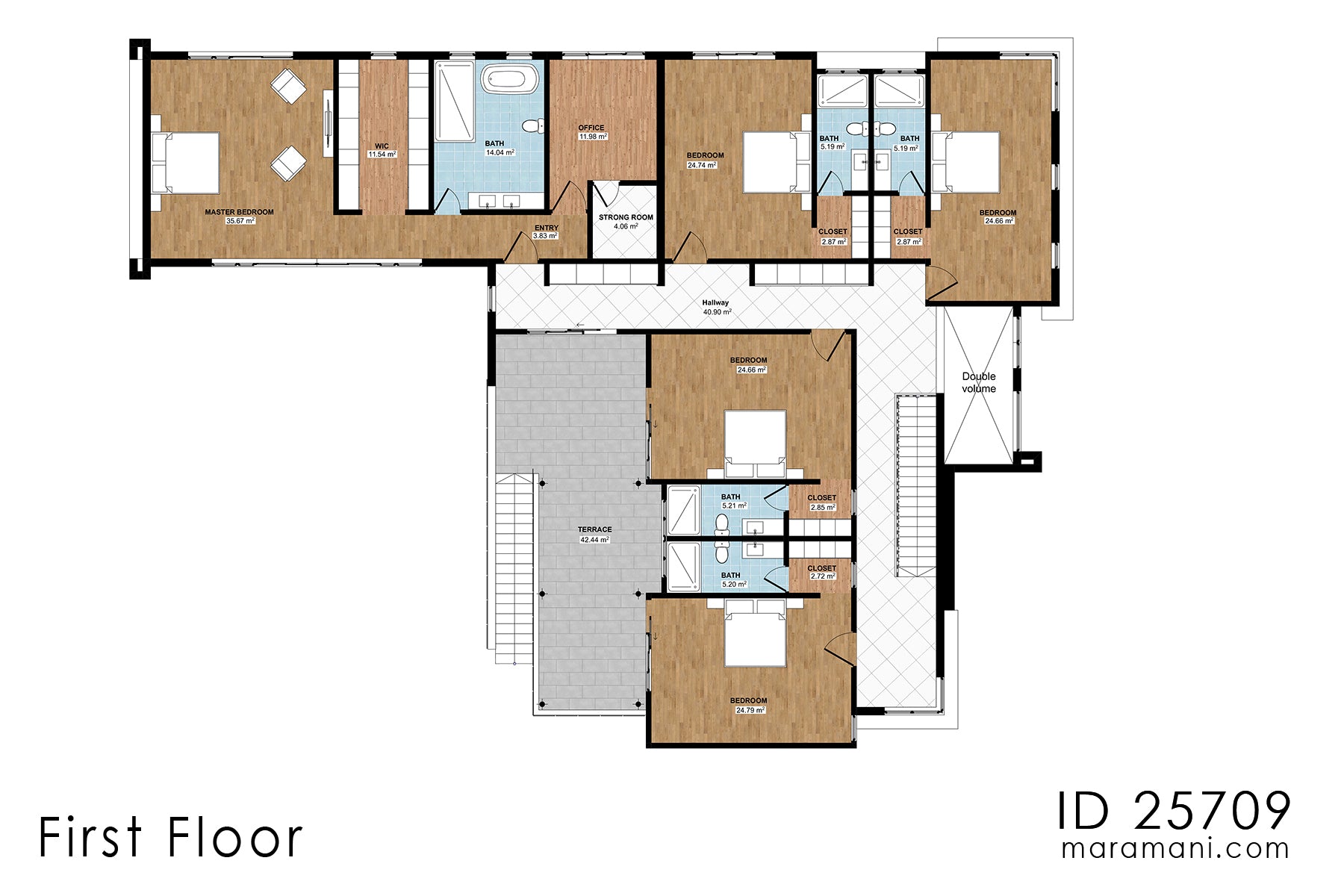

The first floor has 5 en suite rooms. The master bedroom is spacious it has a waking closet, office room, and a strong room. The master bathroom has a double vanity, WC, a walk-in shower, and an elegant tub. The first floor has an open terrace that every room has access to.

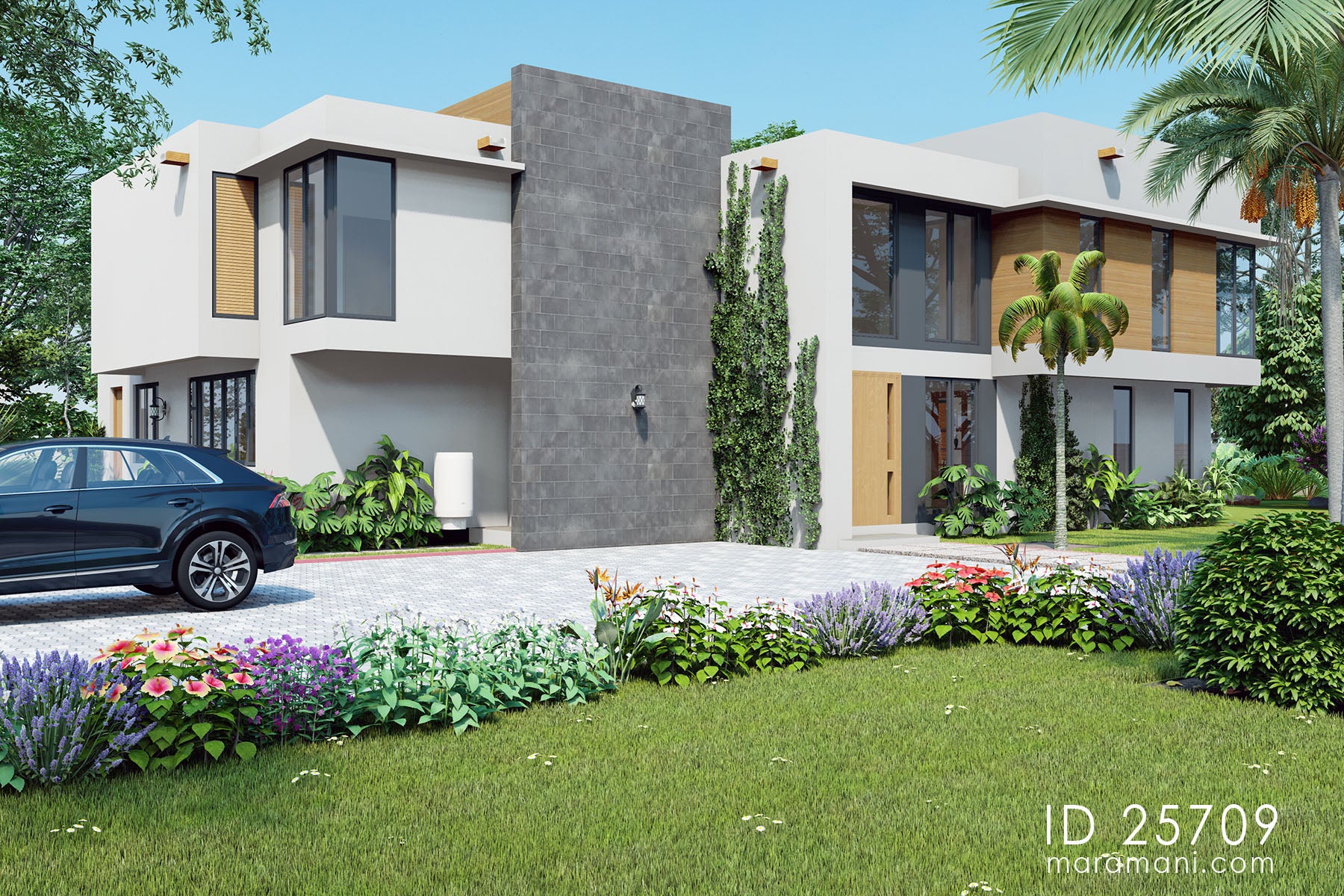

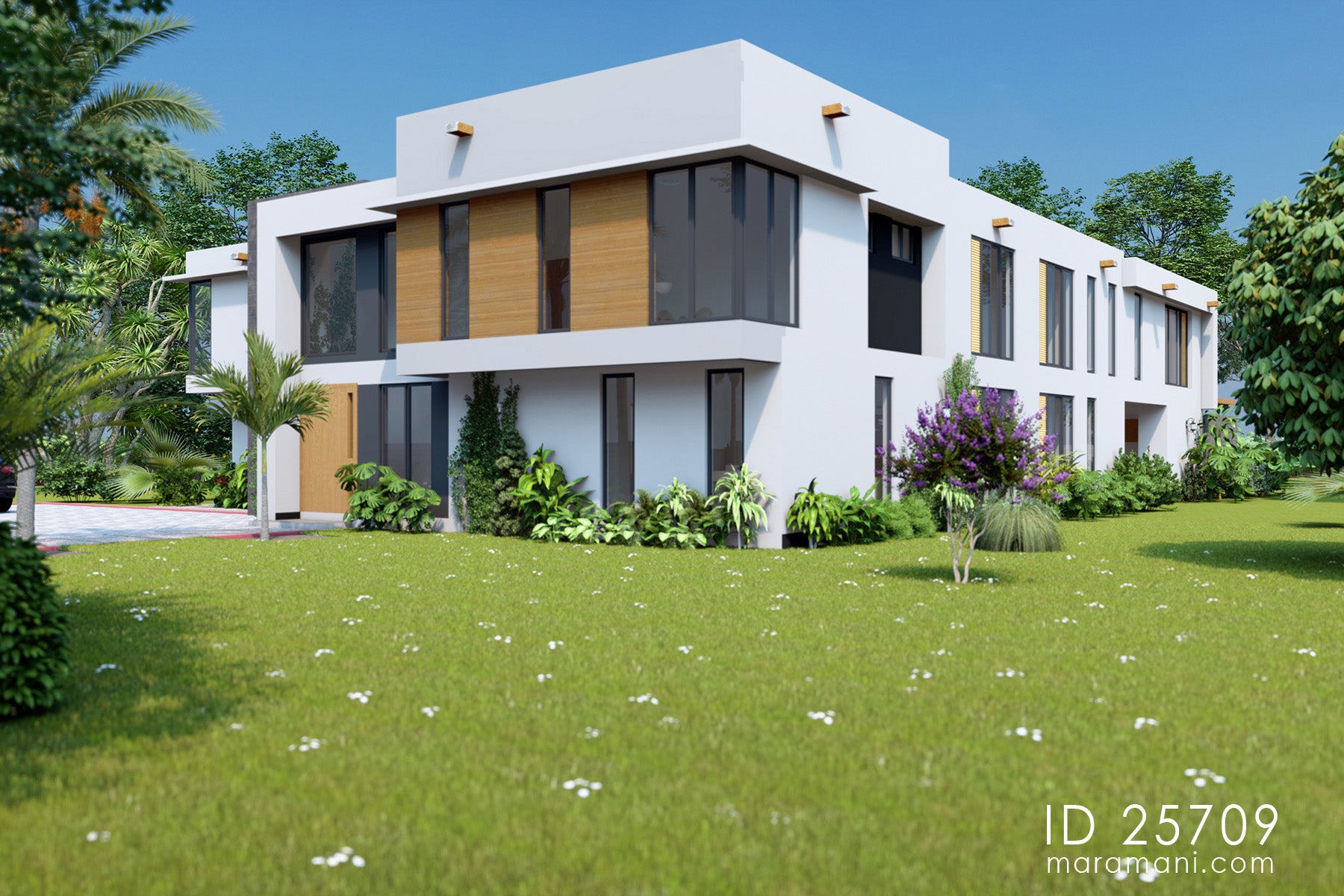

There is a good selection of materials and colours on the facade to make this home a beautiful spot. This 5 bedroom mansion is a full package for families in need of a modern style home.

Plan Details

Features

Drawings List

Stories: 2
Bedroom: 5
Self-contained rooms: 5
Toilets: 7
Living room: 1
Kitchen: 1
Dining room: 1
Pantry: 1
Open Terrace: 1
Covered Terrace: 1
Verandah: 2
Bar and Braai: 1
Family room: 1
Strong room: 1
Office/ Study: 2
Laundry: 1

Foundation Plan
Floor Plan
Roof Plan
Sections
Elevations
Construction Details
Door and Window Schedule
Floor finishes and furniture layout plan
Schematic electrical layout
Schematic clean water supply layout
Schematic foul water drainage
Septic tank and Soak away pit
3D Exterior and Interior Renders

Structural Drawings

*Drawings delivered in PDF and DWG Format
