Modern 4 Bedroom House - ID 34502

Plan Specifications

  • 3 stories

  • 4 bedrooms

  • 5 baths

  • 399 sq m

  • Length 17m

  • Structural Drawings

  • Width 13m


To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

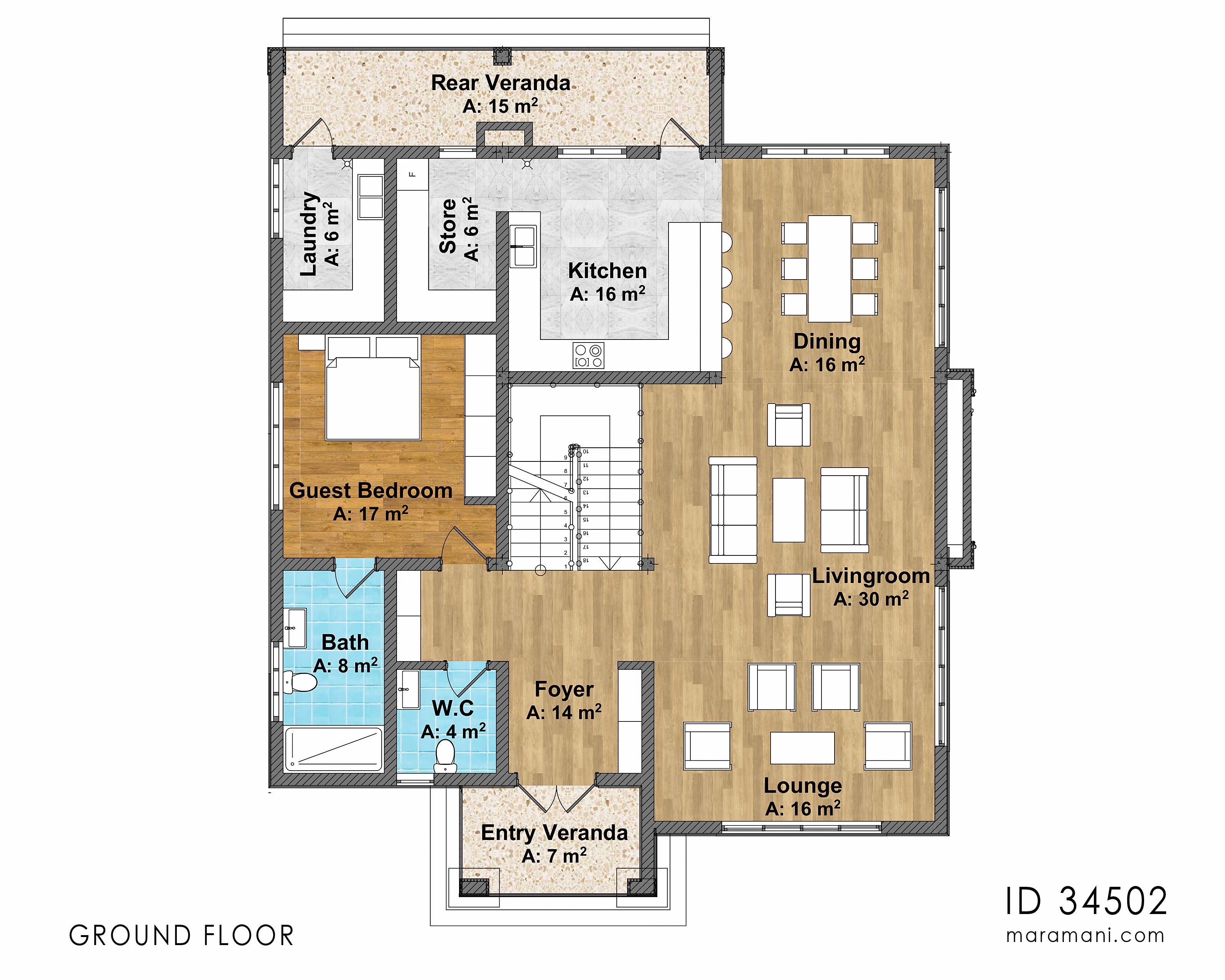

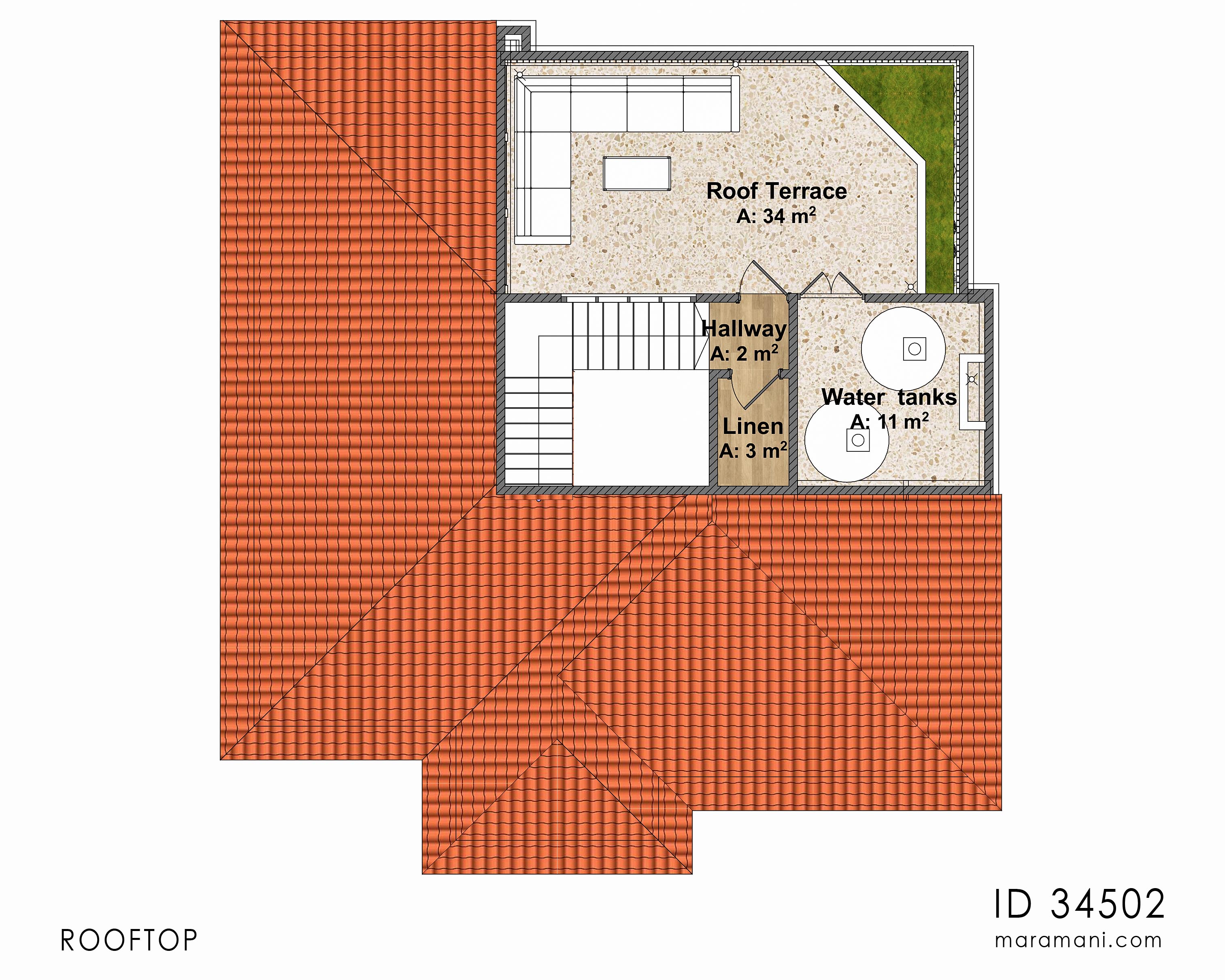

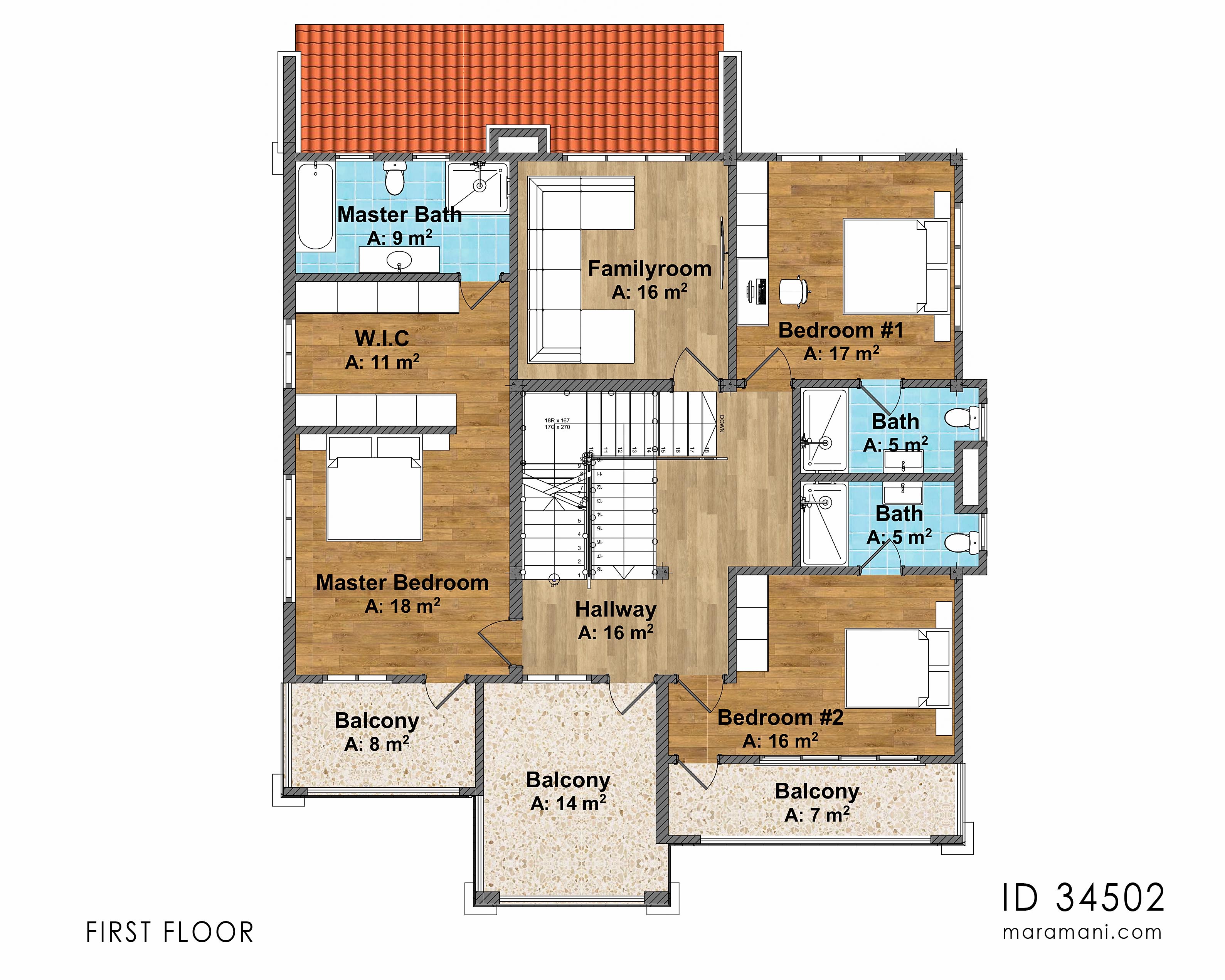

Take a walk through this timeless piece of architecture that works in any environment. Strong clean lines and a simple geometry speak to the modern influence. With 399 square meters, this modern 4 bedroom house has 5 bathrooms and is fully loaded with a wonderful open floor plan design. Each of the four bedrooms has its full bathroom. The main floor provides you with an en-suite guest room, public toilet, lounge, living room, dining, store, laundry, a kitchen with island large enough for four people to eat, and opens into the rear veranda. On the first floor, a catwalk looks down into the foyer. On the right side sit two en-suite bedrooms one with a balcony and a family room. With plenty of privacy on the left side, you'll find the master bedroom with a private balcony, a walk-in closet, and a master bath. The second floor contains a linen room, water tanks room, and roof terrace.

Plan Details

Features Drawings List

Stories: 3
Bedrooms: 4
En-suite rooms: 4
Toilets/ bath: 5
Livingroom: 1
Lounge: 1
Familyroom: 1
Dining: 1
Kitchen: 1
Store: 1
Laundry: 1
Linen: 1
Veranda: 2
Balcony : 3
Roof Terrace: 1

Foundation Plan
Floor Plan
Roof Plan
Construction Details
Door and Window Schedule
Schematic Electrical layout
Schematic water supply and Drainage Layout
Furniture layout and Floor Finish

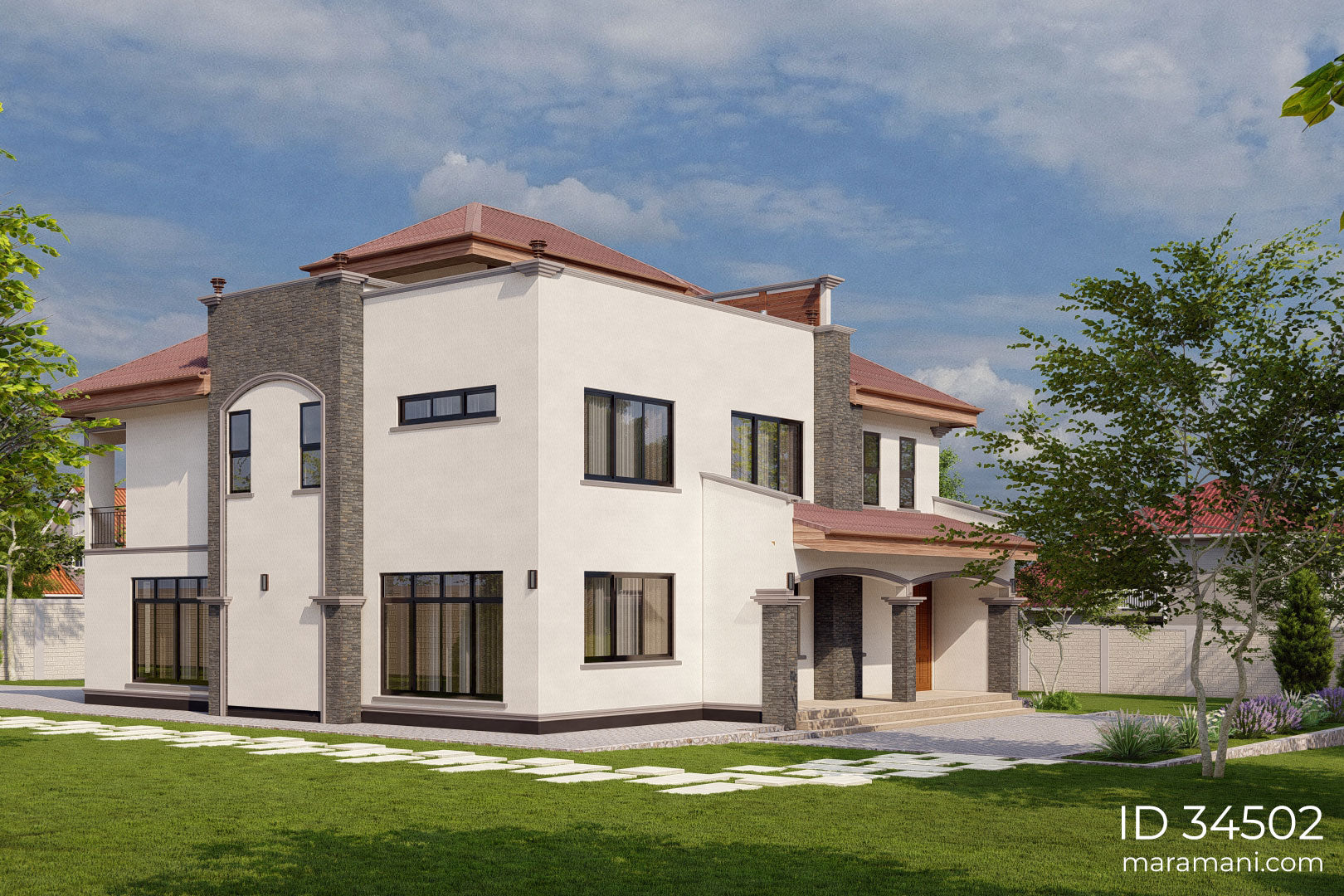

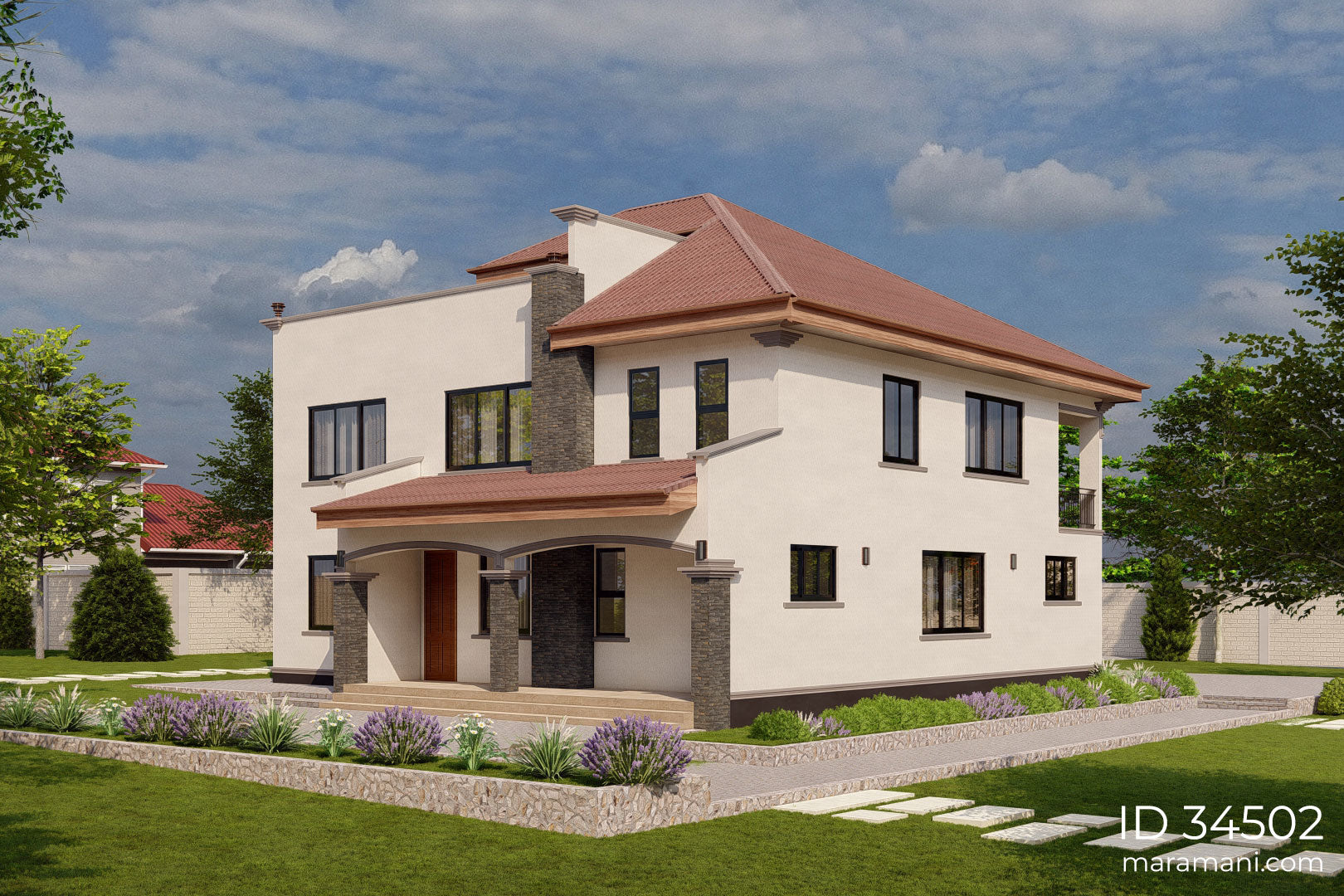

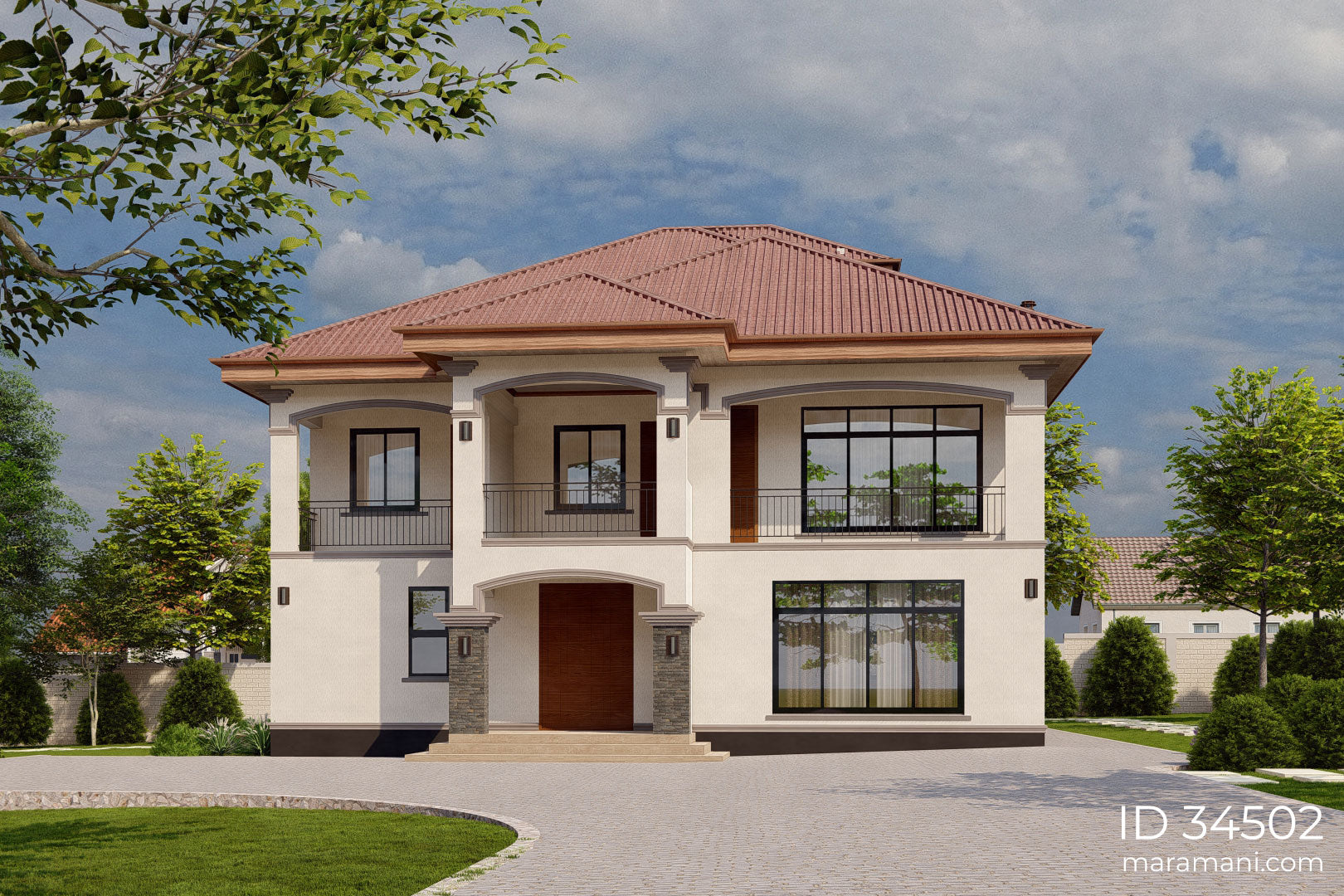

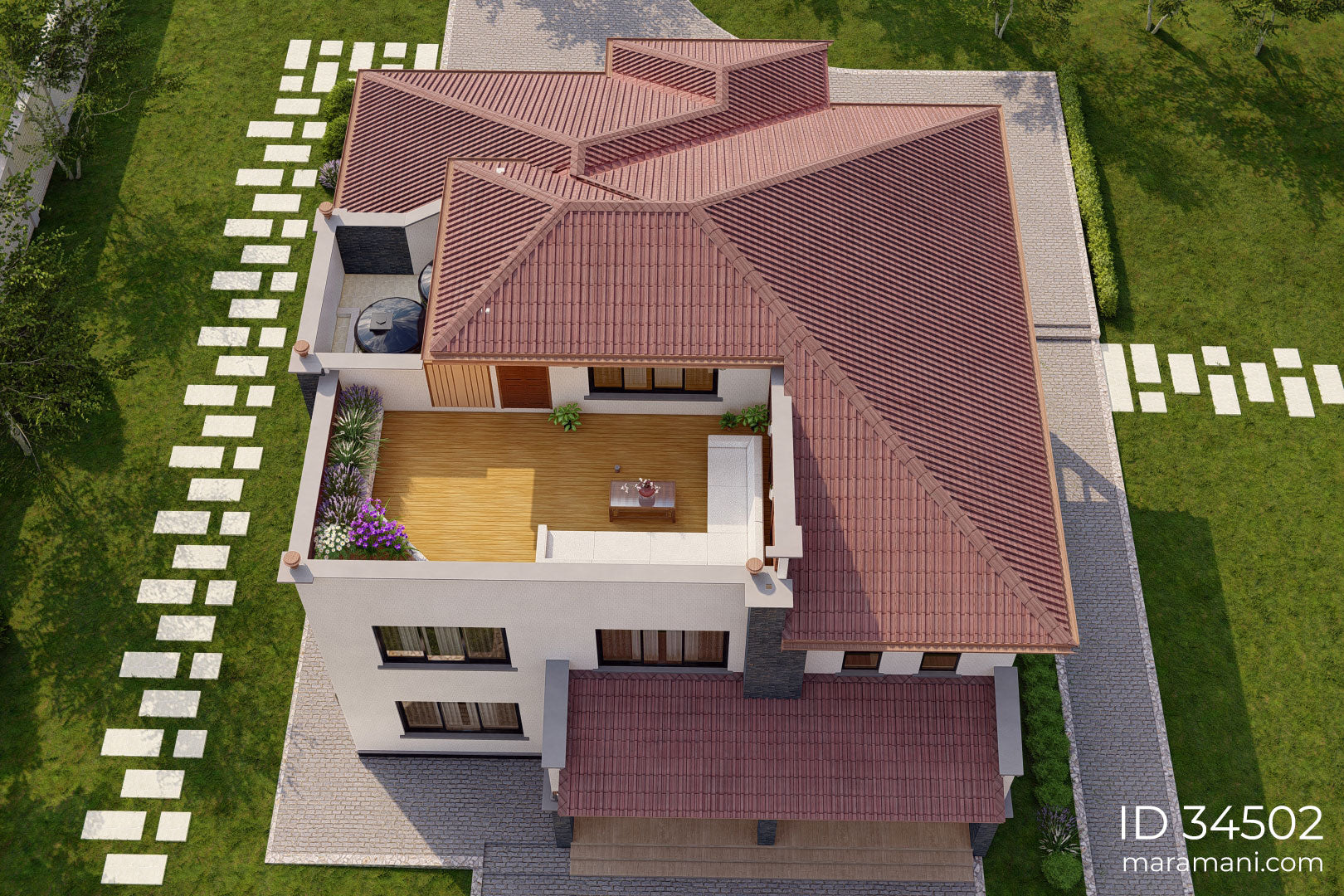

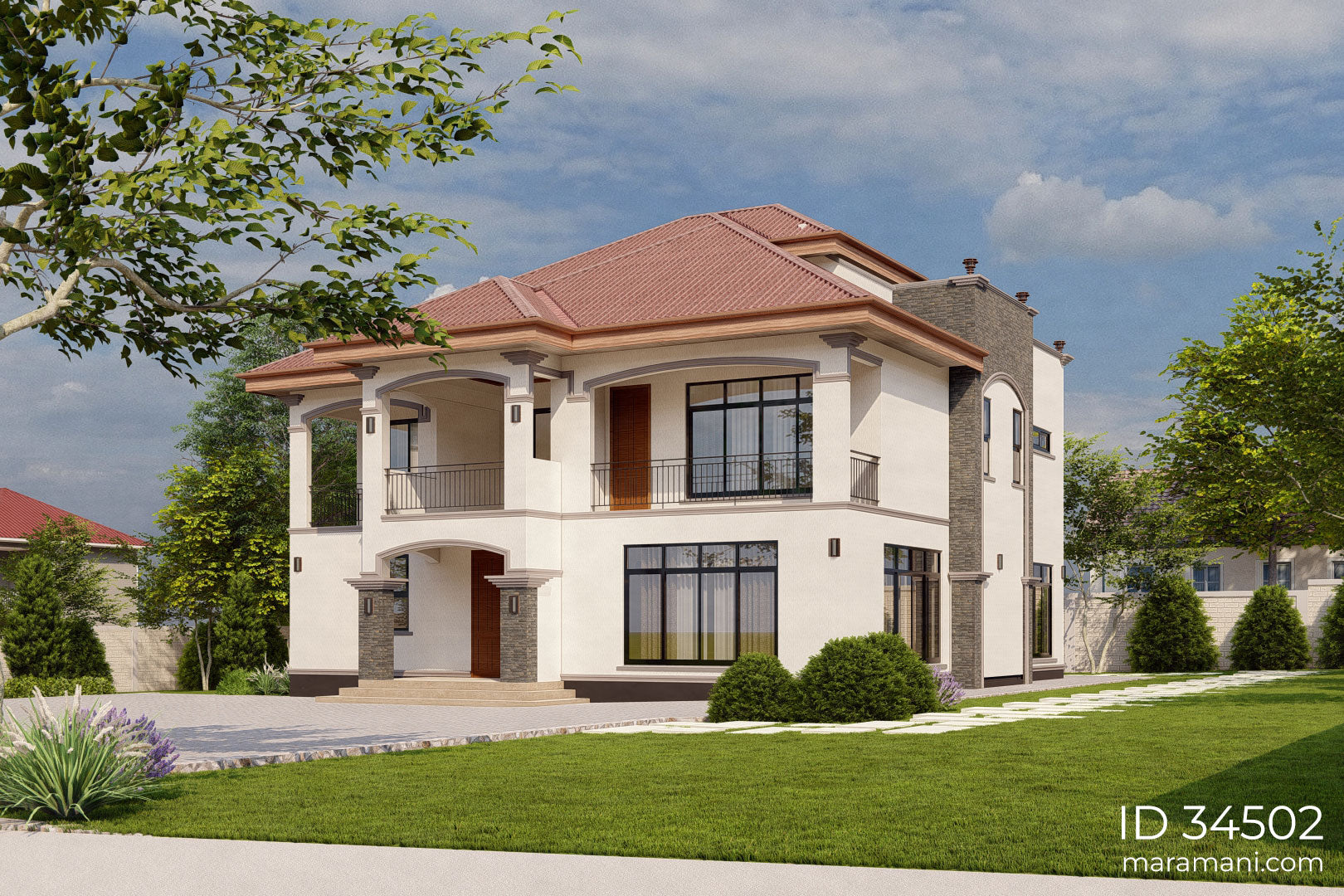

3D Perspectives
Structural Drawings

*Drawings delivered in PDF and DWG Format
