Hostel rooms and kitchen - ID 12217

Plan Specifications

  • 1 story

  • 2 baths

  • 2 bedrooms

  • 57 sq m

  • Length 9m

  • Width 8m

$349.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

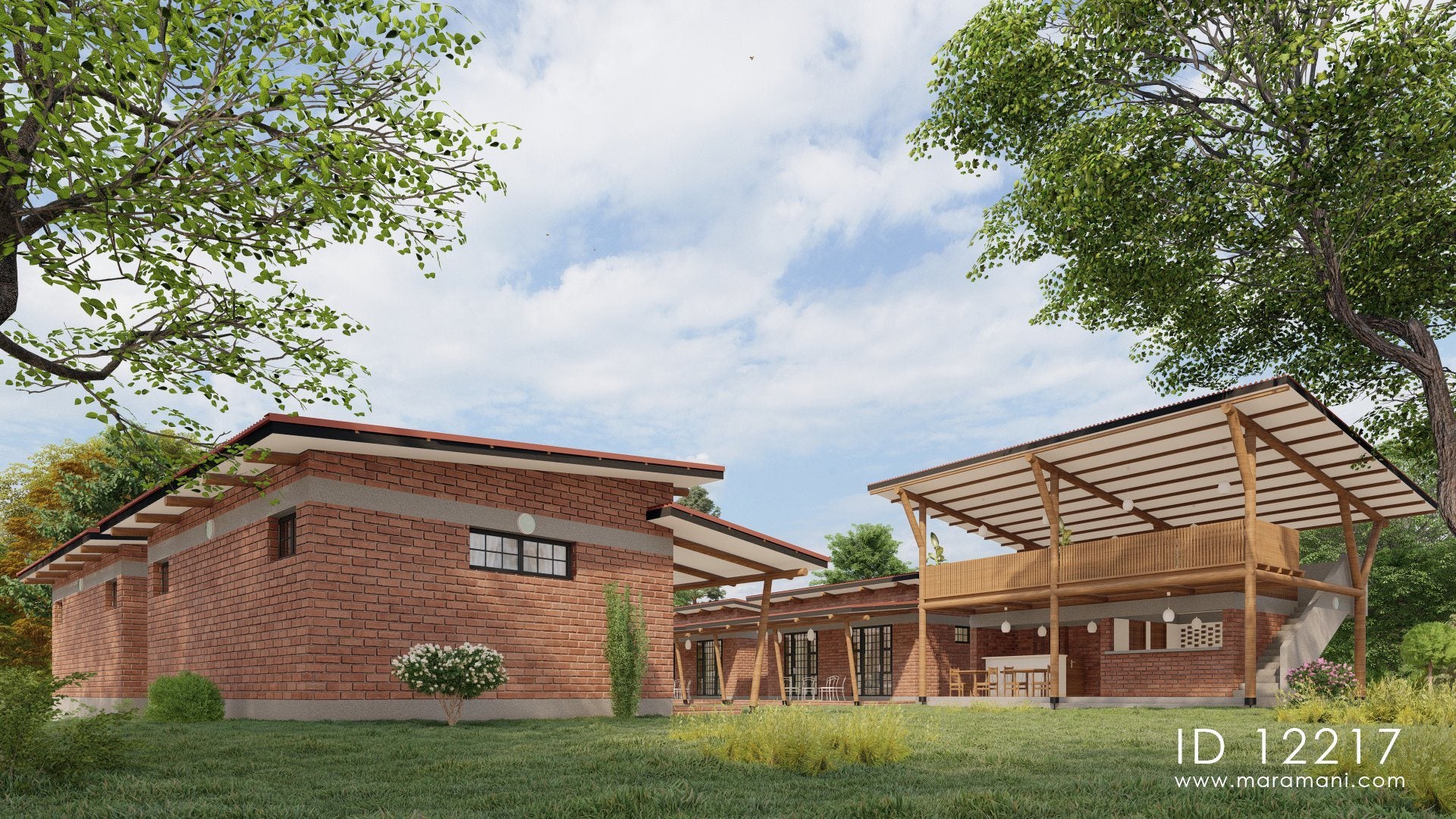

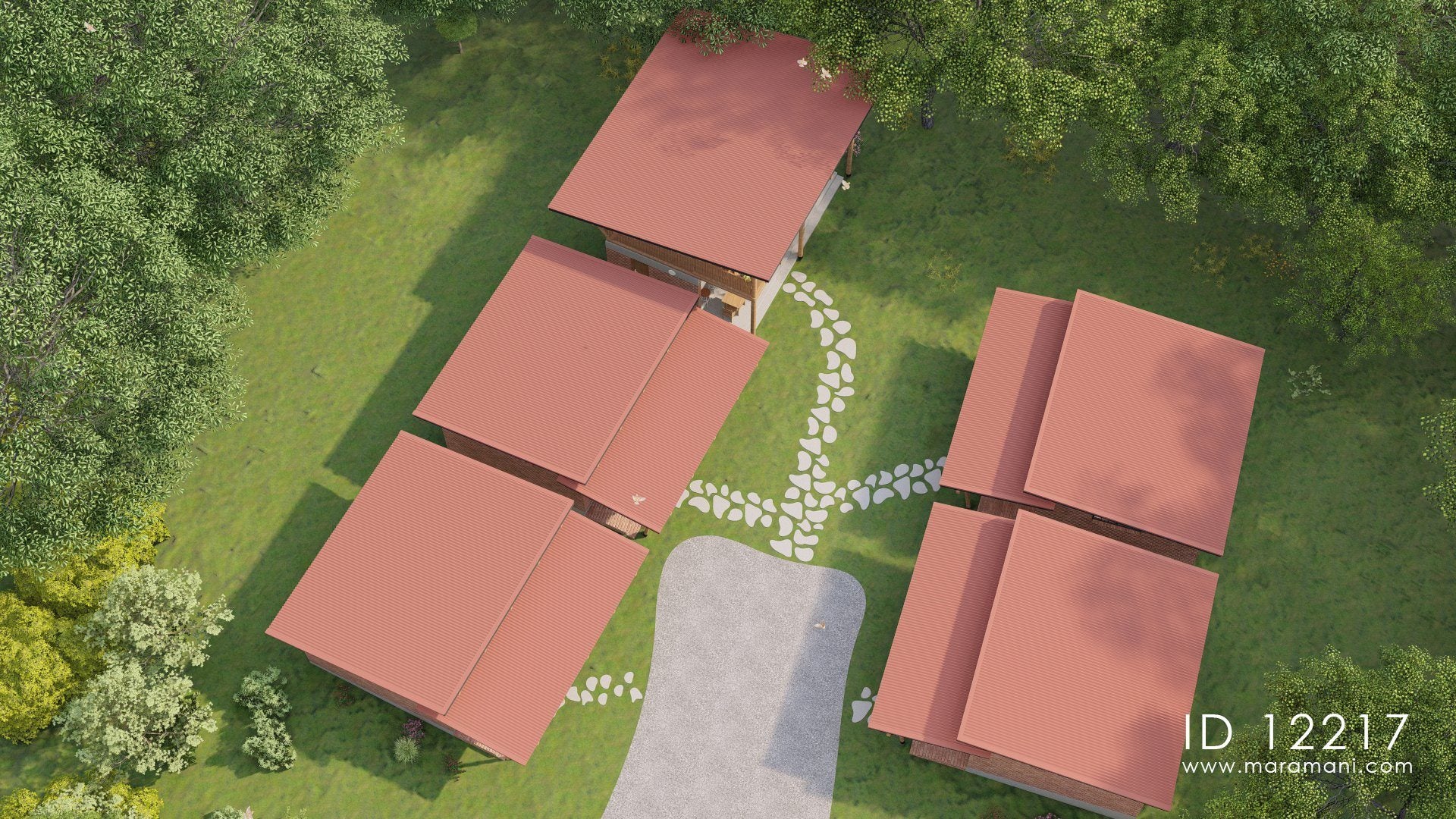

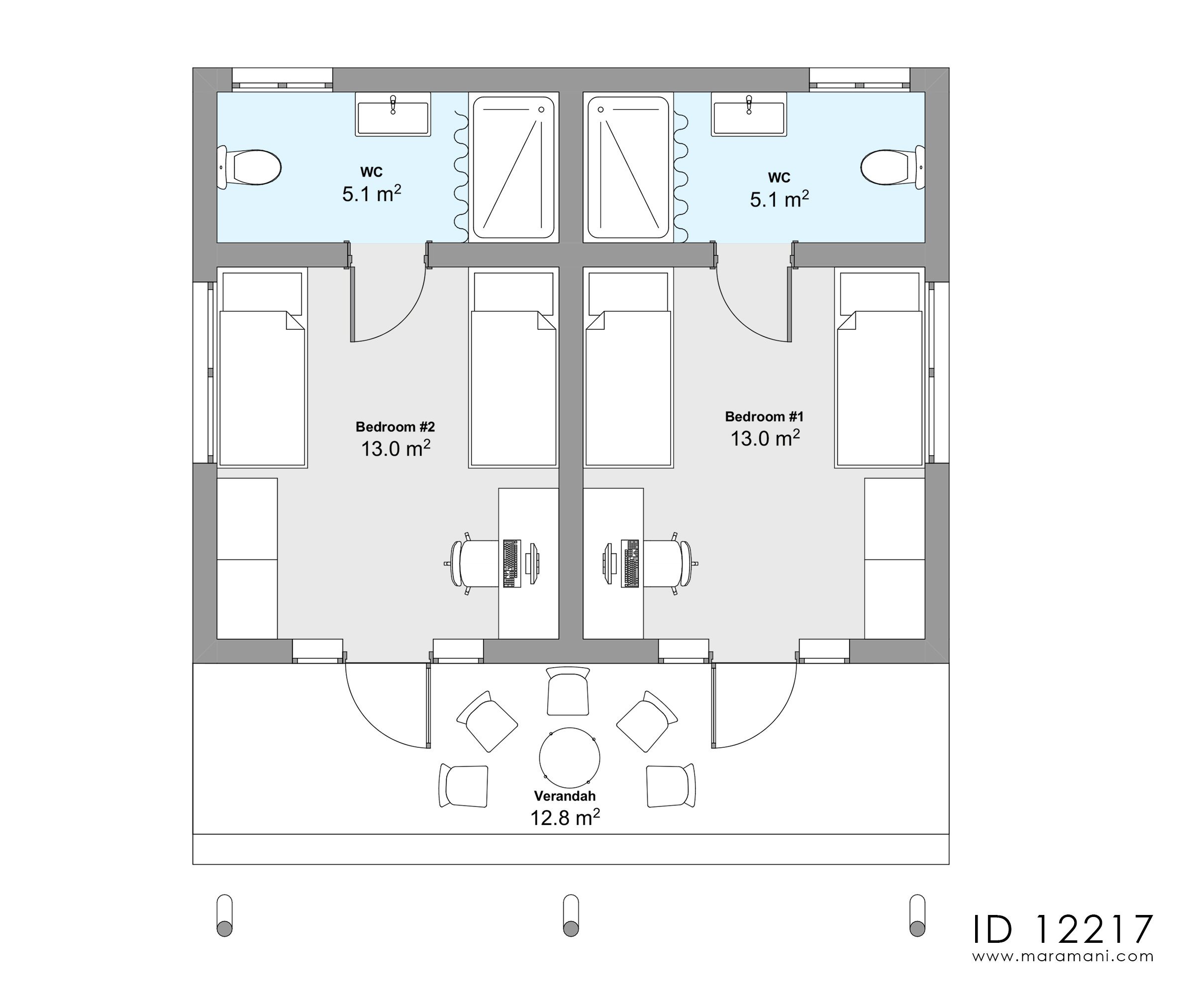

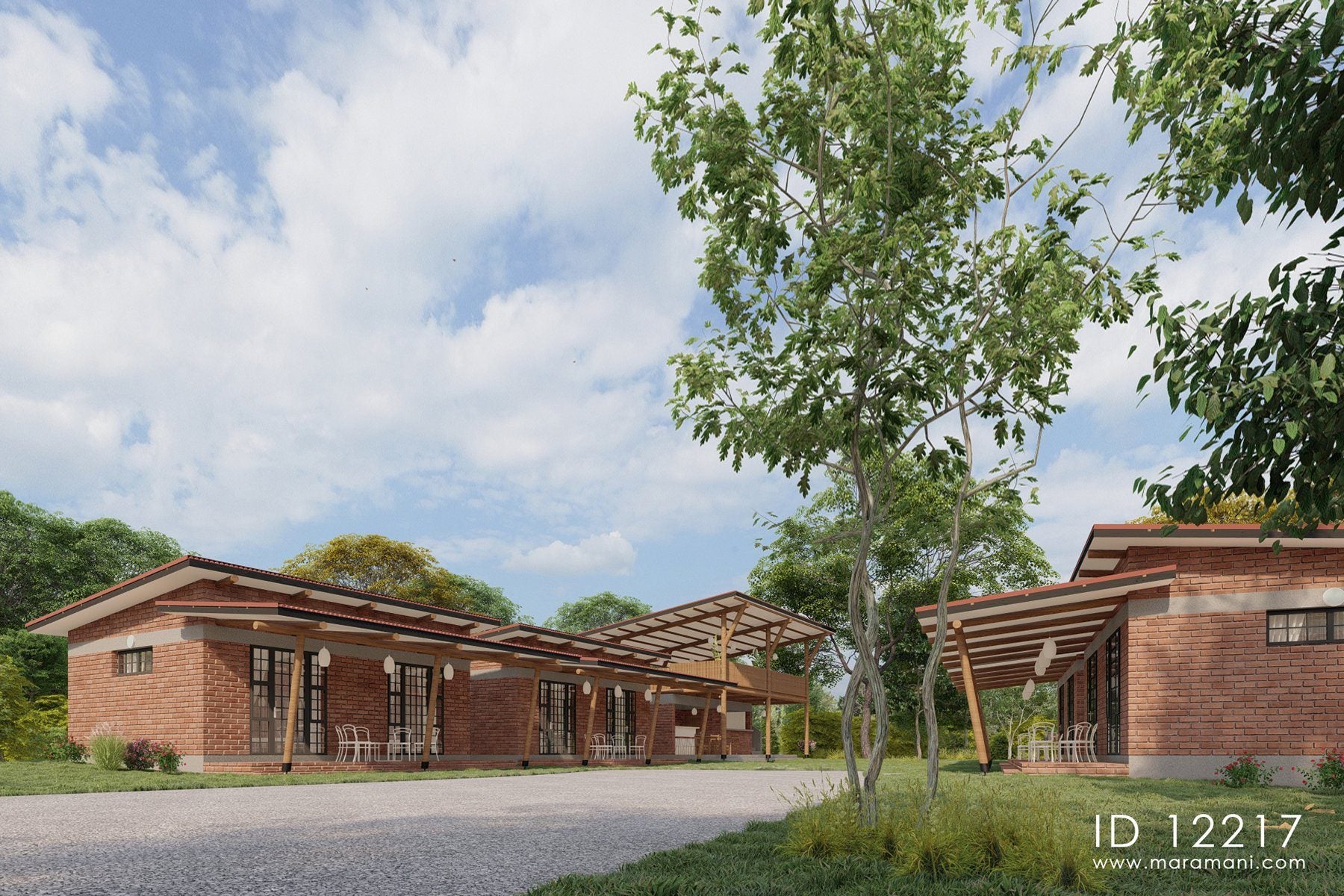

A very simple plan. This 2 bedroom plan is designed to be built in a modular fashion whereby you can keep adding new units as per requirements and as per site limitations. Each bedroom has 2 beds and a bathroom with WC, shower and hand wash basin. The plan can be used flexibly for hostels, volunteer housing, hotels, or staff quarters. It all depends on your requirements. The structure is natural burnt bricks giving it an external finishing which will never require any maintenance.

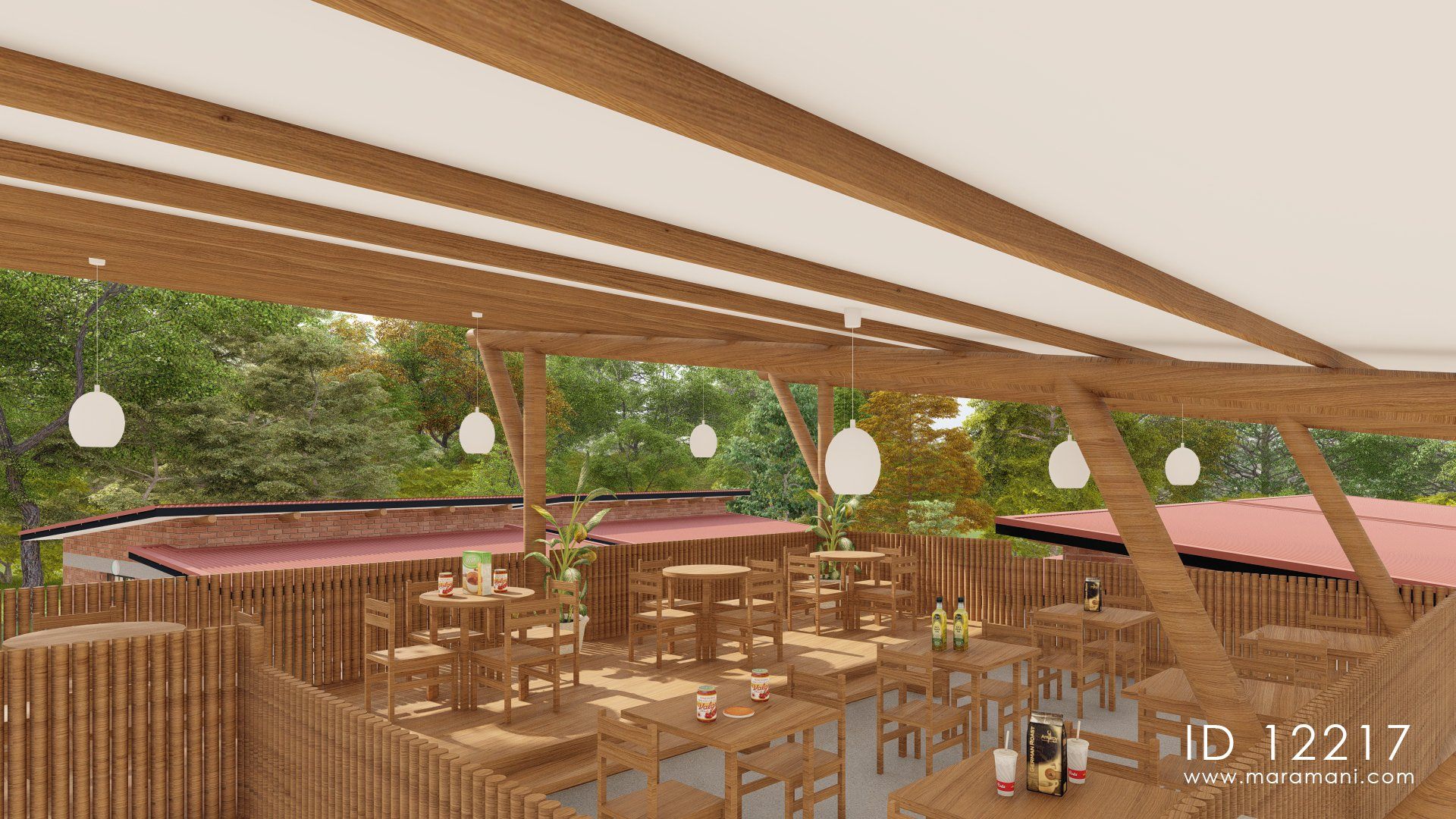

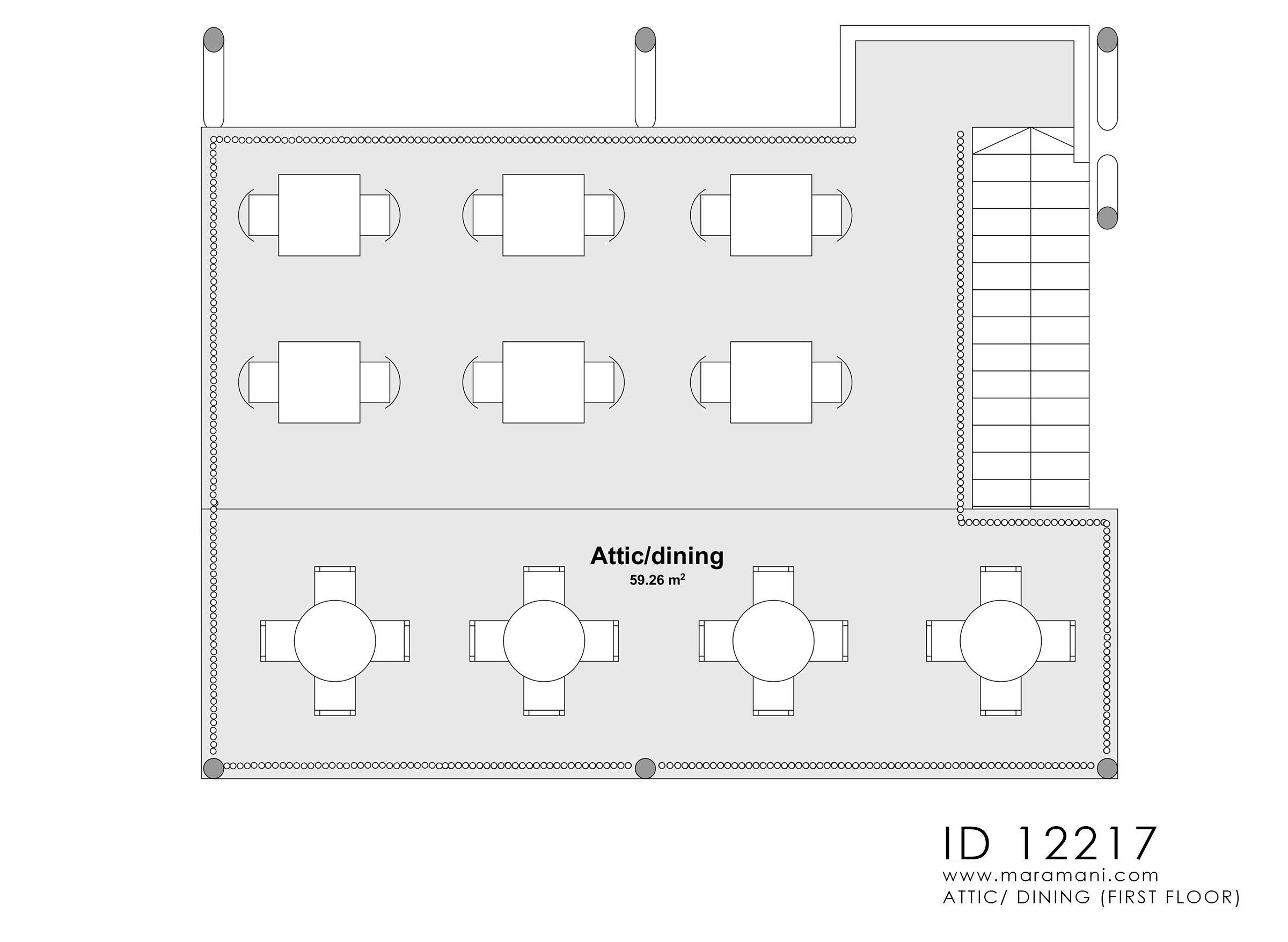

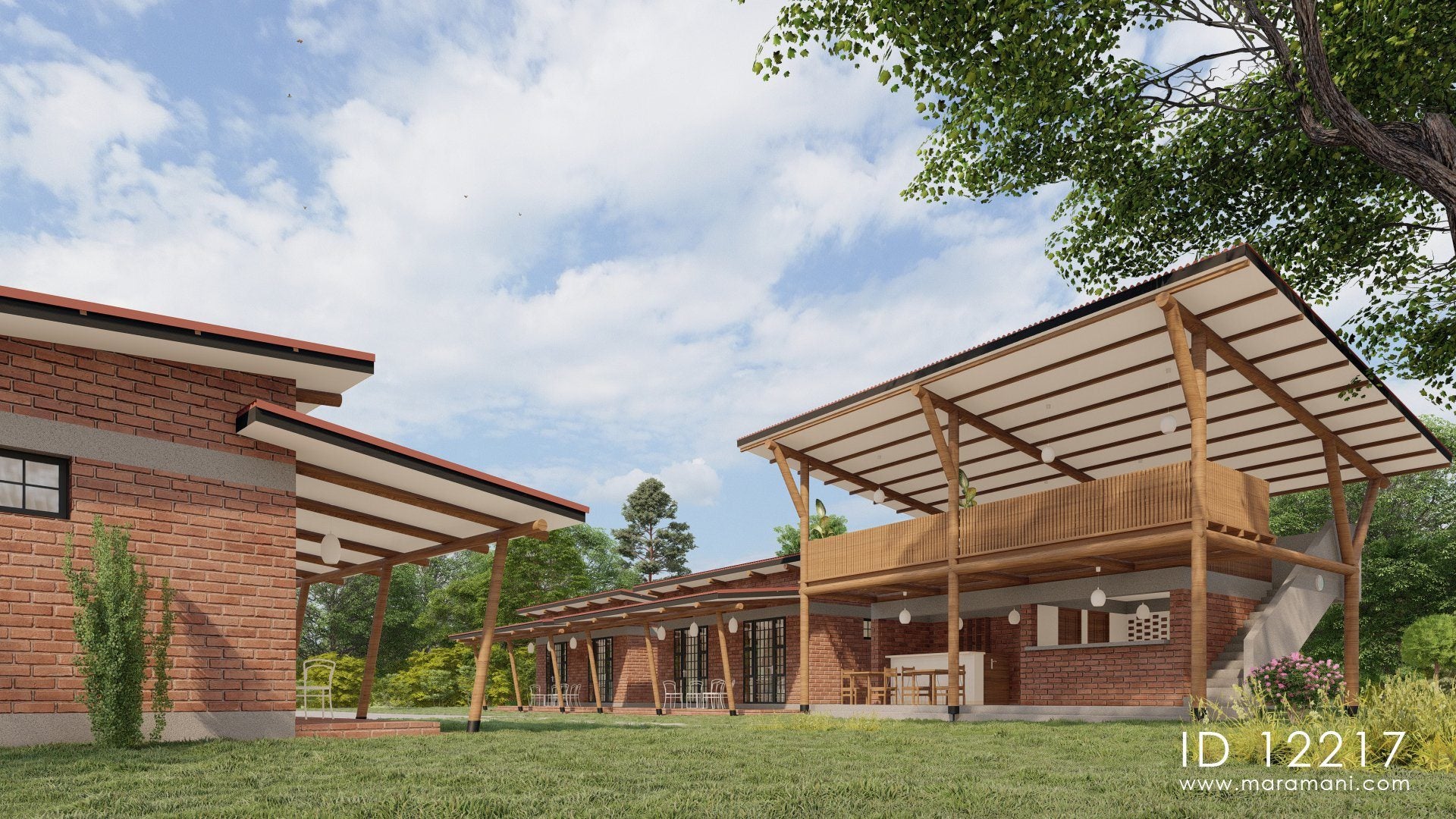

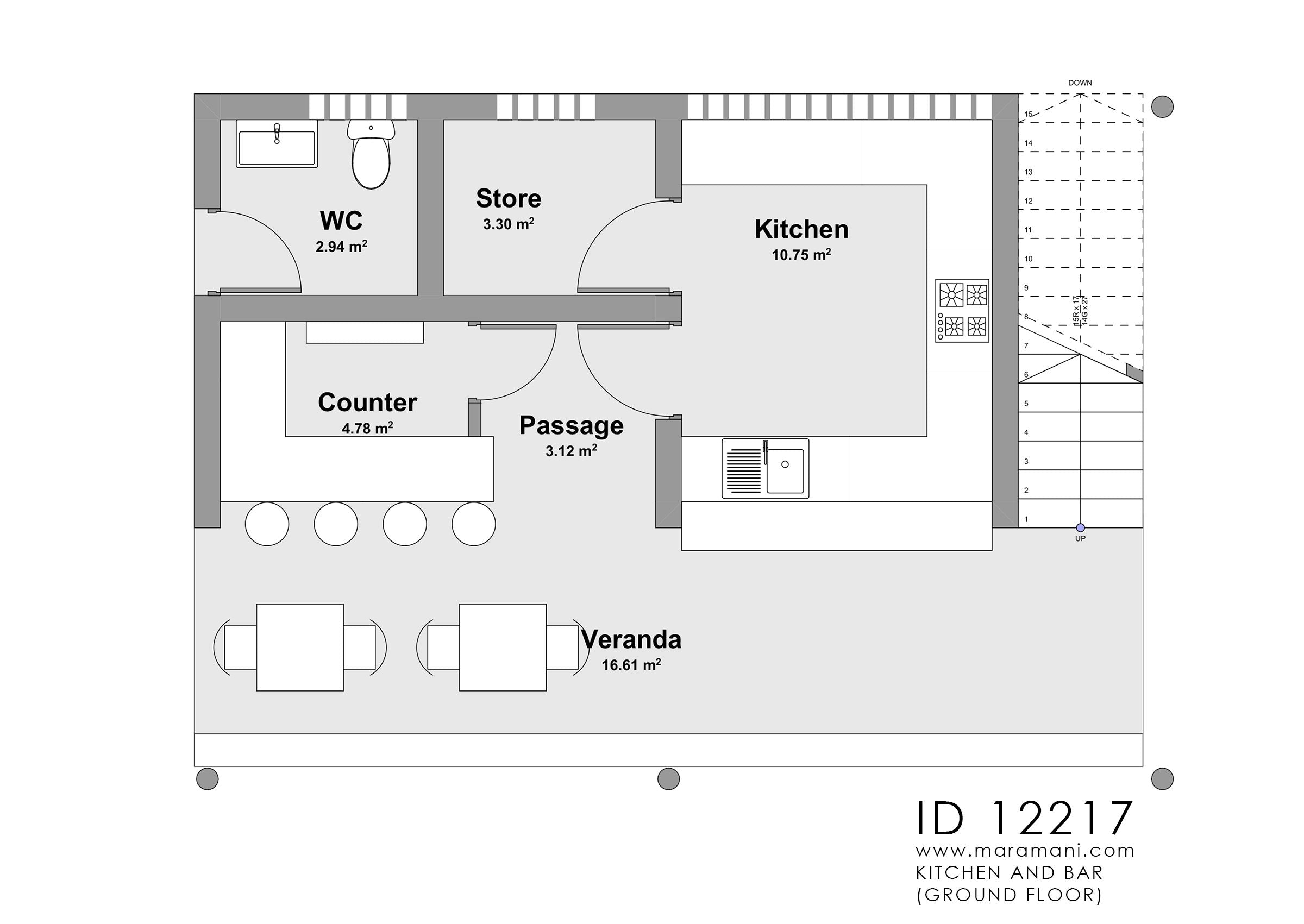

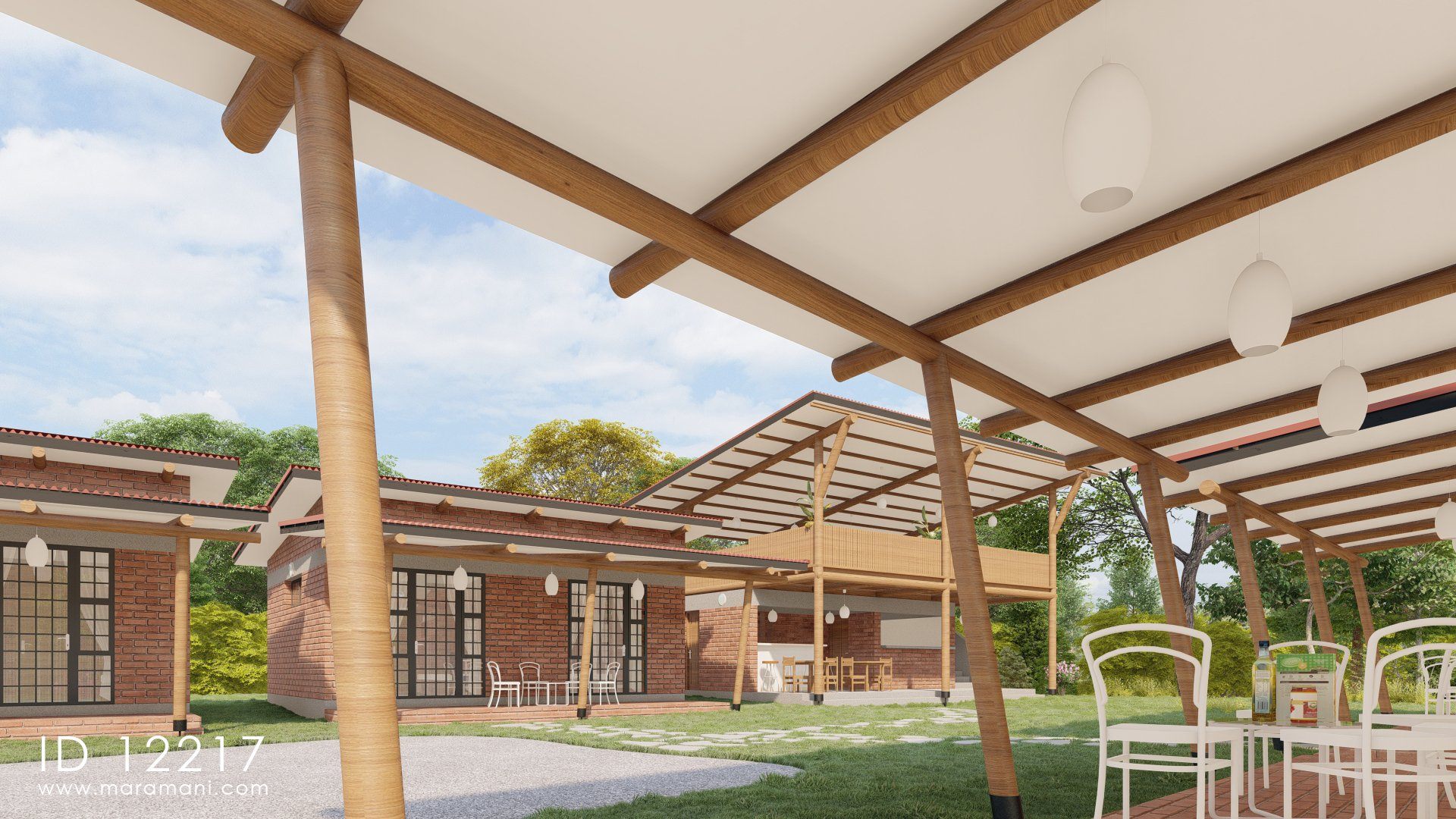

The kitchen and dining are a separate building whereby the dining is located on top of the kitchen giving the diners a great view over the garden.

AREAS:
Total bedroom unit: 57 m2
Total kitchen/dining unit: 109 m2
*Construction cost estimates are for 1 bedroom unit only

Plan Details

Features Drawings List
Stories: 1
Bedroom: 2
En-suite rooms: 2
Toilets/ bath: 2
Kitchen: 1
Dining: 1
Verandah: 1

Foundation Plan
Floor Plan
Roof Plan
Sections
Elevations
Door and Window Schedule
Clean and waste water
Septic tank and soakage pit details
Schematic electrical layout
Furniture layout
Floor finishes plan
Structural drawings for kitchen unit

*Drawings delivered in PDF and DWG Format
