Cross house - ID 25505

Plan Specifications

  • 2 stories

  • 5 baths

  • 5 bedrooms

  • 342 sq m

  • Length 19m

  • Mechanical Drawings

  • Structural Drawings

  • Width 18m

$549.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

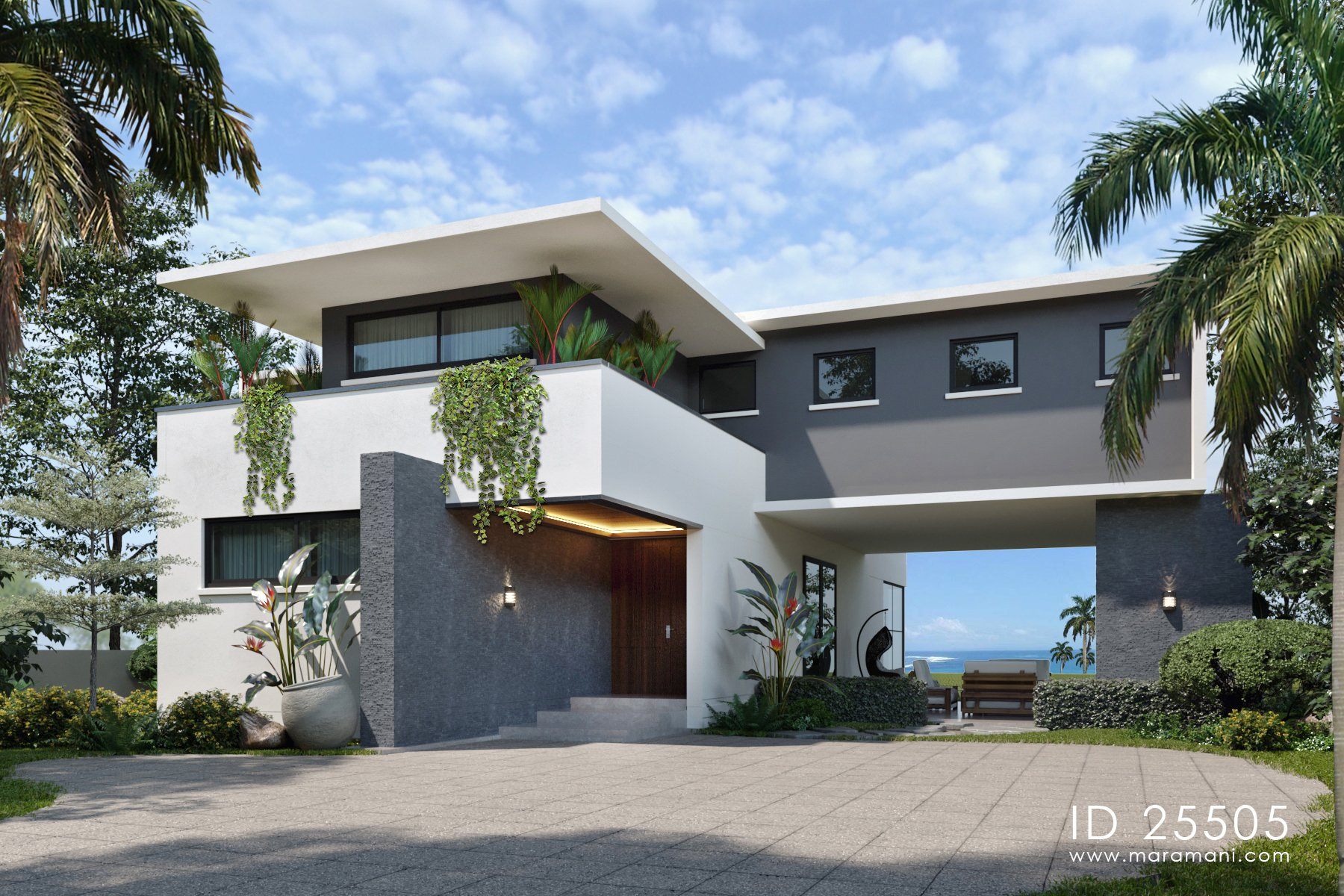

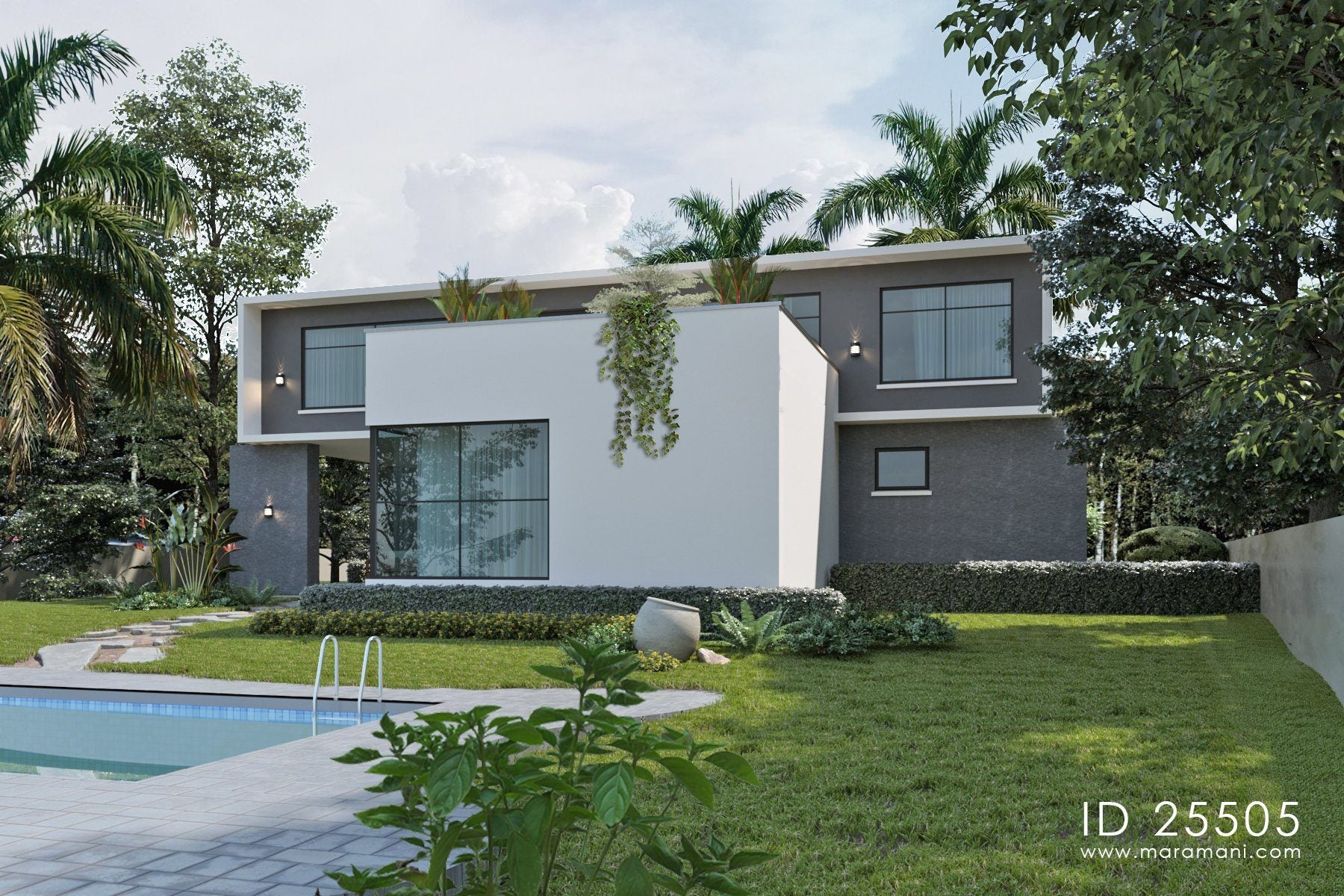

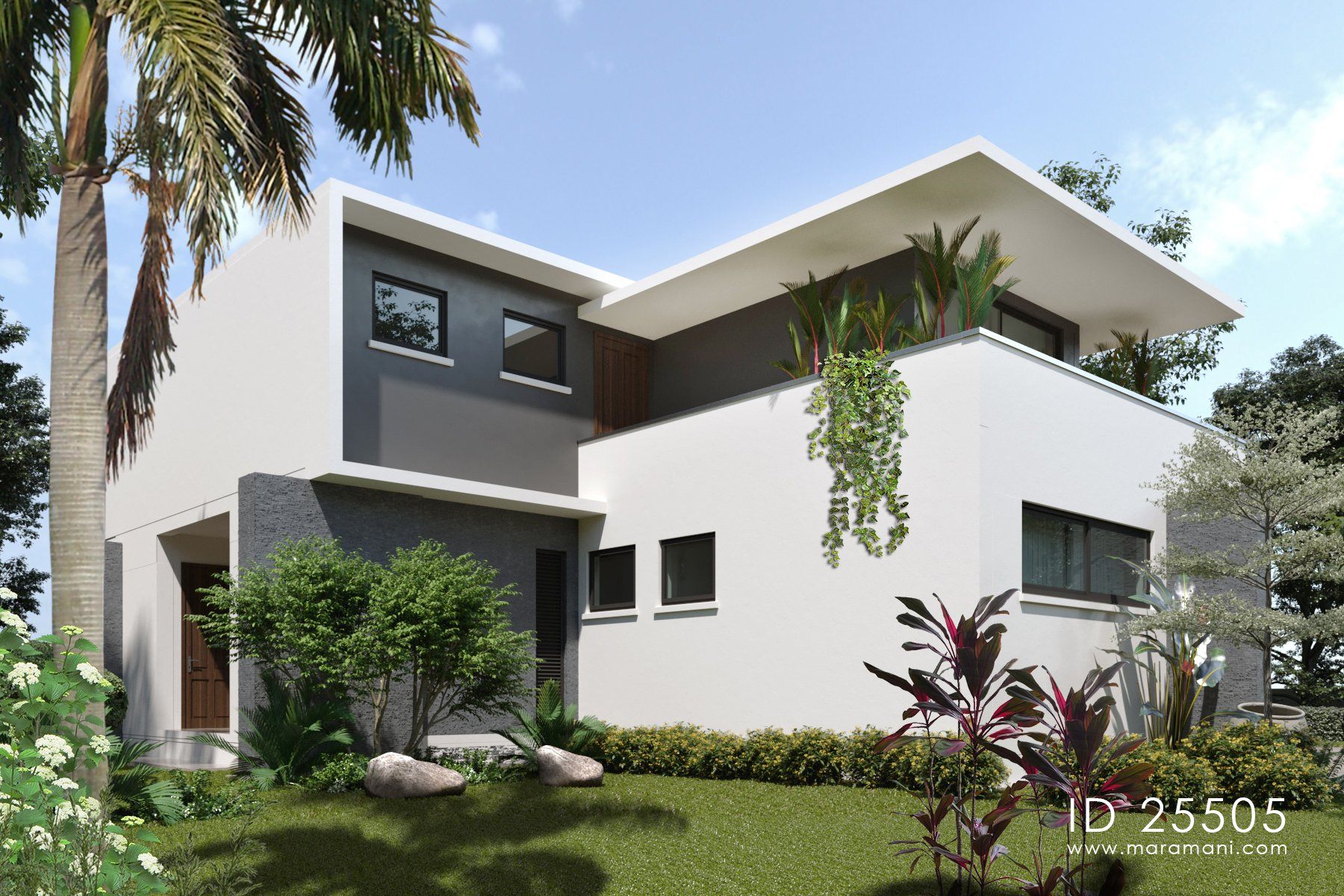

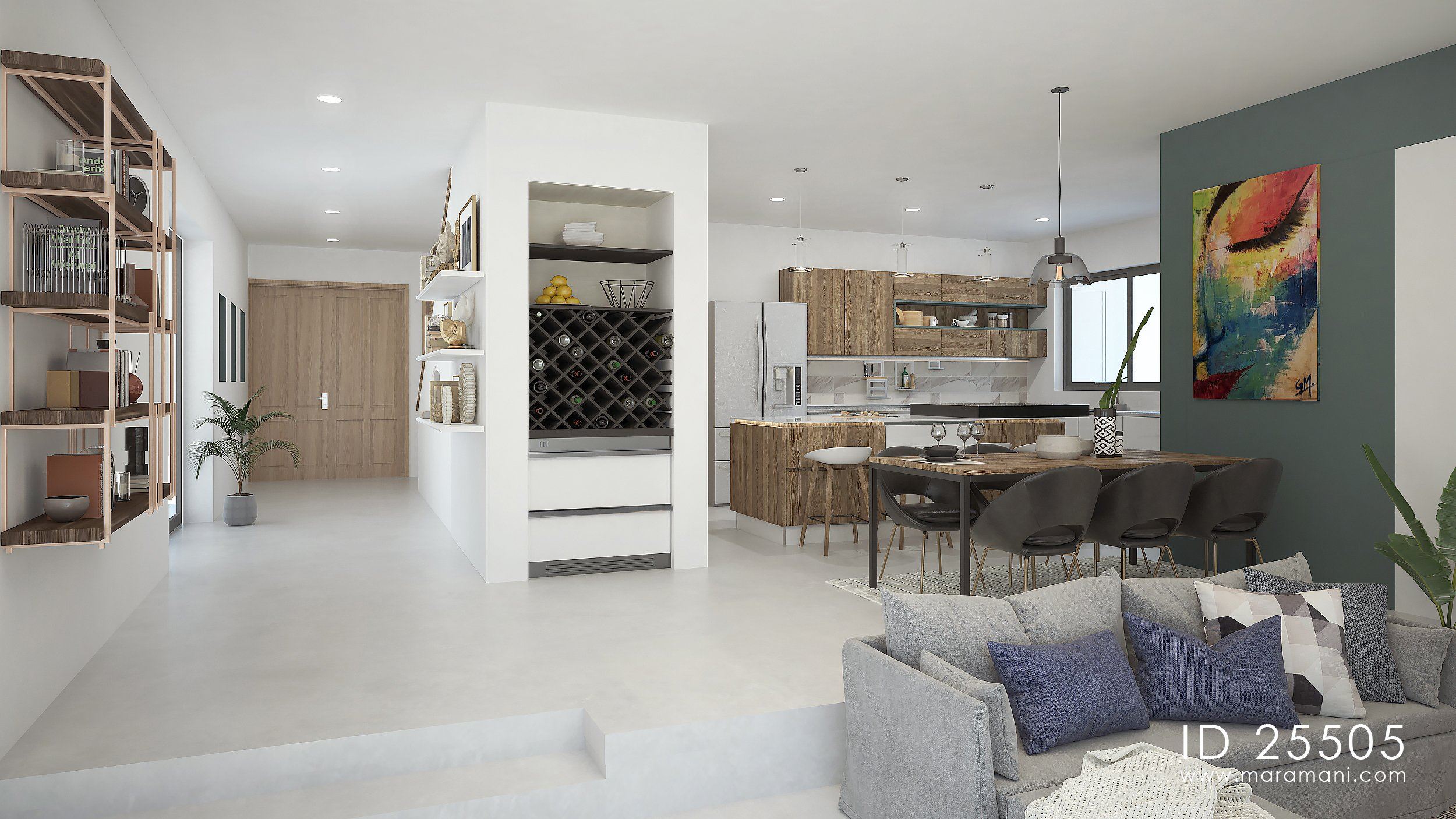

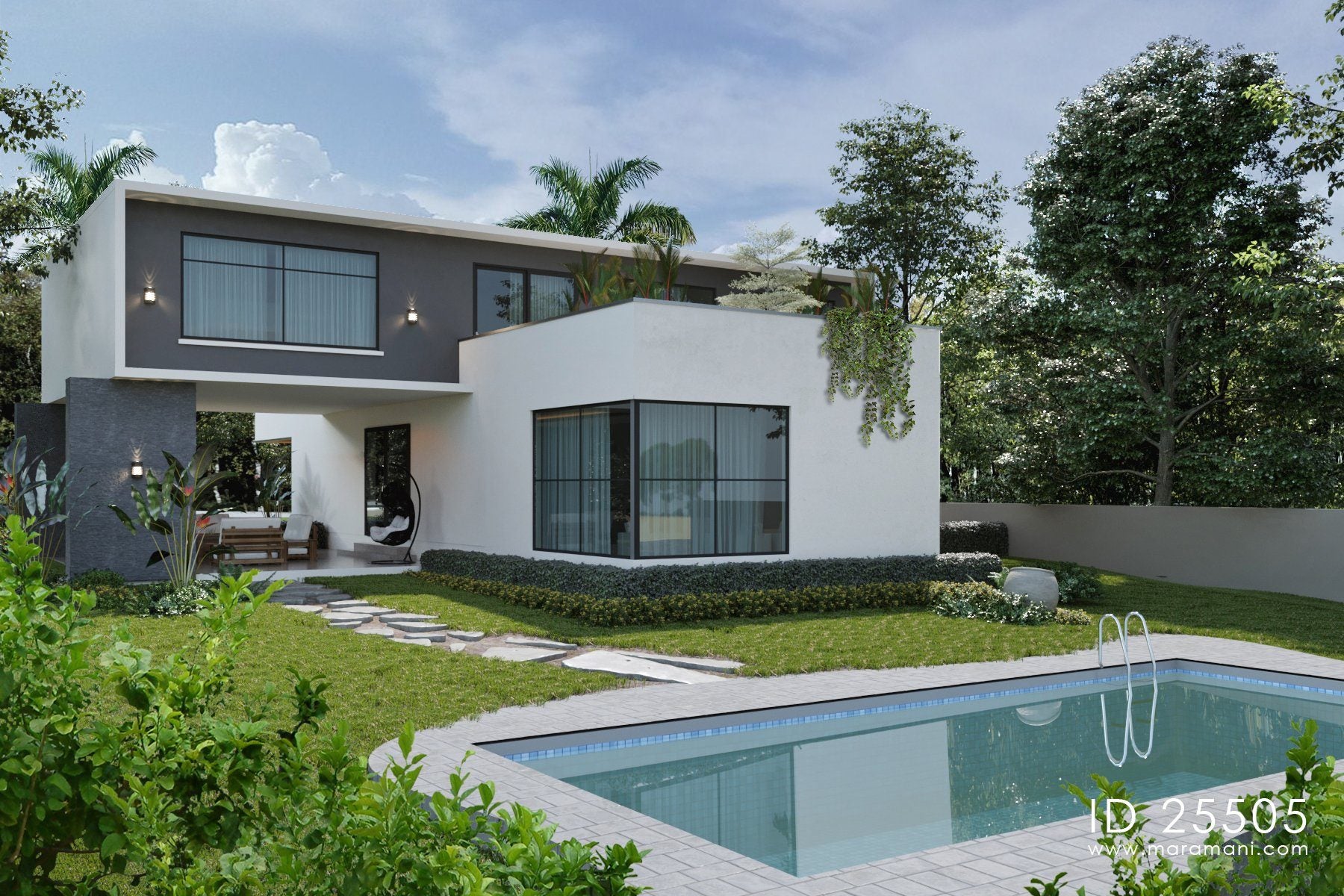

A contemporary house plan consisting of two rectangles placed diagonally on top of each other. This allows all rooms on the first floor to have a view of the garden and pool. An open plan combines the living room, dining and kitchen into a single space accessed through a beautiful passage. A large covered veranda on the ground floor and two large balconies to the front and back of the house give plenty of space for out door seating and socializing. A magnificent piece of architecture for the 21st century family.

Plan Details

Features Drawings List
Stories: 2
Bedroom: 5
Self-contained rooms: 2
Toilets: 5
Kitchen: 1
Pantry: 1
Dining room: 1
Living room: 1
Laundry: 1
Store: 2
Office/ library: 1
Balcony: 2
Veranda: 2

Foundation Plan

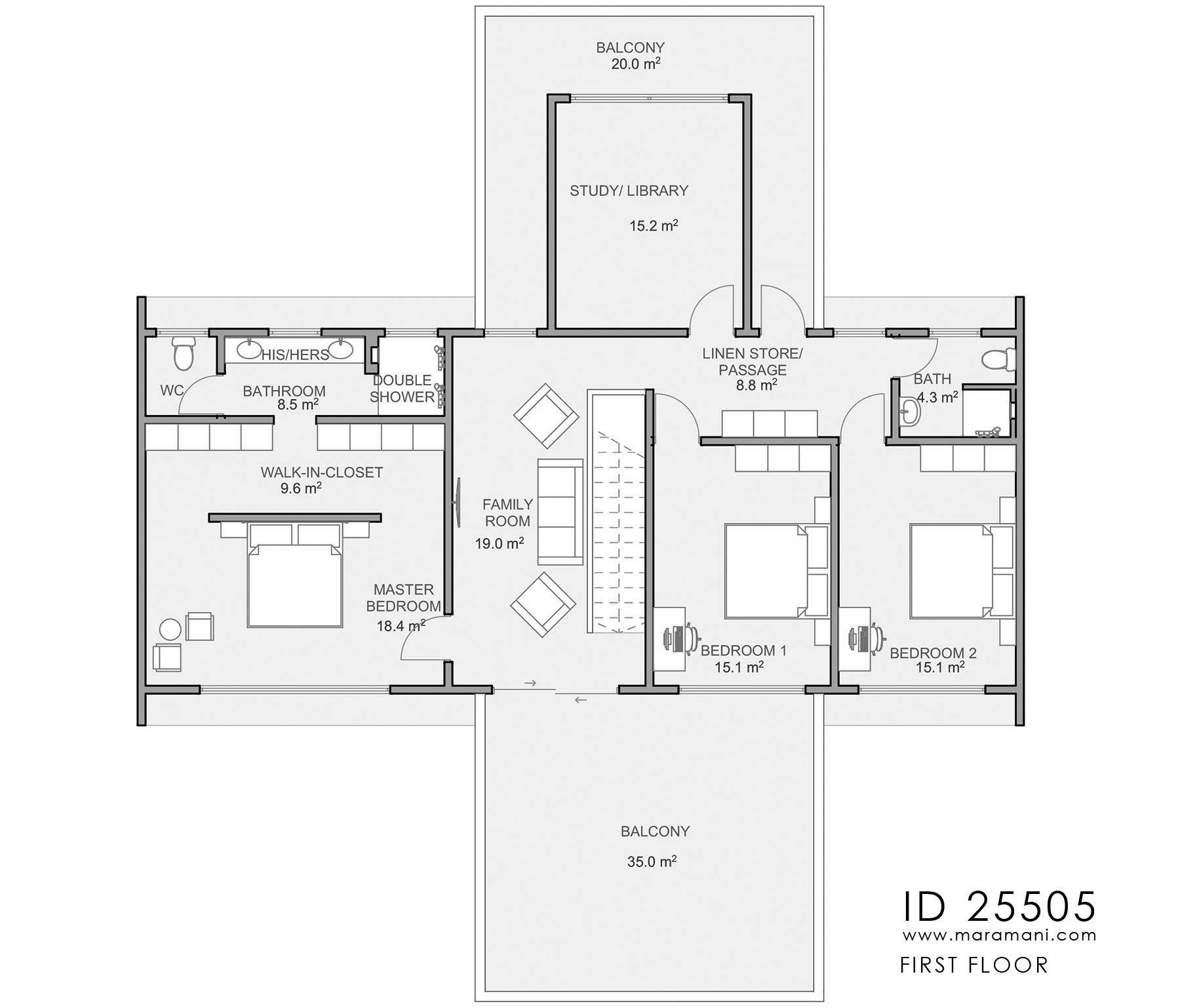

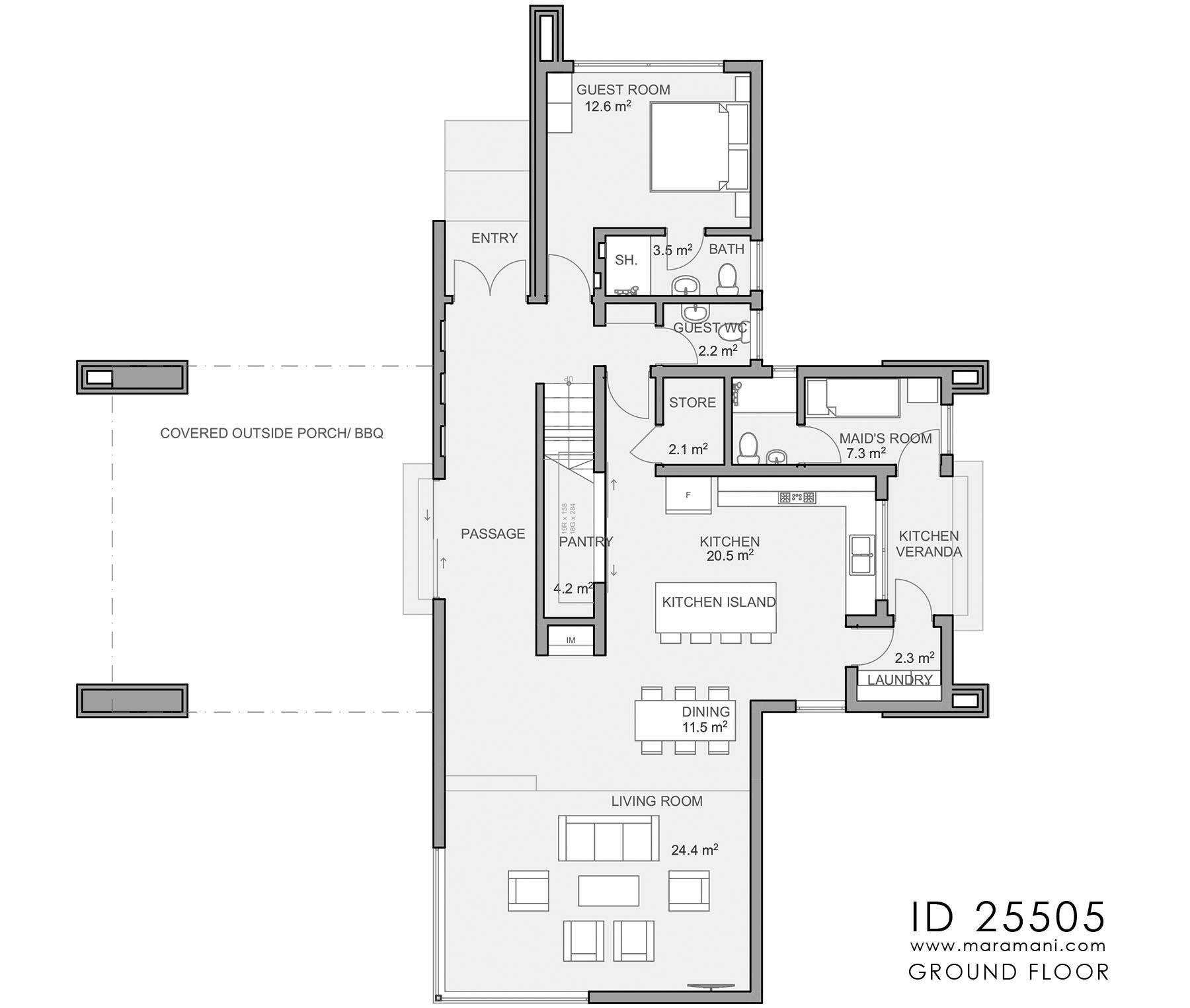

Floor plan
Roof plan
Sections
Elevations
Schematic electrical layout
Door and window schedule
Furniture layout
Details
Electrical Drawings
Mechanical Drawings
Structural Drawings
Bills of Quantities (without rates)
Schedule of Materials (editable excel format)

*Drawings delivered in PDF and DWG Format
