Contemporary 5 Bedroom Mansion - ID 25708

Plan Specifications

  • 2 stories

  • 5 bedrooms

  • 7 baths

  • 679 sq m

  • Length 22m

  • Width 31m

$1,649.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

This contemporary 5 bedrooms mansion plan is specifically designed for flood prone areas. The house is raised on stilts(columns) from the ground level.

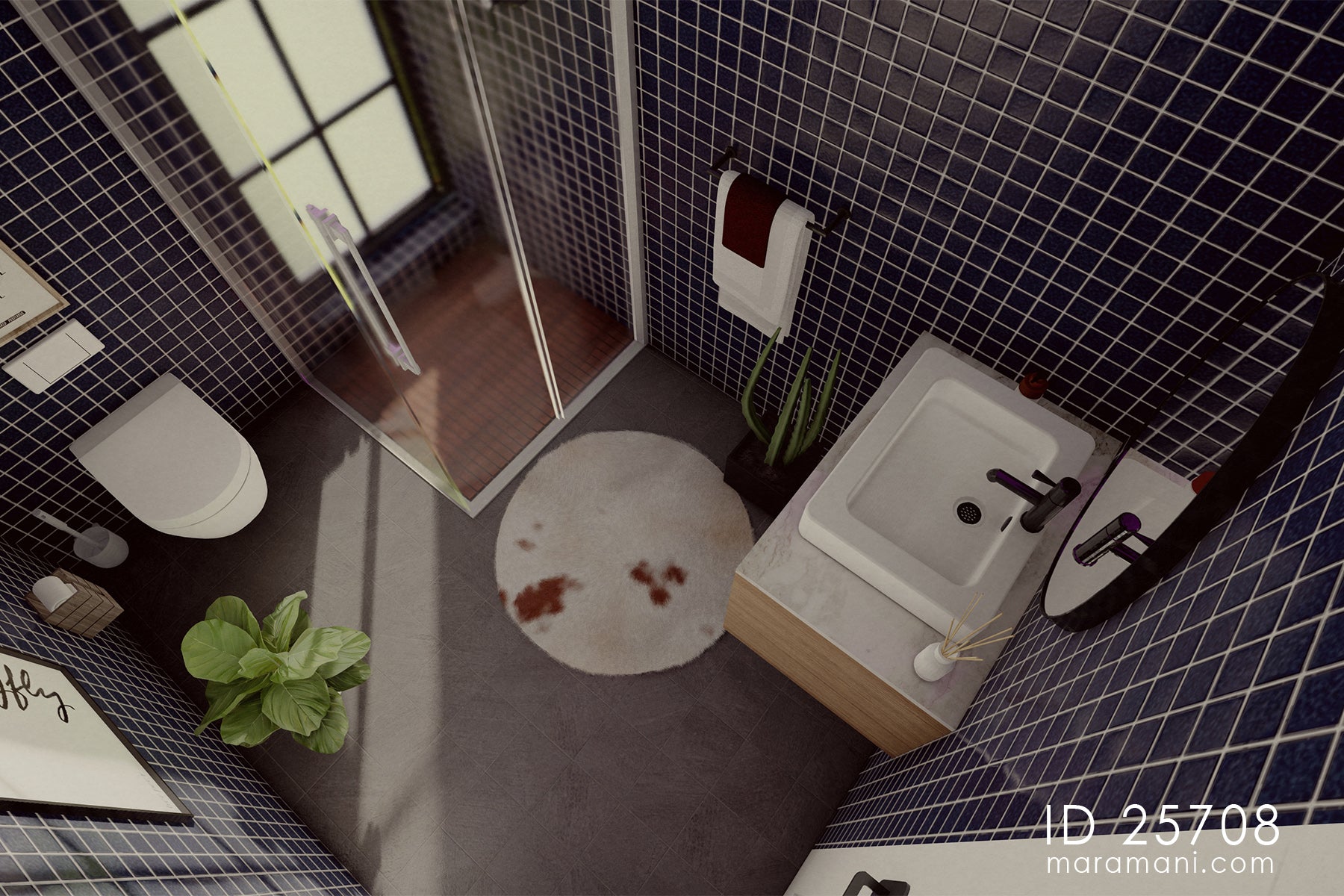

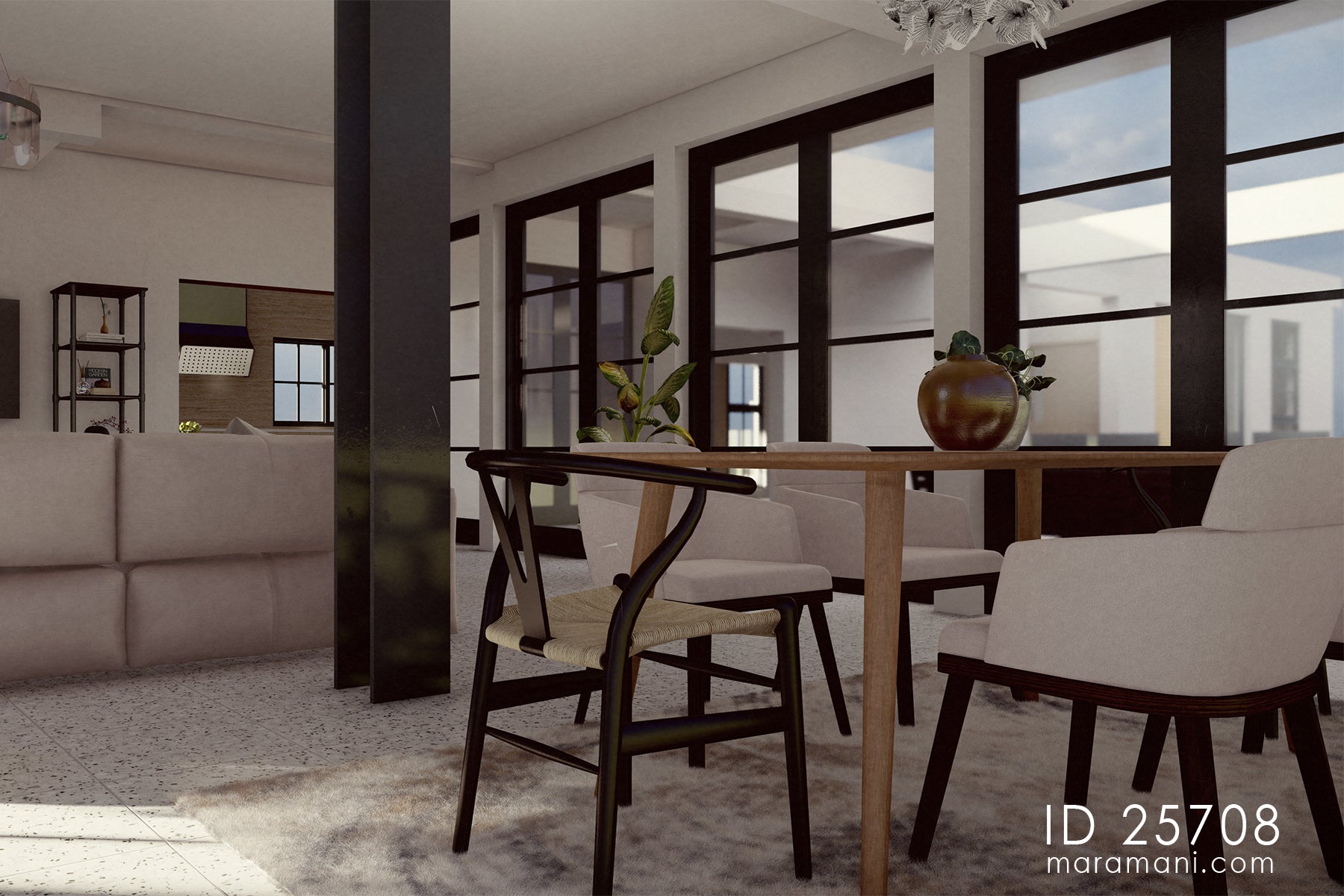

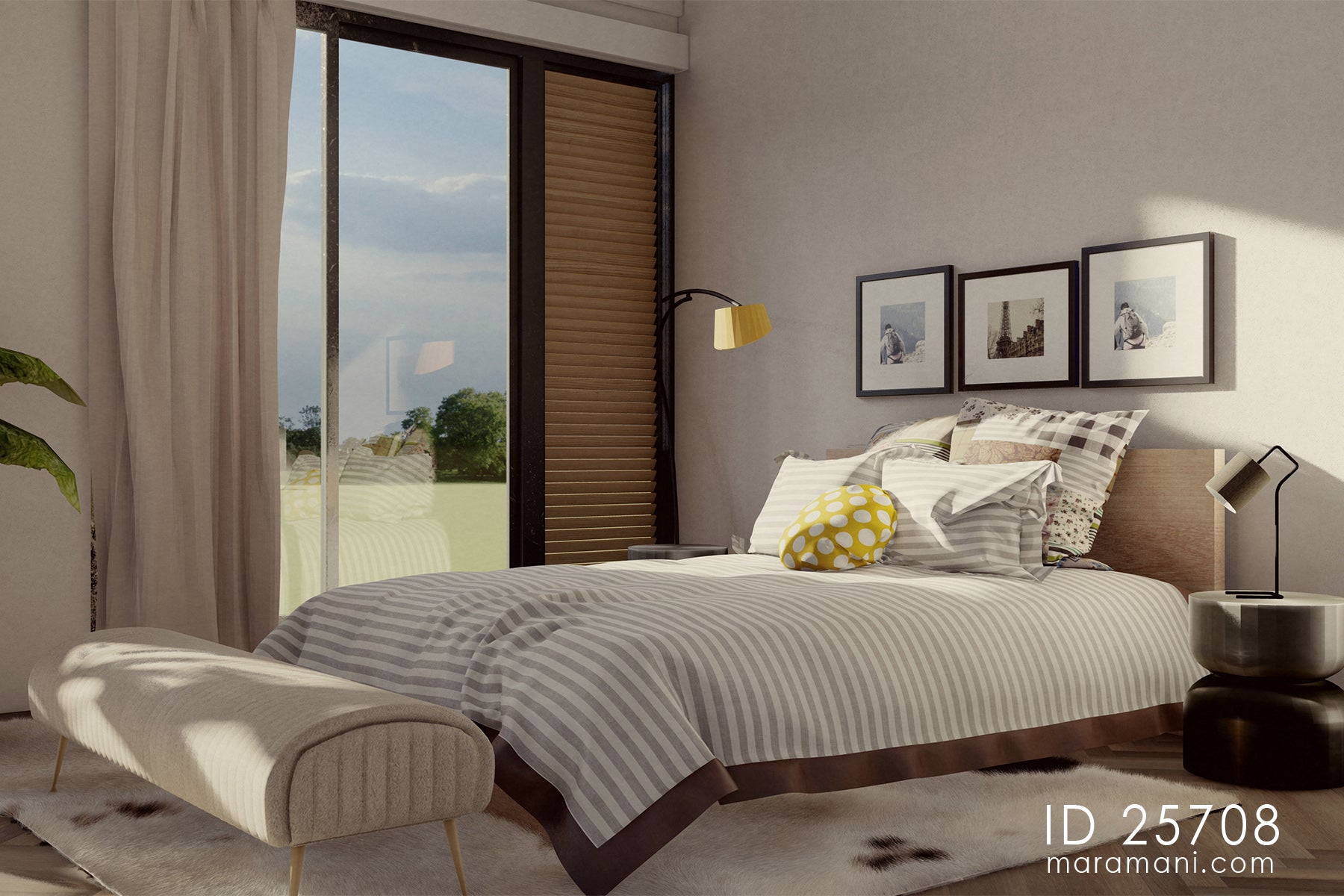

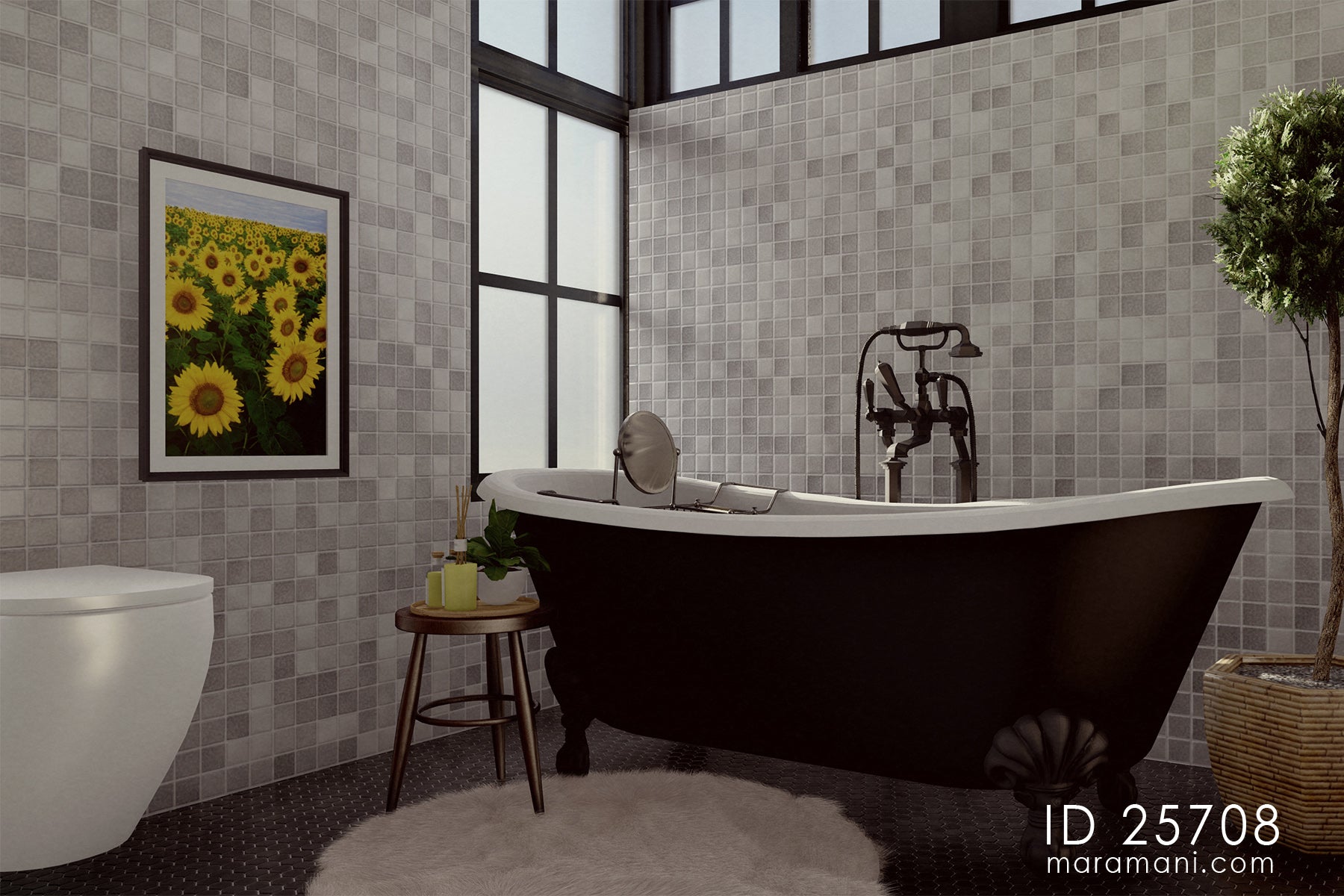

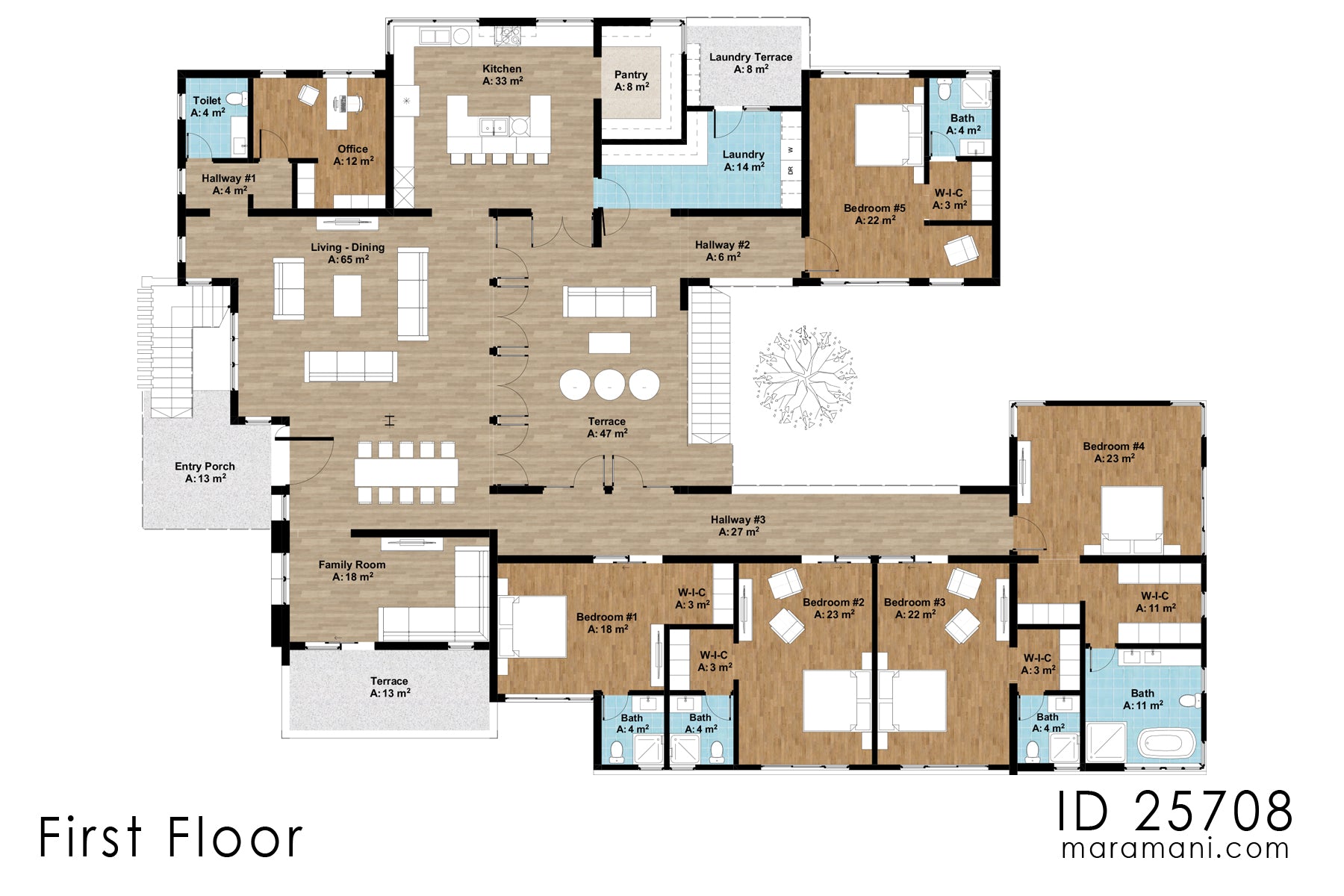

On the first floor, you find an open-plan design spacious dining, and living room after entering from the entry porch. There is a large kitchen u-shaped with a kitchen island and adjacent to a pantry. All living spaces opens up to a big outdoor terrace area with access stairs to the ground level open dining. This allows for easy hosting of friends and parties while overlooking a beautiful garden and/ or swimming pool. The design also includes a more private family area as well as both a media room and an office. All bedrooms are ensuite with walk-in closets and placed on the first floor

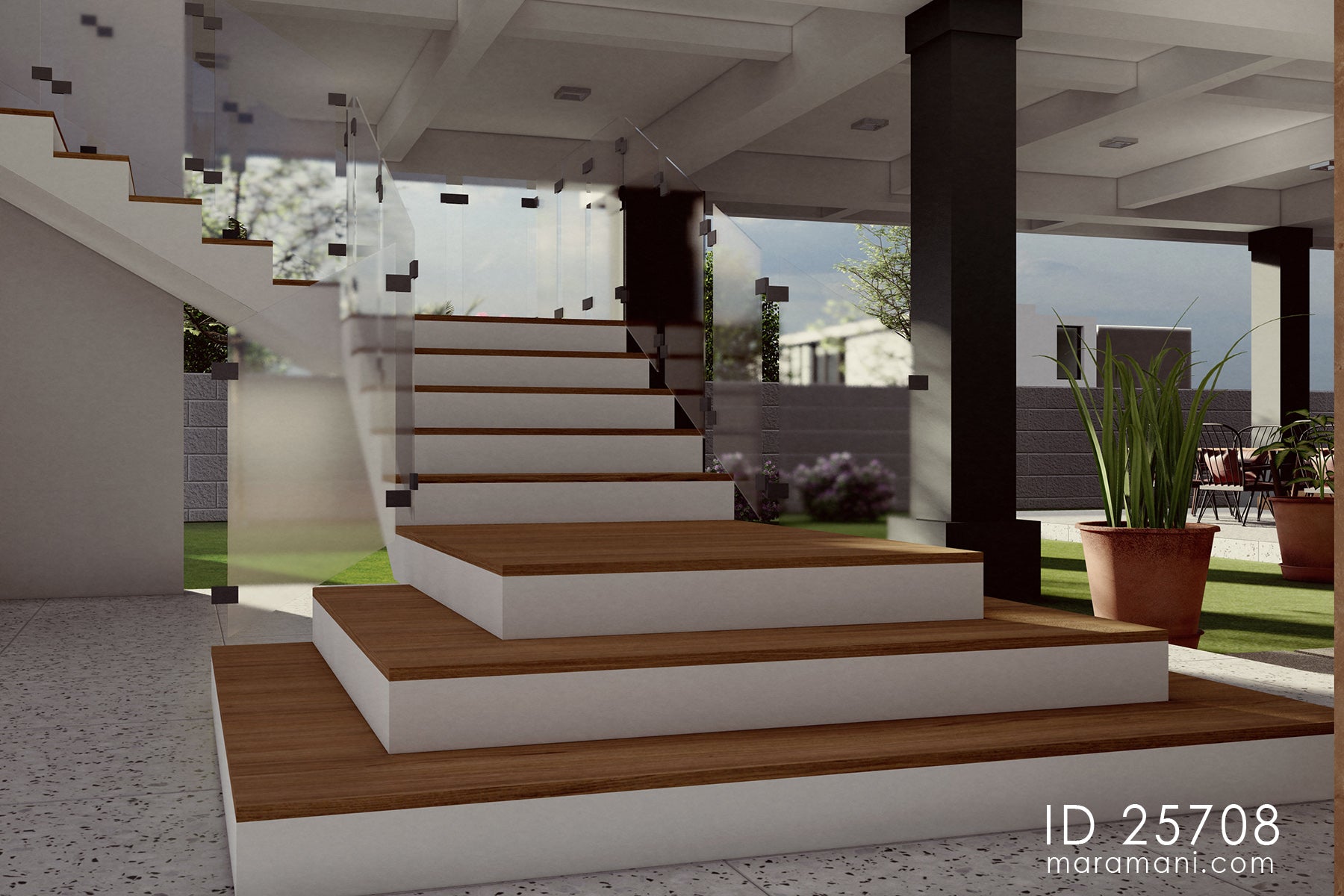

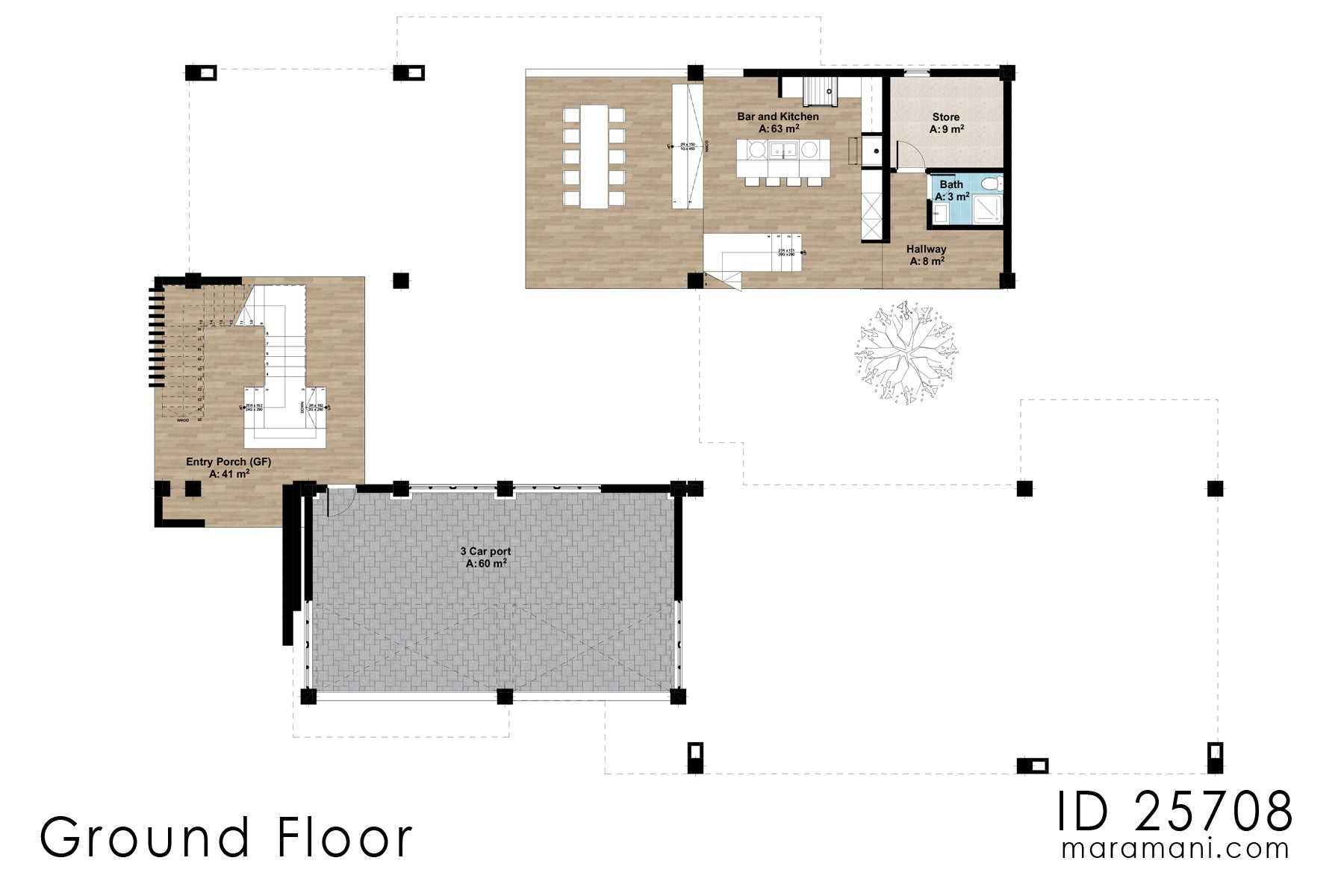

The ground floor has a grand staircase to access the an entry porch on the first floor. Also there is a 3 car garage, an outside kitchen/bar with its own store and the open dining space, and bathroom.

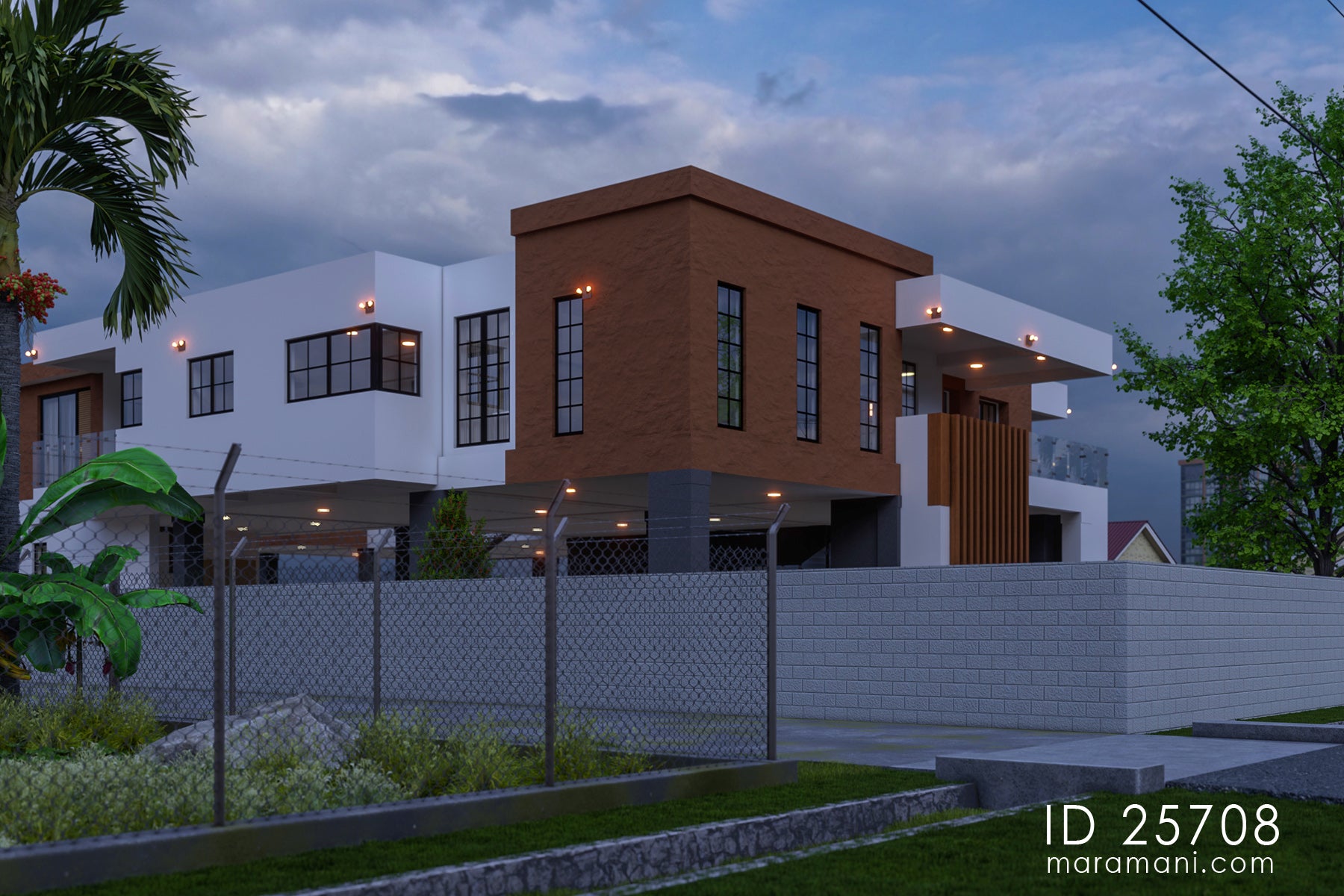

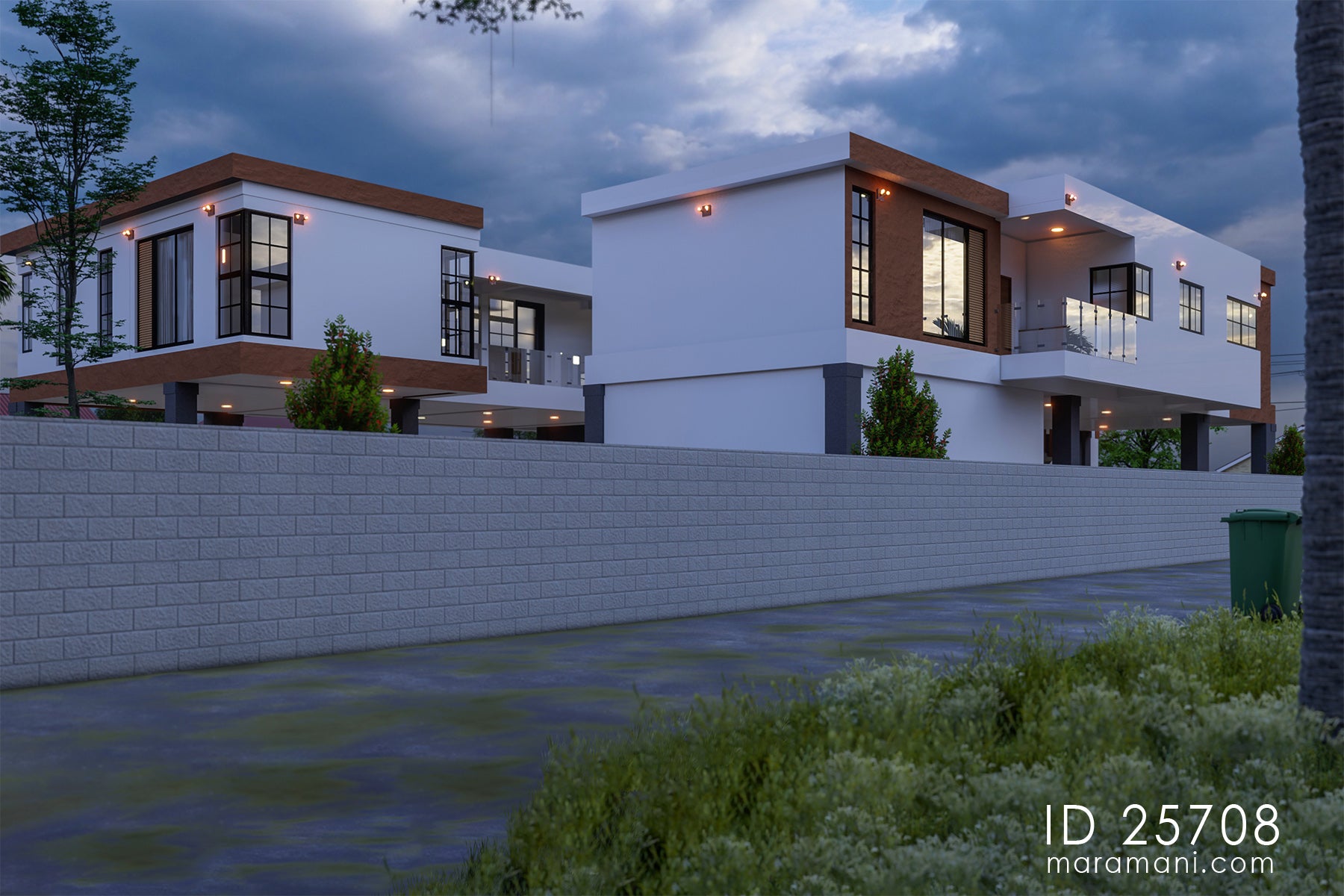

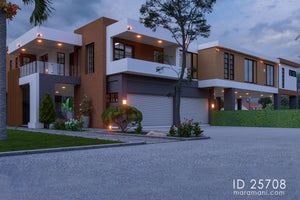

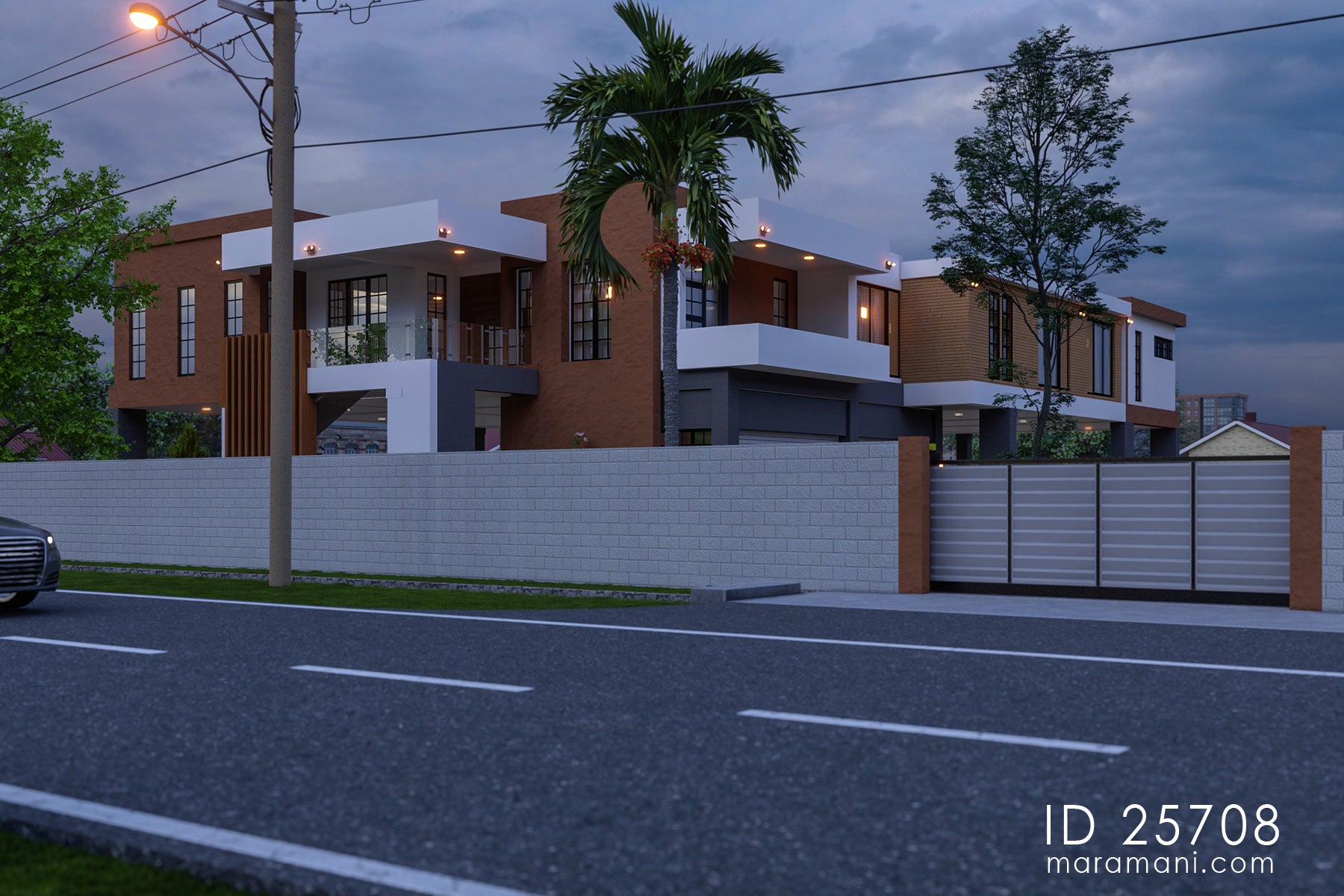

Special design features such as burnt bricks cladding on top of regular concrete block walls give a beautiful natural finish. With its spacious layout, this contemporary 5 bedrooms mansion design offers plenty of seamless flow between indoor and outdoor spaces.

Plan Details

Features Drawings List

Stories: 2
Bedrooms: 5
En-suite rooms: 5
Toilets / bath: 7
Family room: 1
Living room: 1
Office: 1
Kitchen: 1
Pantry: 1
Laundry: 1
Outdoor Kitchen / Bar: 1
Store: 1
Car port: 1
Terrace: 3
Entry porch: 2
Walk-in-closet: 5

Foundation Plan
Floor Plan
Roof Plan
Sections
Elevations
Door and Window Schedule
Floor finishes plan and schedule
Construction details
Schematic electrical layout
Schematic Clean water supply layout
Schematic waste and foul water drainage
Septic tank and soak away pit

Structural Drawings

*Drawings delivered in PDF and DWG Format
