2 stories
5 bedrooms
6 baths
495 sq m
Length 16m
Width 19m
Overhangs, straight lines, and overlapping structural elements define the intriguing "layers" within the façade of this contemporary 5-bedroom house plan. A theater, an office, a double garage, and a separate building with two maid's quarters, a pool house lounge, and a gym are just a few of the luxurious amenities found in this sprawling home.

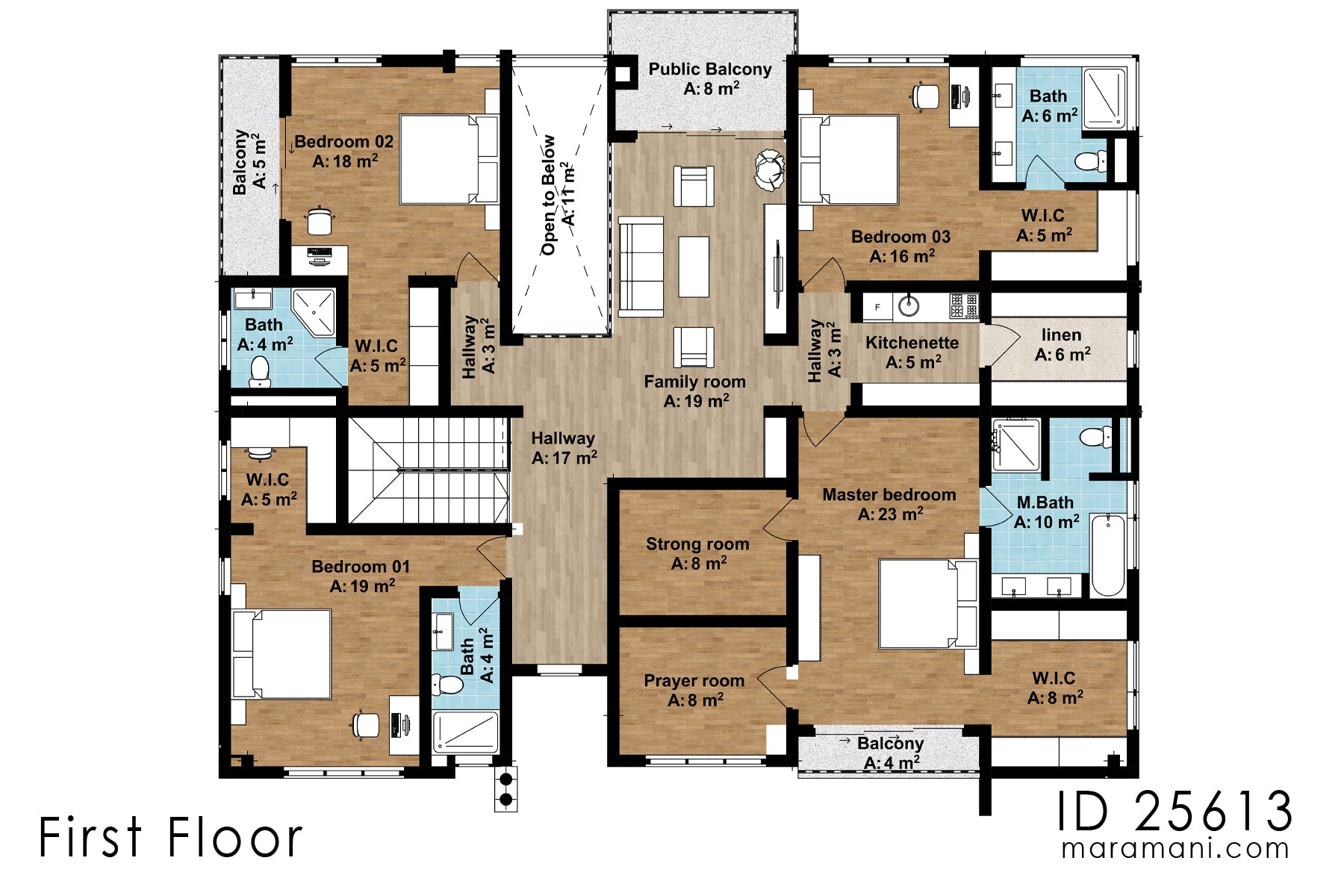

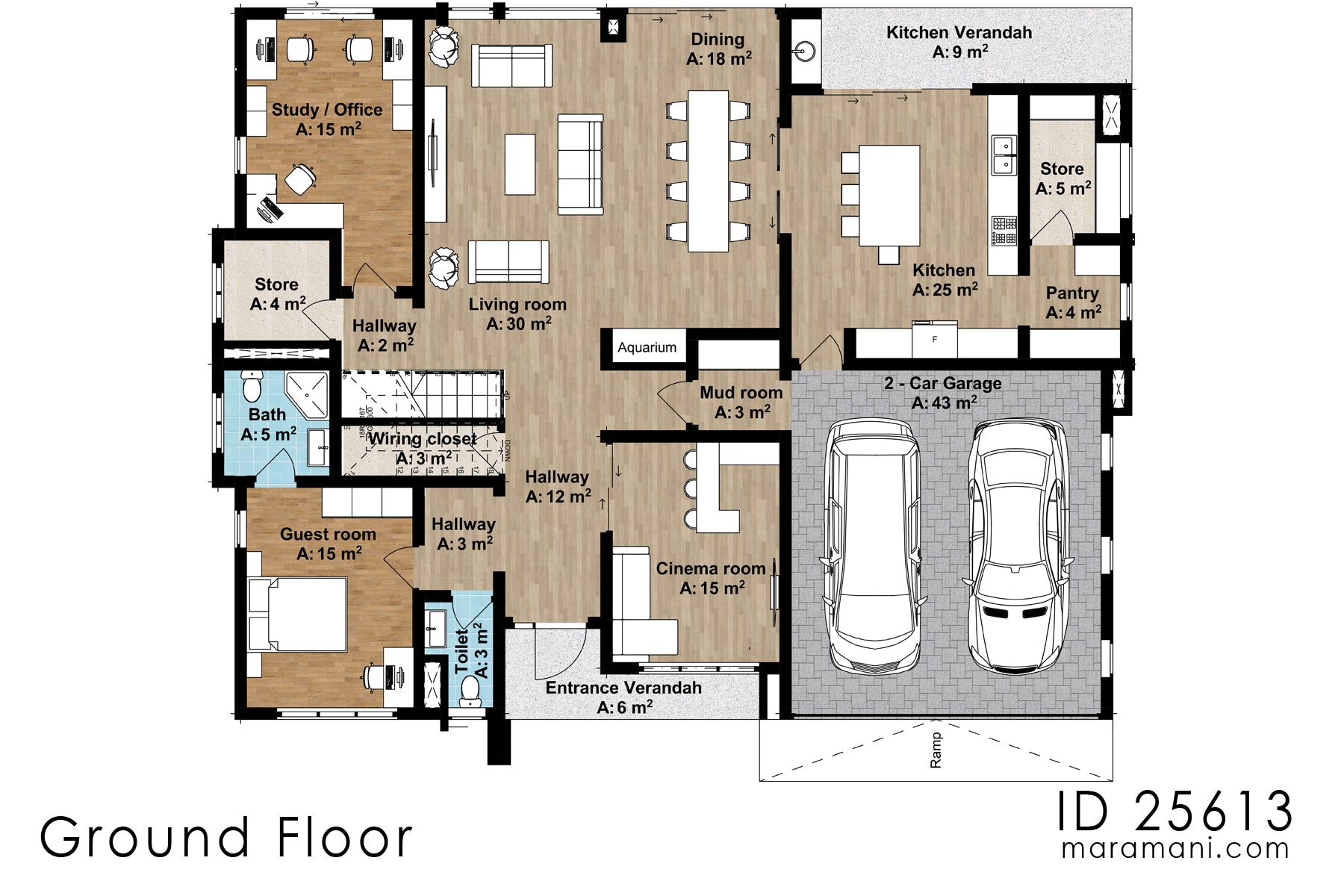

You can choose between an open and closed kitchen thanks to the large sliding doors that separate the dining and living areas on the ground floor. Along with the bar and theater, there is also a study and a guest bedroom with an en suite bathroom. Including a family room, kitchenette, and four bedrooms, each with its own bathroom and walk-in closet, on the first floor. In addition to the regular amenities, the master suite features a prayer room and a safe room.
Careful planning went into the design of this beautiful, effortlessly-flowing contemporary 5-bedroom house plan with spacious, well-thought-out common areas and an abundance of high-end amenities.
| Features | Drawings List |
|
MAIN HOUSE Stories: 2 Bedrooms: 5 Bathroom: 6
En-suite rooms: 5
Living room: 1
Dining: 1 Study / Office: 1 Cinema room: 1 Kitchen: 1 Store: 2 Pantry: 1 Wiring Closet: 1 Verandah: 2 Garage: 1 Mud room: 1 Family room: 1 Strong room: 1 Prayer room: 1 Kitchenette: 1 Linen: 1 Walk-in-closet: 4 Balcony: 3

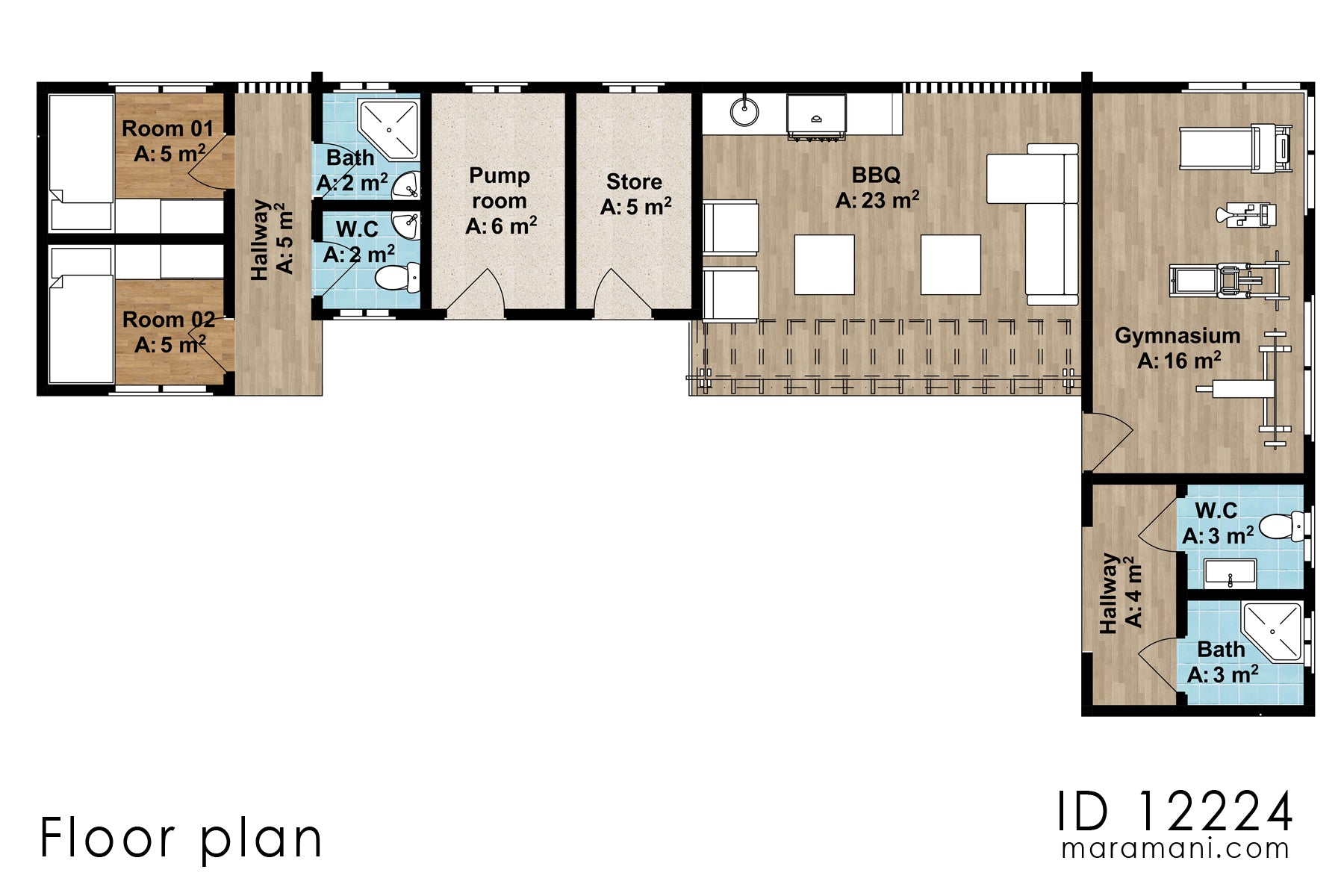

POOL HOUSE
Stories: 1 Bedroom: 2 Toilet: 2 Shower room: 2 Pump room: 1 Store: 1 BBQ: 1 Gymnasium: 1 |
Foundation Plan
Floor Plans
Roof Plan
Sections
Construction Details
Elevations
Doors and windows schedule
Floor finishes and furniture layout plan
Schematic electrical layout plan
Schematic clean water layout plan
Schematic Foul water layout plan
Septic tank and soak away pit
Structural Drawings *Drawings delivered in PDF and DWG Format |
| Item | Cost Estimates |
|---|---|
| 1: Substructure | |
| 2: Superstructure | |
| 3: Roof | |
| 4: Doors | |
| 5: Windows | |
| 6: Finishes | |
| 7: Decorations | |
| 8: Plumbing Installations | |
| 9: Electrical Installations | |
| TOTAL |
Available to
premium account
holders only
