Apartment house design - ID 29905

Plan Specifications

  • 12 bedrooms

  • 15 baths

  • 2 stories

  • 710 sq m

  • Length 20m

  • Structural Drawings

  • Width 26m

$1,378.80

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

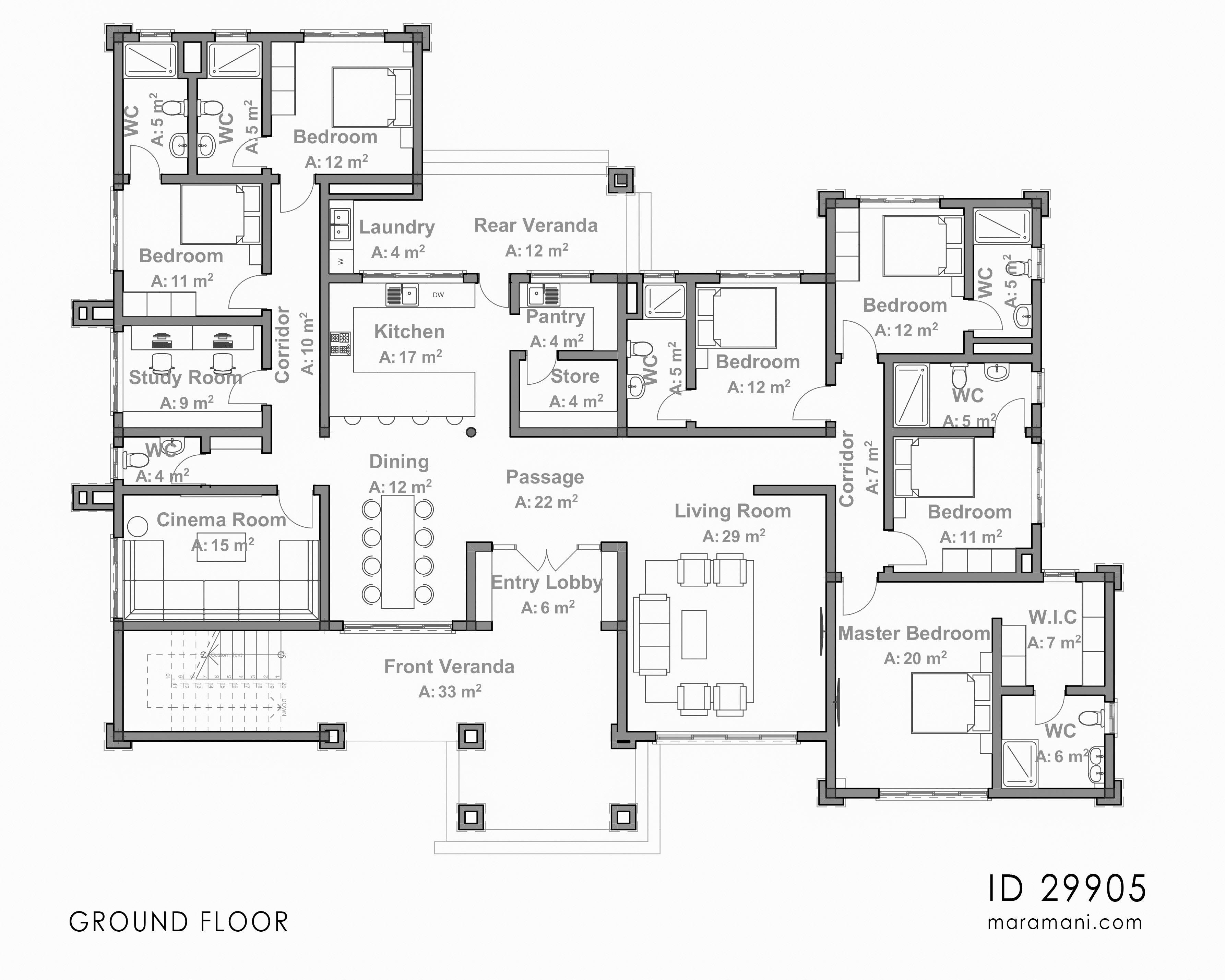

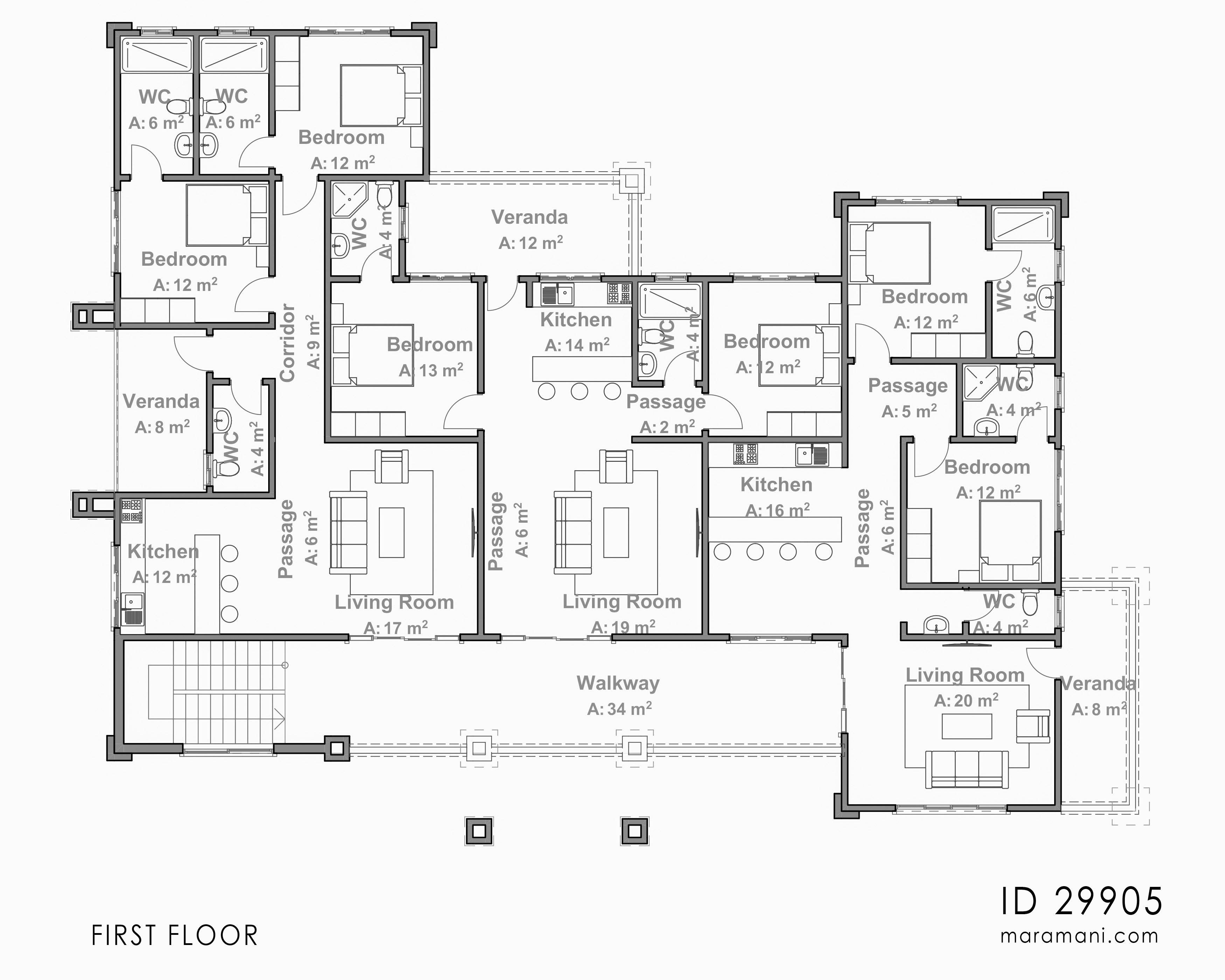

Welcome to this great combination of a 2 story building with one unit of 6 bedrooms on the ground floor and 3 units of 2 bedroom apartments on the first floor. With 710 square meters of living, this apartment house design has an enclosed outside staircase that gives a great option to the owner to reside on the ground floor and rent the apartments on the first floor. And as an added bonus, every bedroom has its own bathroom either attached or nearby! Beyond that added touch of convenience and privacy, there are plenty of other great spaces to explore. From the Front Veranda you'll discover on the left side there is a staircase to the first floor and to the front there is an entrance lobby to the ground floor. The ground floor has a living room, kitchen, rear veranda, dining, pantry, store, laundry, study room, cinema room, guest toilet, and 6 en-suites, where one ensuite has a walk-in closet. Immediately on the first floor, you'll find a walkway that opens to the 3 apartments, each apartment has 2 en-suites, a guest toilet, a living room, an open island kitchen with seating, and a balcony.

Plan Details

Features Drawings List
Stories: 2
Bedrooms: 12
En-suite rooms: 11
Toilets/ bath: 15
Livingroom: 4
Kitchen: 4
Dining: 4
Verandah: 2
Balcony: 3
Store: 1
Laundry: 1
Pantry: 1
Study room:1
Cinema room: 1

Foundation Plan
Floor Plan
Roof Plan
Elevations
Sections
Construction Details
Door and Window Schedule
Schematic Electrical layout
Schematic water supply and Drainage Layout
Furniture layout and Floor finishes plan
Structural Drawings

*Drawings delivered in PDF and DWG Format
