6 bedrooms mansion - ID 36802

Plan Specifications

  • 3 stories

  • 6 bedrooms

  • 8 baths

  • 800 sq m

  • Length 22m

  • Structural Drawings

  • Width 19m

$649.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

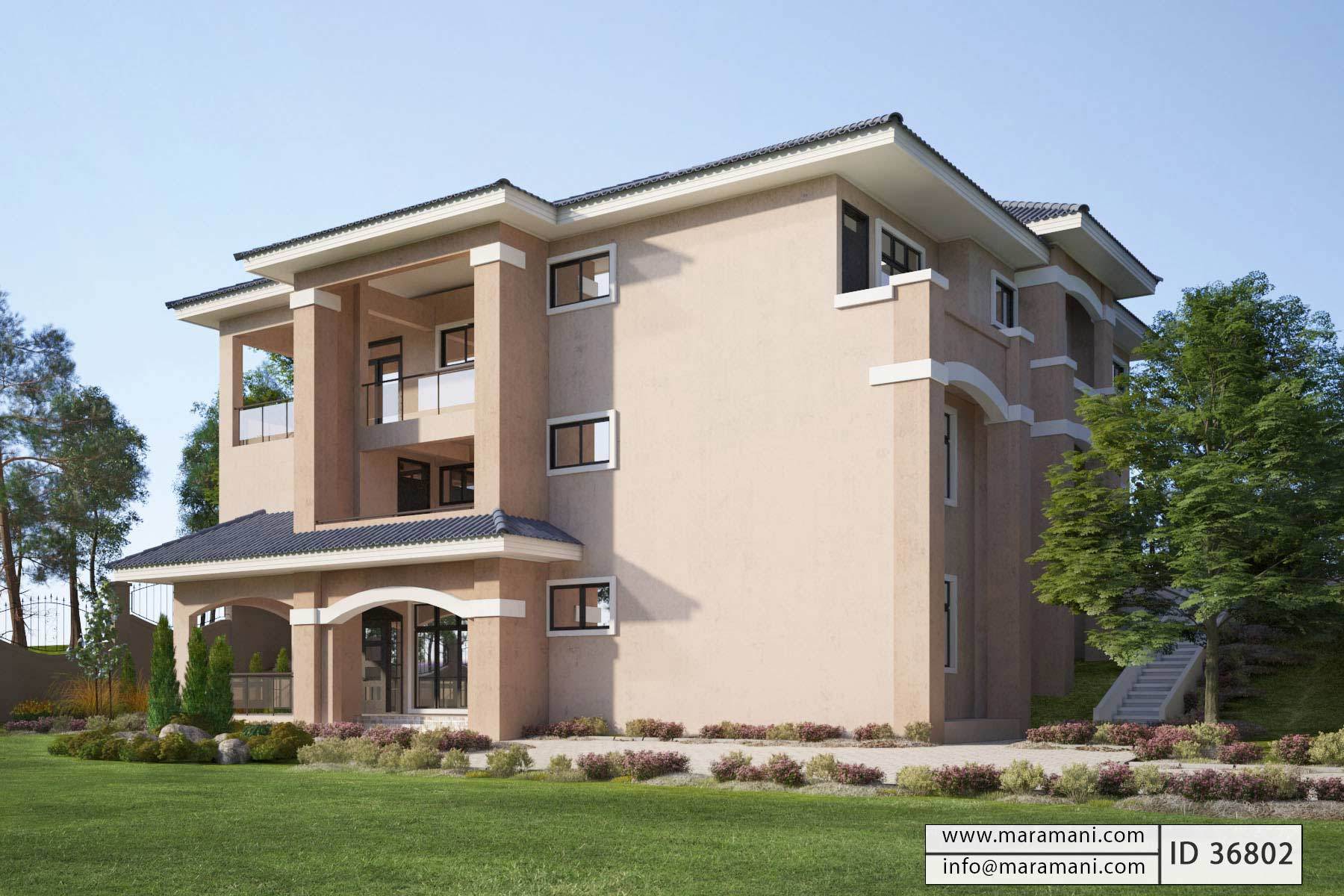

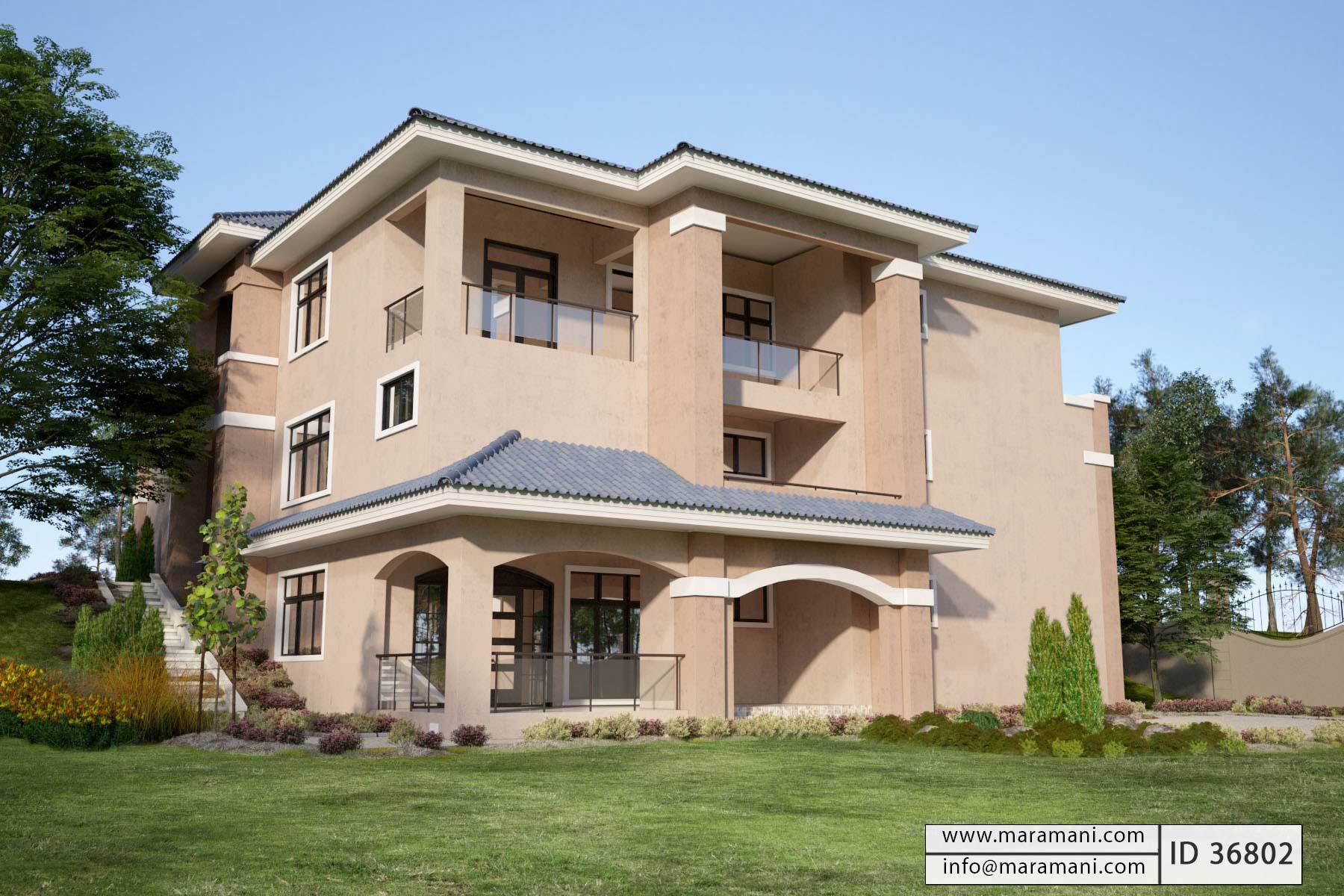

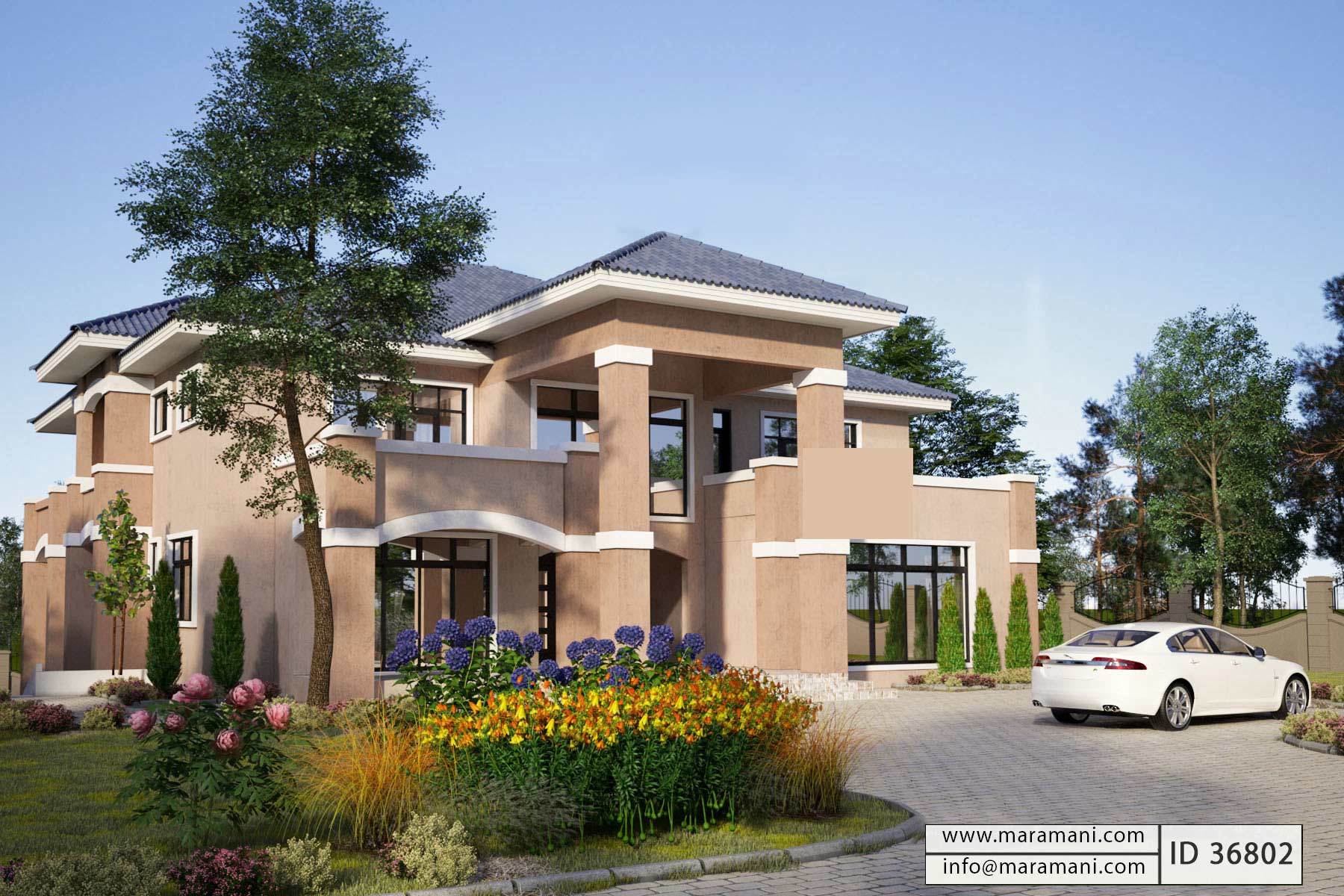

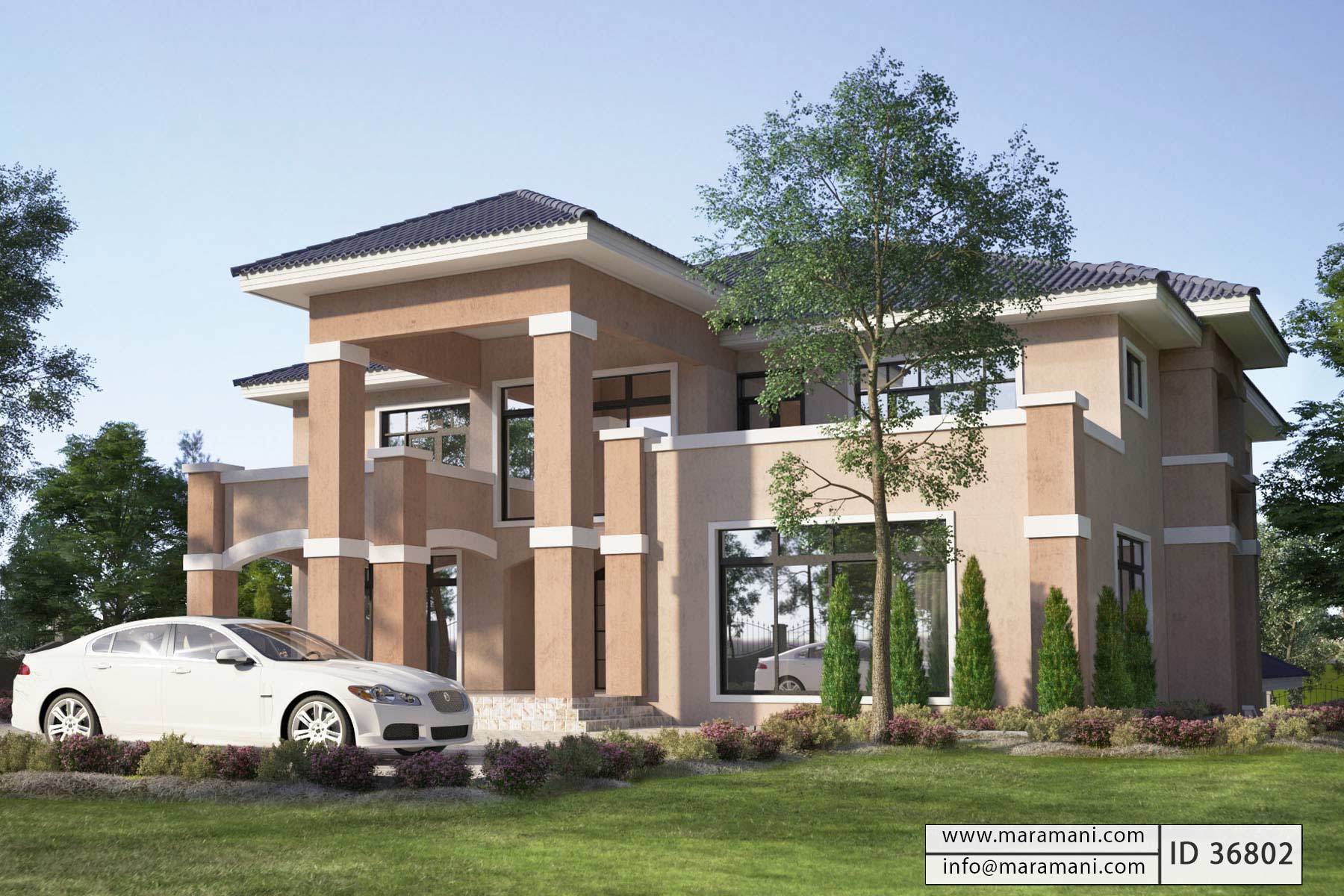

This 6 bedroom mansion is specifically designed for a sloping plot, or a plot on an hill. The front of the building is on 2 levels with grand entrance leading straight to a staircase connecting to the first floor and a basement. 6 en suite bedrooms, private gym, family room and a gaming room make up part of this incredible luxury mansion. Each bedroom has its own balcony and there is also a publicly shared balcony for hosting your guests. At a total of 800 m2 this spacious mansion will live up to all your needs and expectations.

Plan Details

Features Drawings List
Stories: 3
Bedroom: 6
Self-contained rooms: 6
Toilets: 8
Balconies: 5
Living/Sitting room: 2
Family room: 1
Kitchen: 1
Dining room: 1
Study room: 1
Gaming room: 2
Laundry: 2
Linen: 3
Bar: 1
Mini-gym: 1
Aquarium: 1
Atrium: 1
Lobby: 2
Covered veranda: 2
Entry porch: 2

Foundation plan

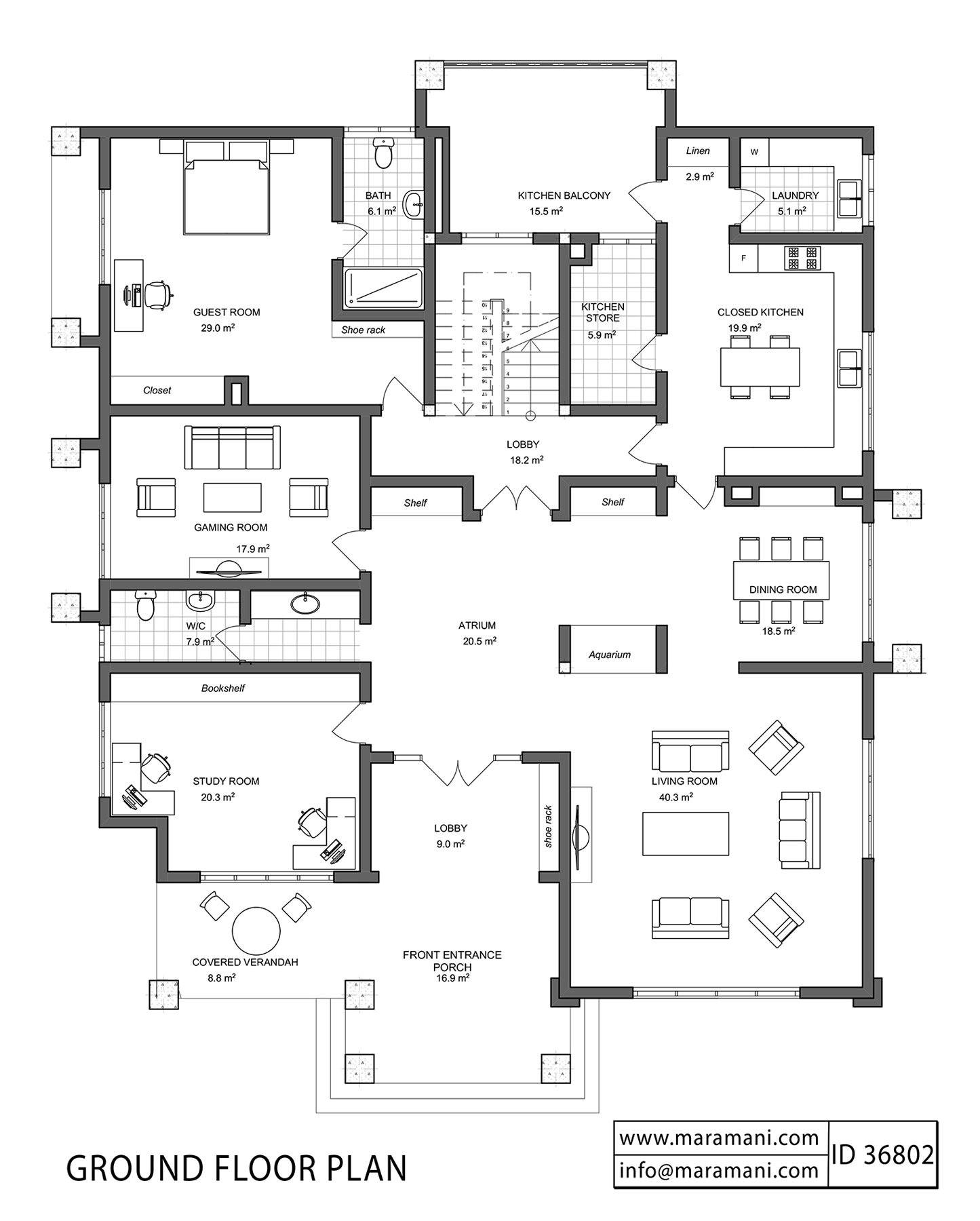

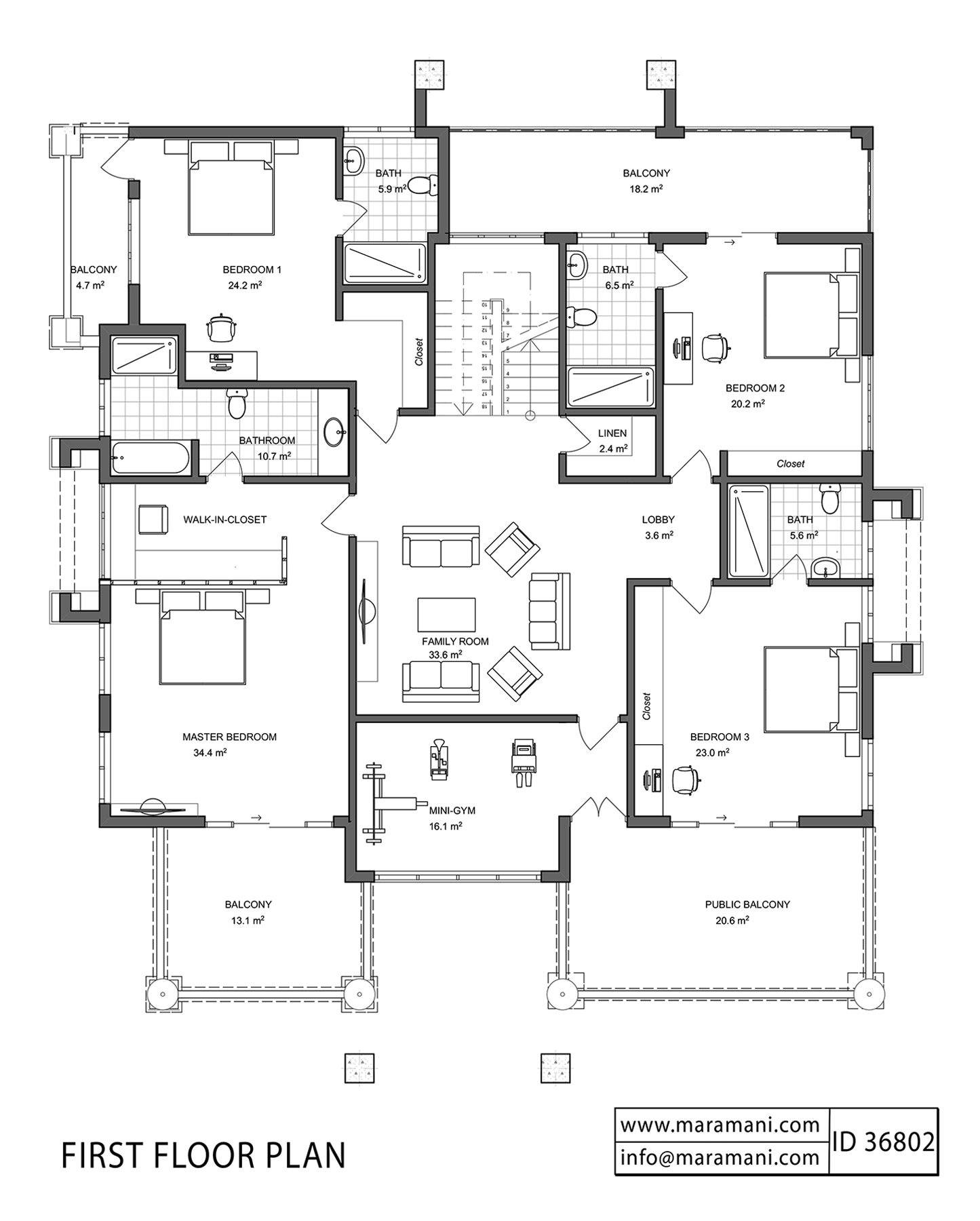

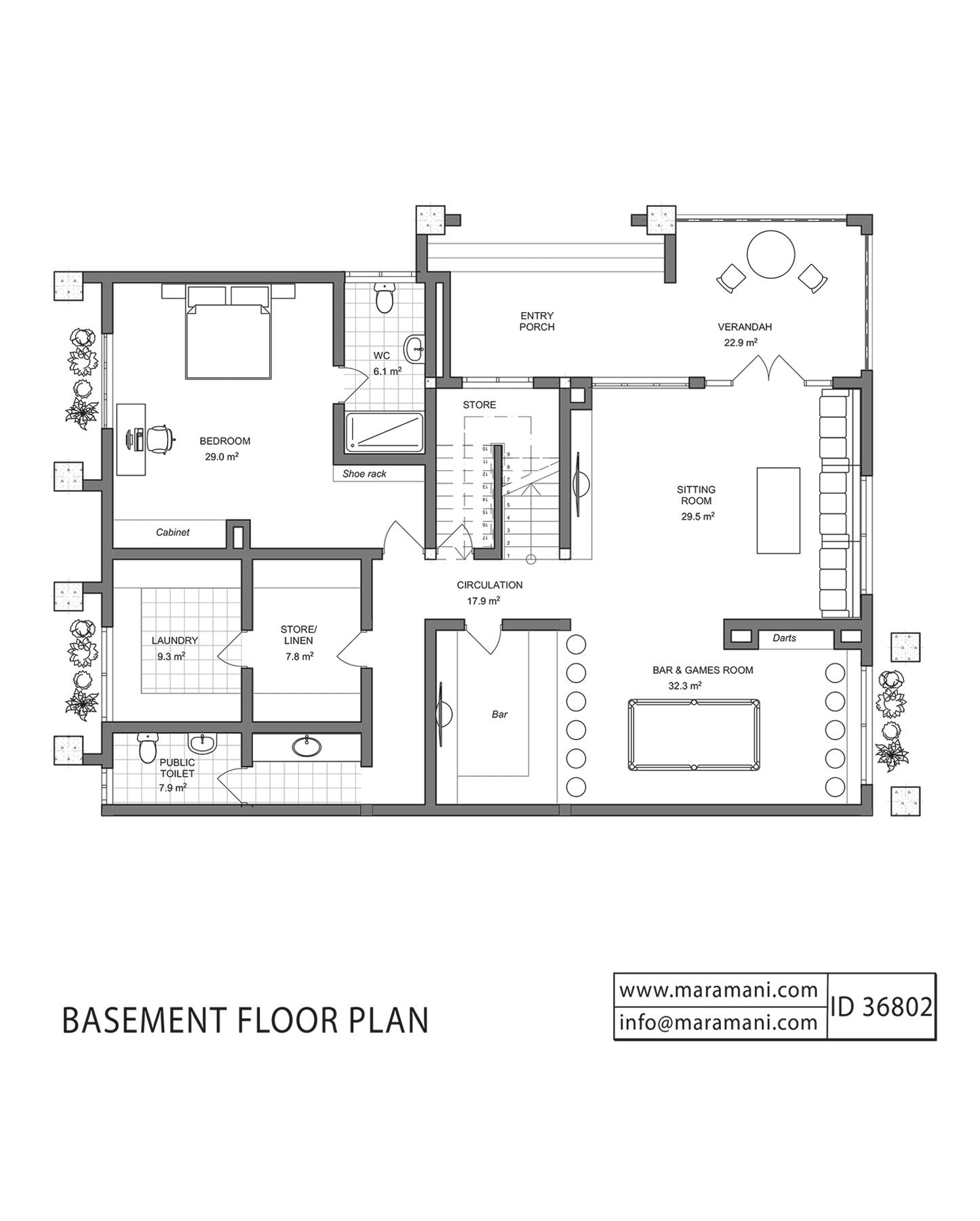

Floor plans
Roof plan
Sections
Elevations
Details
Door and window schedule
Schematic Electrical layout
Floor finishes
Entrance gate and perimeter wall
Septic tank and soakage pit
Structural Drawings

*Drawings delivered in PDF and DWG Format
