5 Bedroom Ultra modern mansion - ID 35901
Description
An ultra-modern mansion designed to offer a 21st-century living lifestyle. The house features flat roofs with a mix of concrete, steel, and glass that blend well for a homely feeling throughout all three levels. The building consists of three parts all connected to form a triangular shape with an opening in the middle for an indoor garden opening up all the way to the second floor where it is covered by translucent roofing sheets bringing in plenty of light. This intriguing design also allows you to enjoy magnificent views from all parts of the building be it sunrise or sundown.

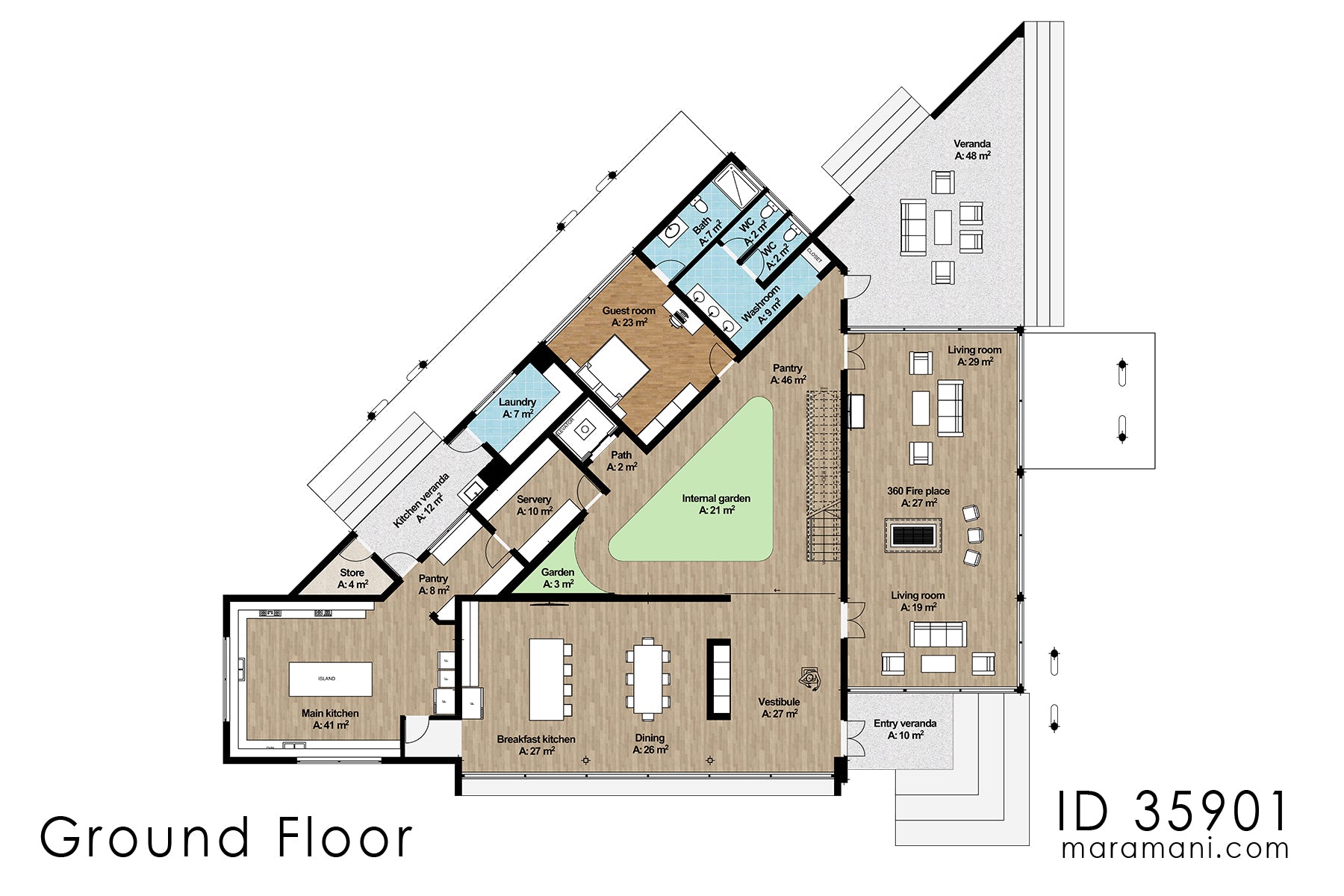

Upon entry, through the front door, you will walk straight into a lavish vestibule with access to the open-plan dining and breakfast kitchen, the indoor garden, and the living room. The expansive breakfast kitchen is a delight with a central island for entertaining and hosting guests, it is also served with direct access to the main kitchen and pantry that opens out to the laundry and the kitchen verandah. The living room has a 360-degree fireplace in the middle and plenty of seating space for hosting big gatherings. The ground floor also has an ensuite guest room, guest washrooms, a lift, and a large verandah for enjoying the outdoors.

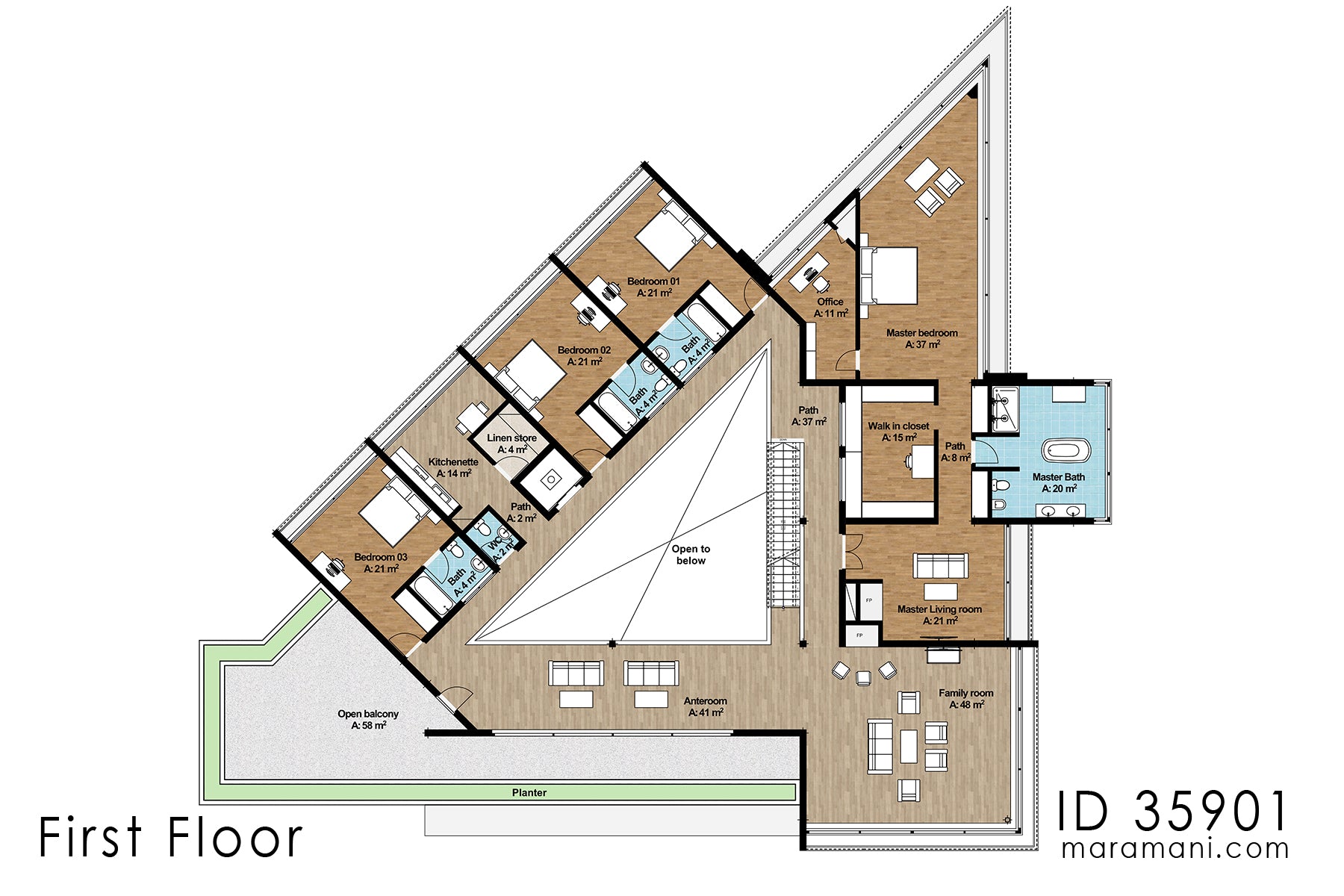

On the first floor, you find a spectacular-shaped luxurious master bedroom that has its own living room, office, walk-in closet, and bathroom with double vanities, double shower, and bathtub. The first floor also has a family room, 3 ensuite bedrooms, a guest washroom, a linen store, and a kitchenette.

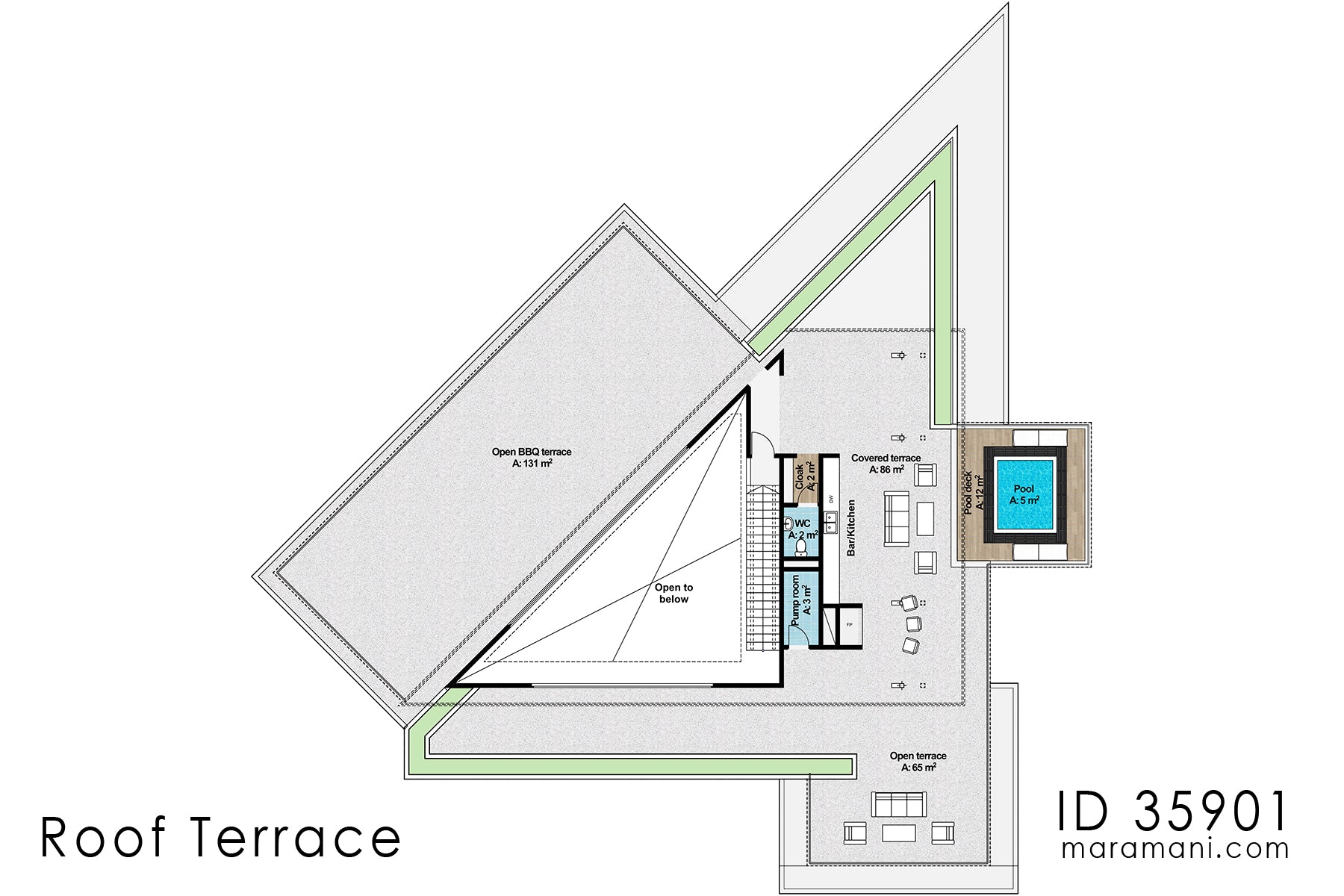

On the second floor, there is both a covered and open terrace, a bar kitchen, a washroom, and a plunge pool on one side. On the other side, you have a large open terrace perfect for hosting those big gatherings and BBQs all to complete this ultra-modern mansion.
Plan Details
| Features | Drawings List |
|
Stories: 3
Bedrooms: 5 Bathrooms: 9 Living room: 2 Dining: 1 Kitchen: 2 Pantry: 1 Servery: 1 Store: 1 Vestibule: 1 Fire place: 1 Veranda: 3 Internal garden: 1 Office: 1 Master Living room: 1 Family room: 1 Anteroom: 1 Kitchenette: 1 Linen store: 1 Open balcony: 1 Terrace: 3 Roof top Pool: 1 |
Foundation Plan *Drawings delivered in PDF and DWG Format |
Drawing Sets & Rooms Included
- ✔ Bedroom
- ✔ Bathroom
- ✔ Kitchen
- ✔ Dining Room
- ✔ Living Room
- ✔ Pantry
- ✔ Indoor Store Room
- ✔ Inside Fireplace
- ✔ Veranda
- ✔ Courtyard
- ✔ Office/Library
- ✔ Family Room
- ✔ Foyer
- ✔ Kitchenette
- ✔ Linen Store
- ✔ Balcony
- ✔ Terrace
- ✔ Rood Deck
- ✔ Foundation Plan
- ✔ Floor Plan
- ✔ Roof Plan
- ✔ Sections
- ✔ Elevations
- ✔ Details
- ✔ Door Schedule
- ✔ Window Schedule
- ✔ Floor Finishes
- ✔ Furniture Layout Plans
- ✔ Septic Tank & Soak Away Pit
- ✔ Structural Calculations
- ✔ Foundations Layout
- ✔ Foundation Details
- ✔ Column Details
- ✔ Staircase Details
- ✔ Slab Panels
- ✔ Beams Details
- ✔ Slab Reinforcement
- ✔ Roof Details
- ✔ Bills of Quantity (BOQ)
