5 Bedroom House Design - ID 25701

Plan Specifications

  • 2 stories

  • 5 bedrooms

  • 7 baths

  • 494 sq m

  • Length 23m

  • Structural Drawings

  • Width 18m

$549.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

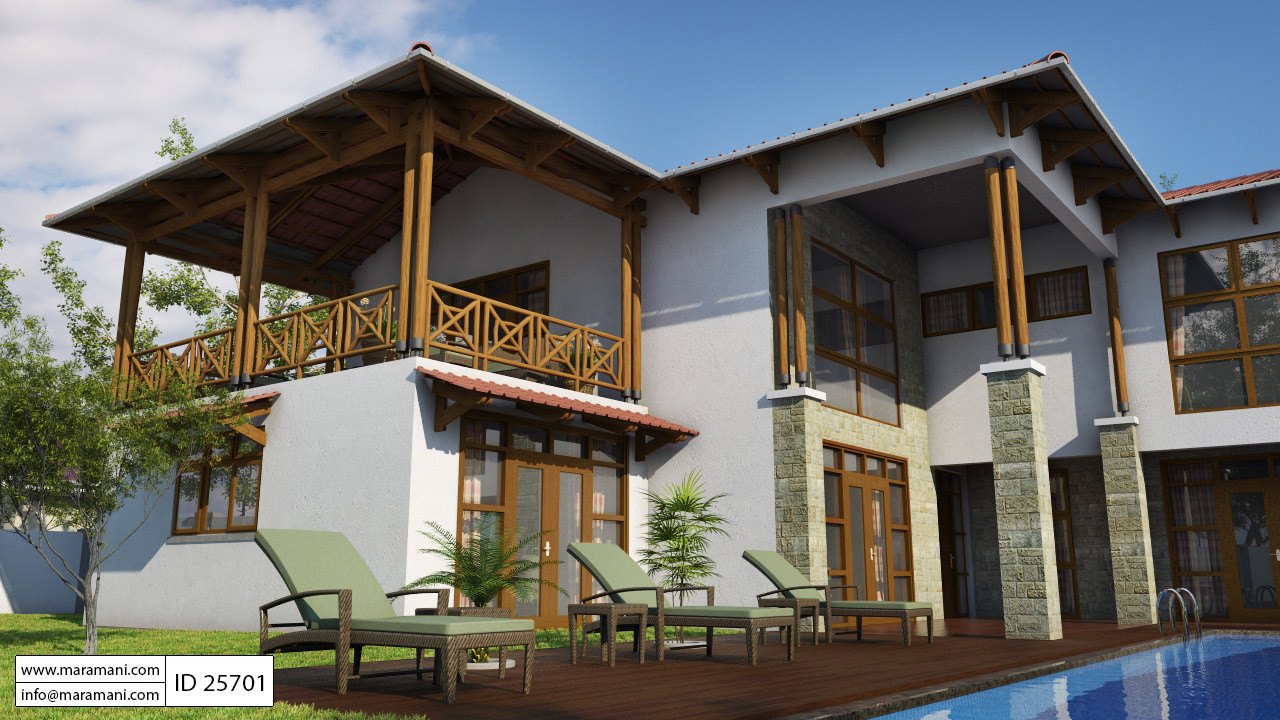

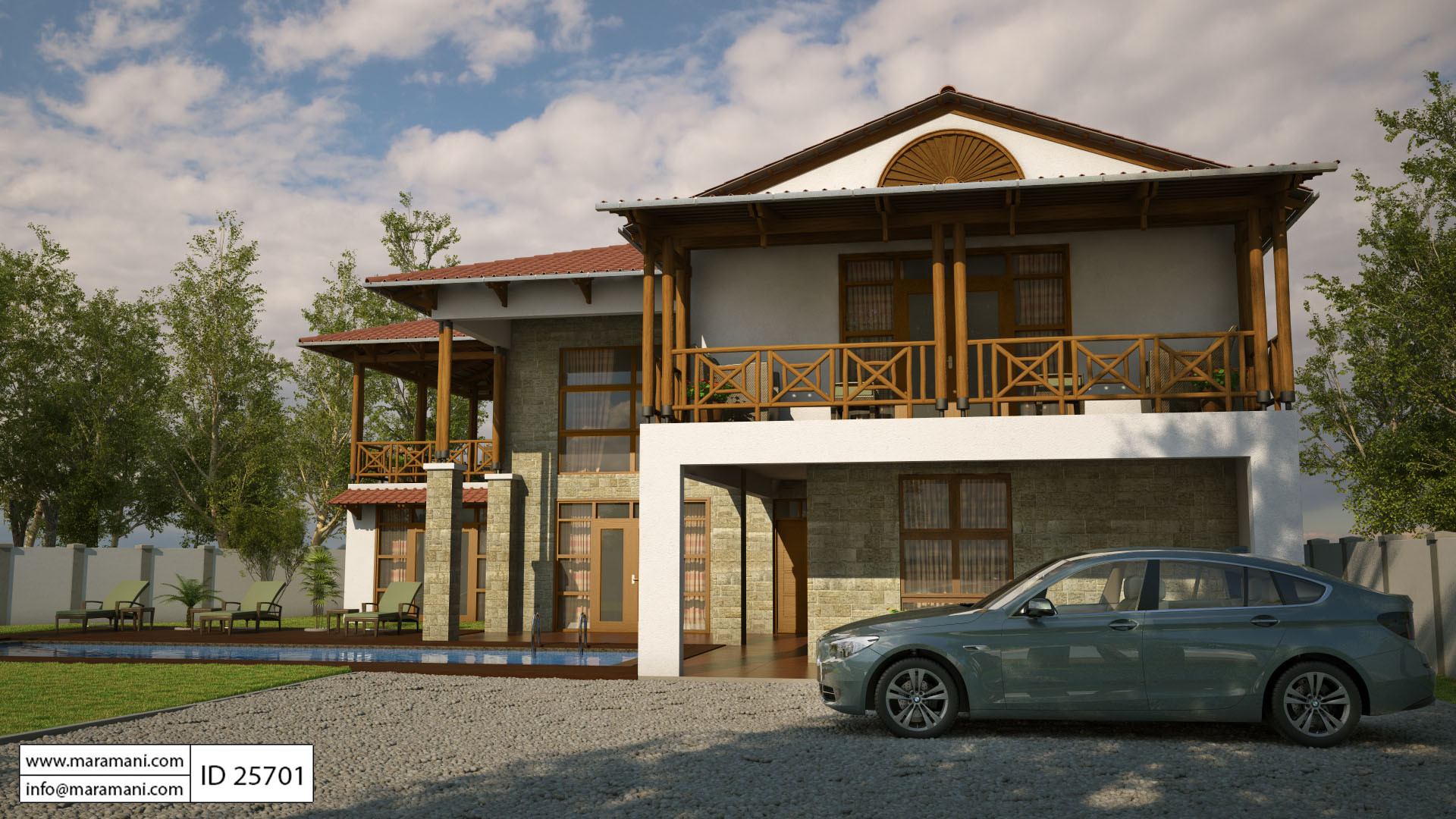

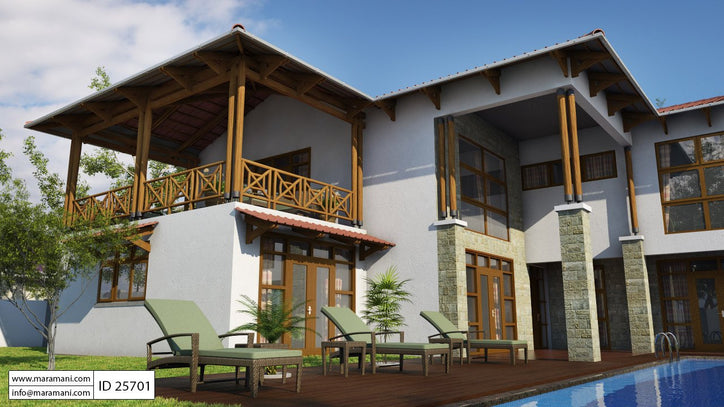

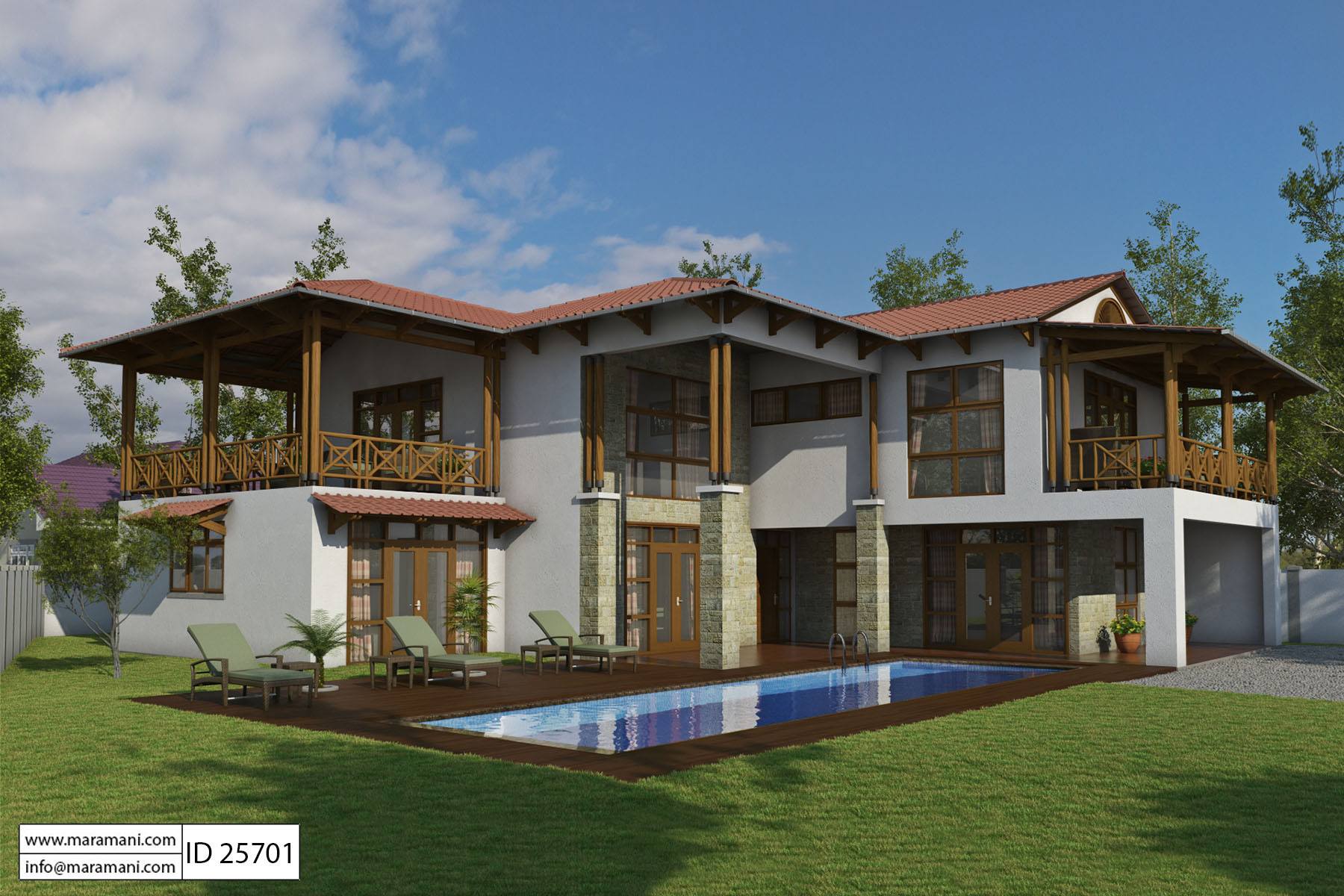

A Bali style house designed for hot tropical climates with covered verandahs and open spaces. Wood is one of the main building materials giving it a natural and elegant look. Large balconies allow hosting of friends and parties while overlooking the garden and/ or swimming pool or just relaxing in the evening.

Plan Details

Features Drawings List
Stories: 2
Bedroom: 5
Self-contained rooms: 5
Toilets: 7
Kitchen: 1
Dining room: 1
Living room: 1
Balcony: 2
Verandah: 2
Laundry: 1
Store: 3

Foundation plan

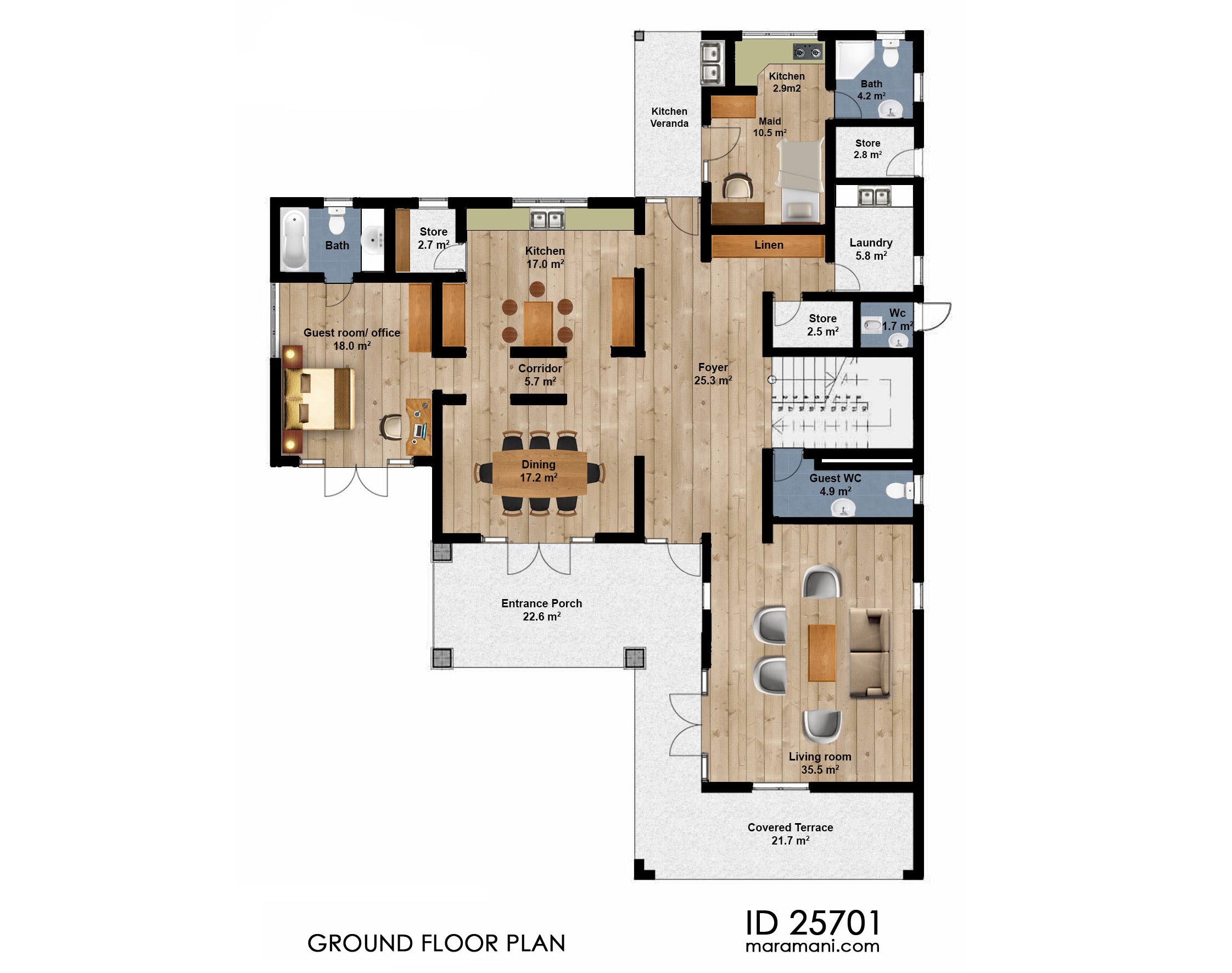

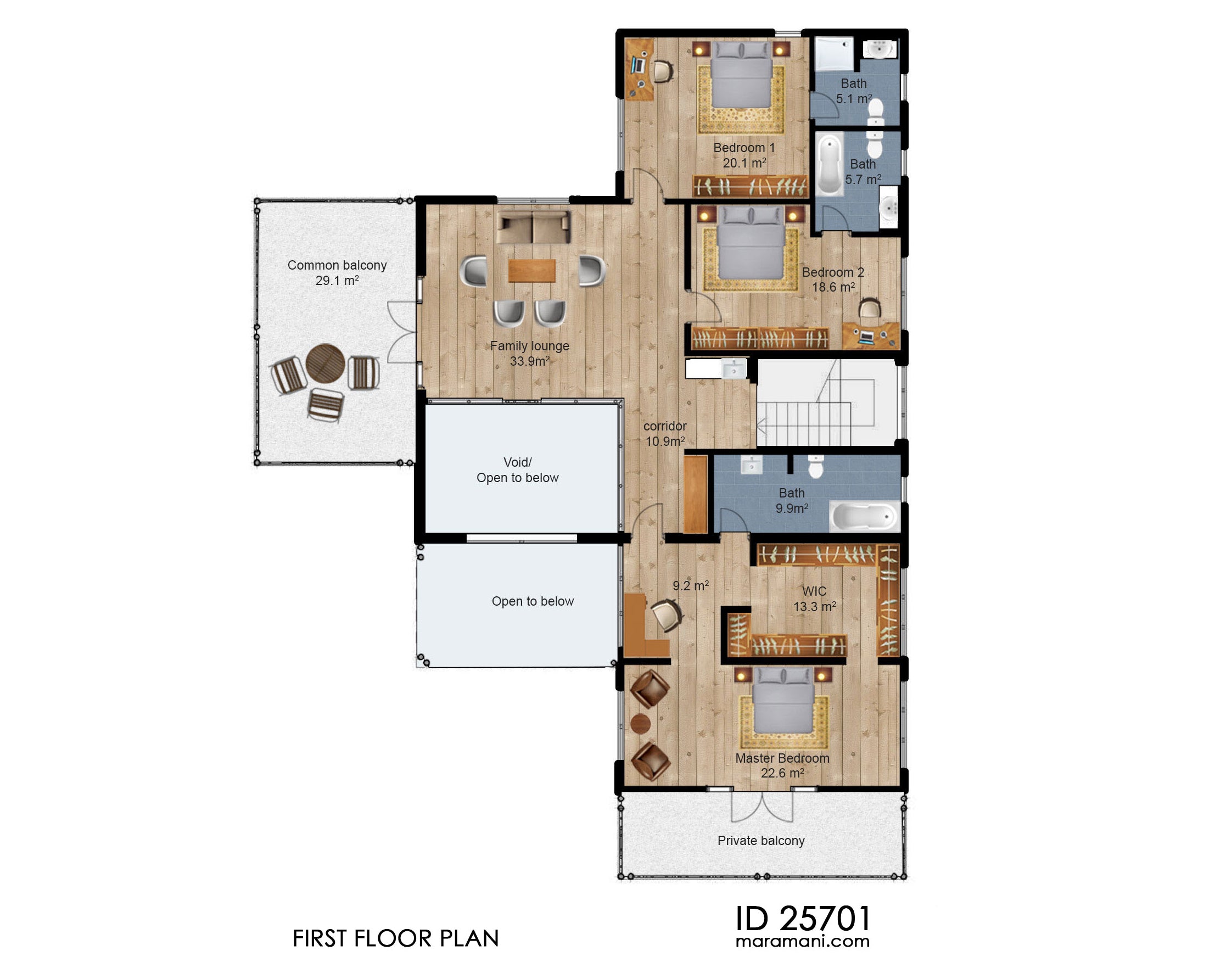

Floor plans
Roof plan
Sections
Elevations
Details
Schematic Electrical layout
Entrance gate and perimeter wall
Septic tank and soakage pit
Structural Drawings

*Drawings delivered in PDF and DWG Format
