5 Bedroom House Design - ID 25601

Plan Specifications

2 stories
5 bedrooms
6 baths
479 sq m
Length 31m
Width 20m

$549.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

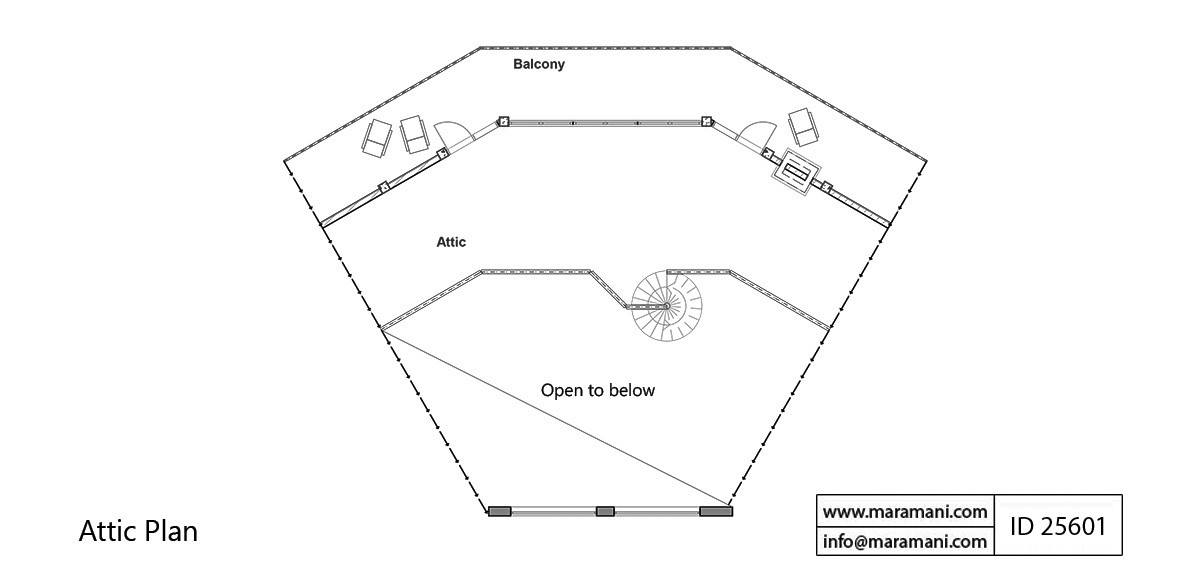

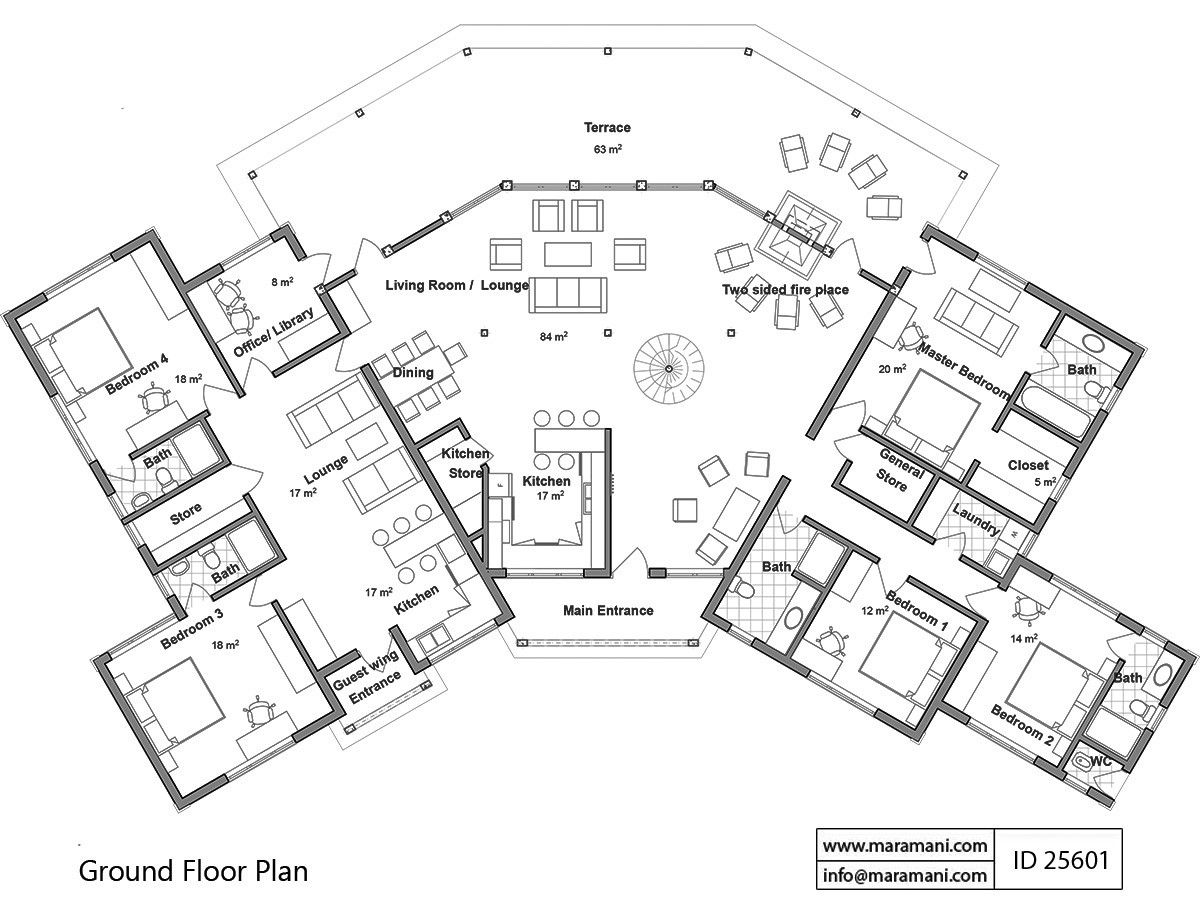

This proves not to be a cheap plan but one that is lavishly structured Luxury Mansion Floor Plan to bring about the nature of the environment. A very large open living room with an open attic creates a beautiful central space for the whole family. An attached annex can be used for guests or extended family. A double sided fire place is functional both from the living room and from the very large front verandah.

Plan Details

Features

Drawings List

Stories: 2
Bedroom: 5
Self-contained rooms: 4
Toilets: 6
Kitchen: 2
Dining room: 2
Living room: 2
Balcony: 1
Verandah: 2
Office: 1
Laundry: 1
Store: 3

Foundation plan
Floor plans
Sections
Elevations
Details for staircase, eaves, fireplace,
balustrades, column base etc
Schematic electrical layout
Door and window schedule and details
Perimeter wall and gate
Cold and hot water supply
Waste water drainage
Septic tank and soakage pit
High resolution renders
Structural Drawings
Bills of Quantities without rates (Excel)
*Drawings delivered in PDF and DWG Format
