4 Bedroom glass facade house - ID 14405

Plan Specifications

1 story
4 baths
4 bedrooms
706 sq m
Length 33m
Structural Drawings
Width 33m

$1,138.80

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

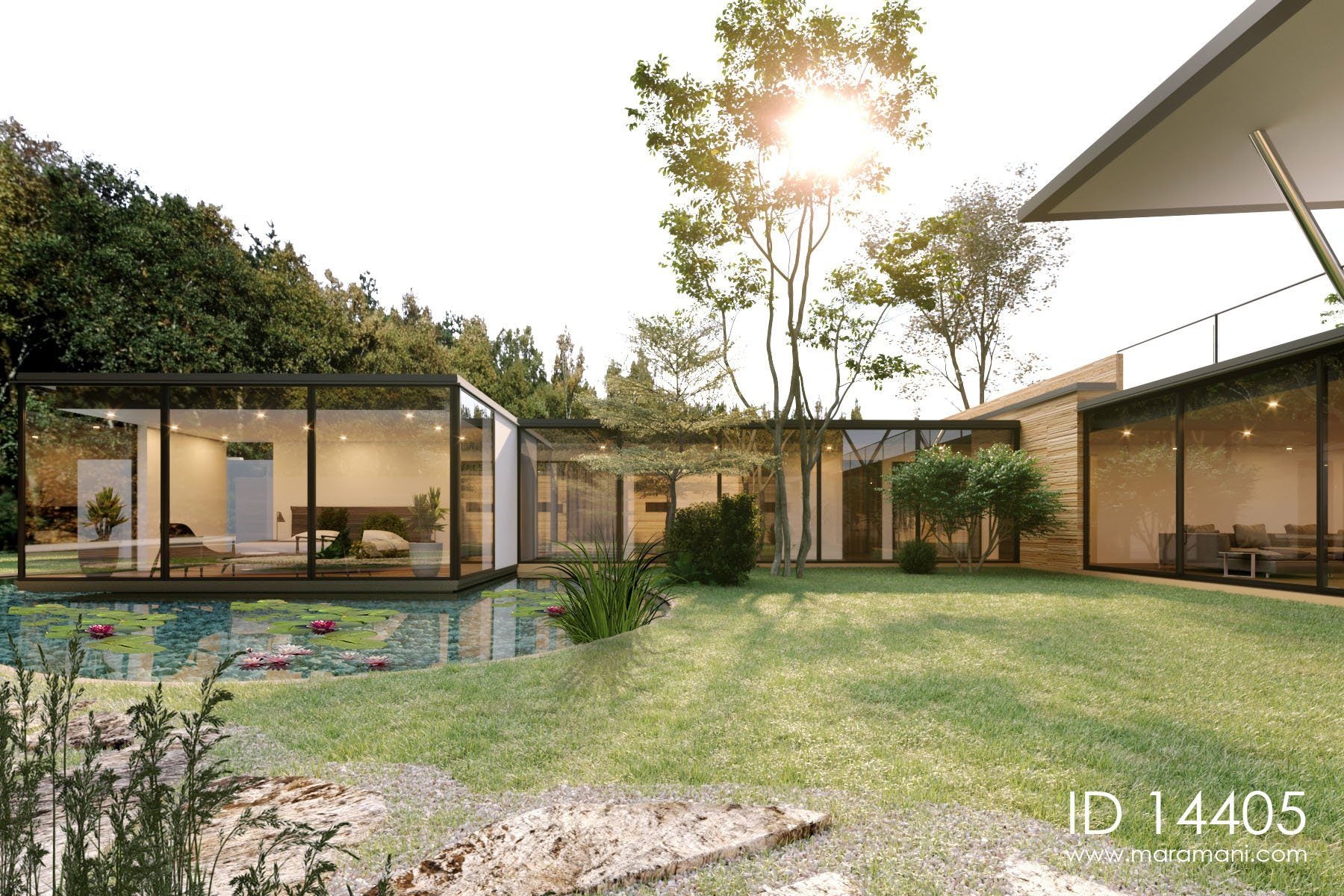

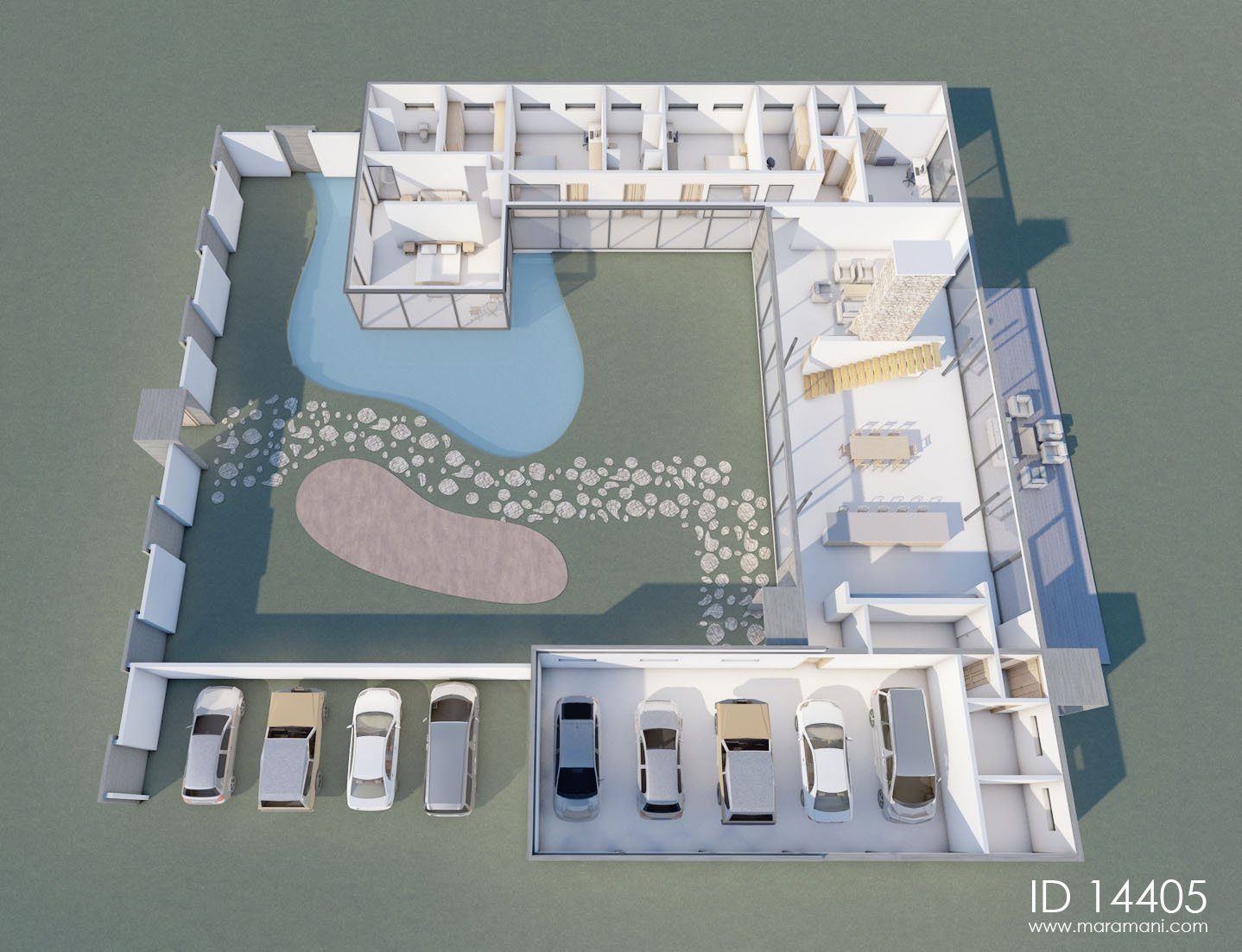

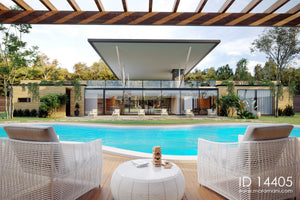

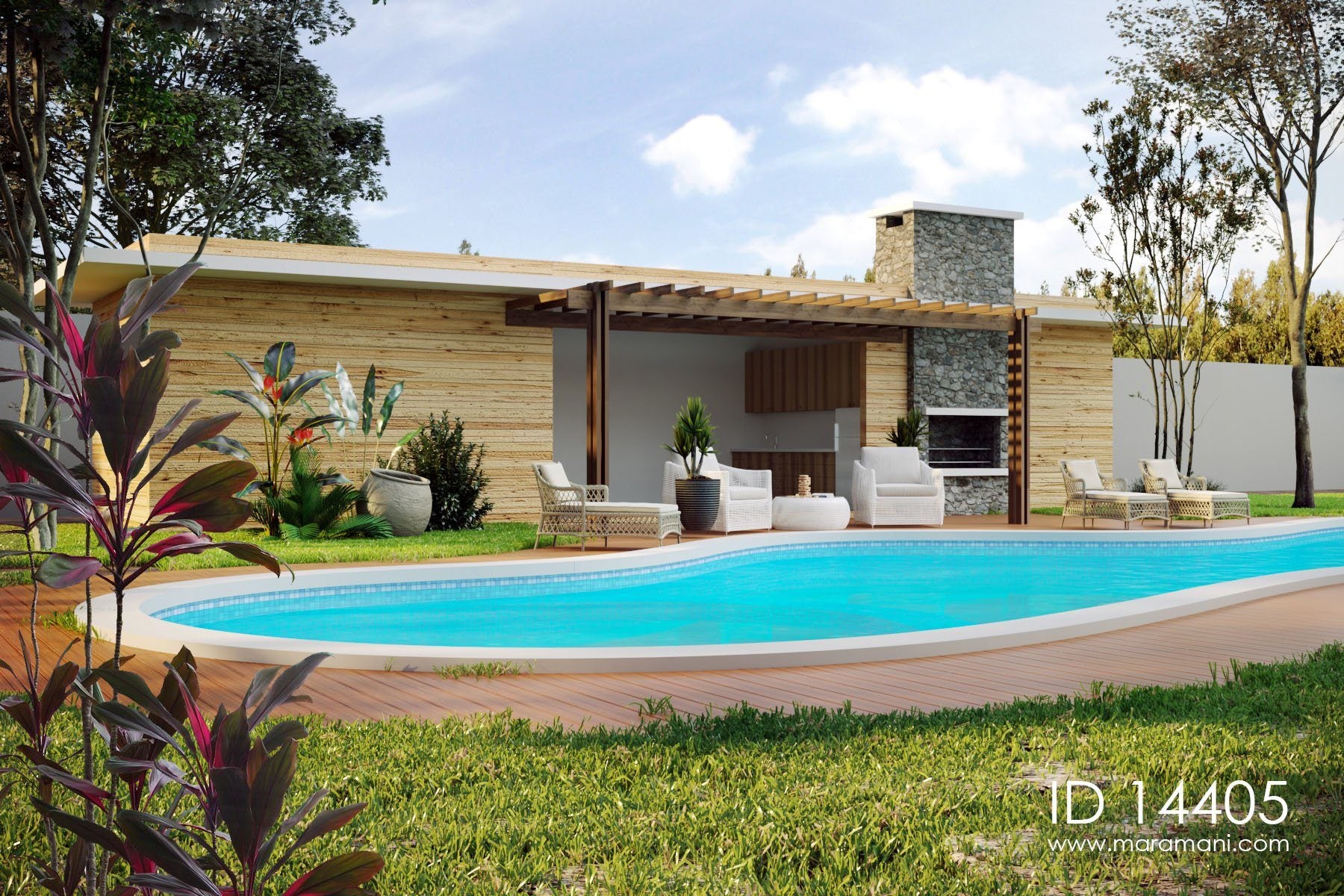

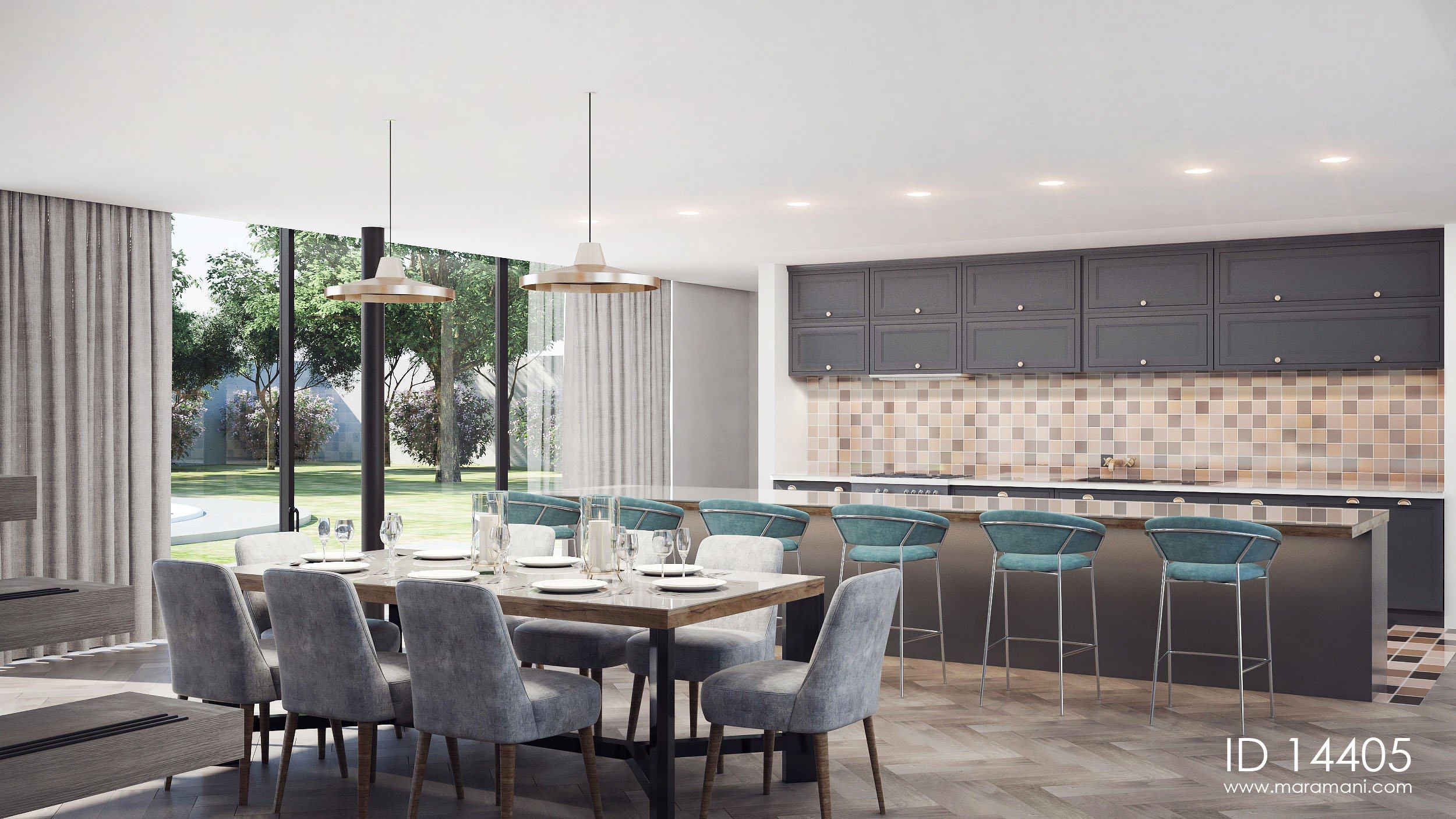

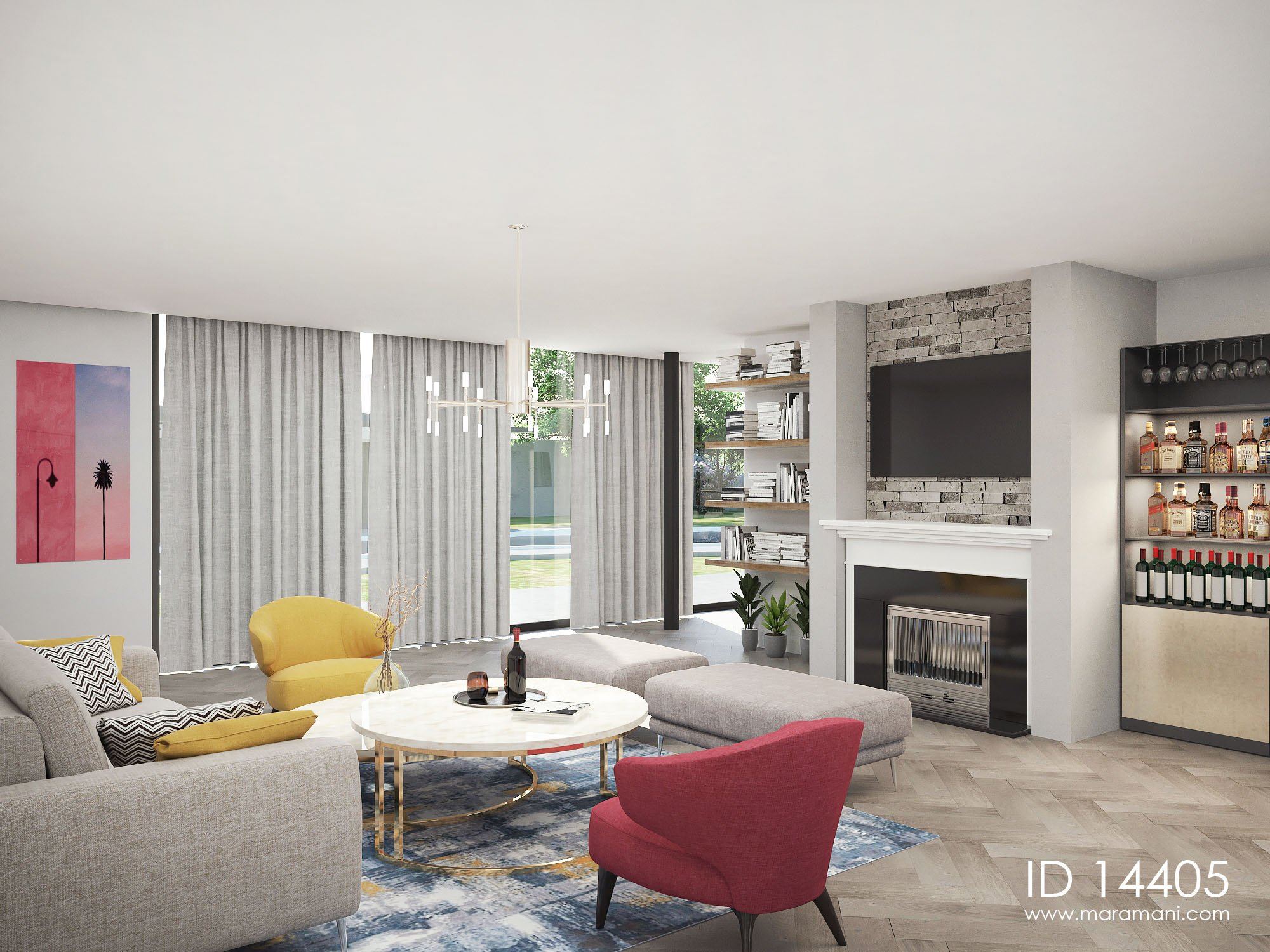

A full glass facade contemporary 4 bedroom house with a private courtyard. With security being a big challenge for contemporary buildings with large windows this plan solves it brilliantly but having a private secure courtyard to which all rooms open out to. The facade facing the swimming pool contains a hidden electric roller shutter that closes to fully protect the perimeter of the building. A luxurious fully glazed master bedroom is placed to float in the middle of a pool which also acts as a barrier to give privacy to the master bedroom. The open plan kitchen and dining is intricately separated from the living room by a block wall and open staircase. The staircase leads to an open-air terrace which is partly covered by a single slope roof hovering above the building. A 5 car garage connects directly to the main house giving access to the kitchen, laundry, and pantry. A truly magnificent piece of architecture.

Plan Details

Features

Drawings List

Stories: 1
Bedroom: 4
Self-contained rooms: 2
Toilets: 4, Kitchen: 1
Dining room: 1
Living room: 1
Verandah: 1
Library/ Office: 1
Store: 3, Laundry: 1
Roof terrace: 1
Garage: 5 cars

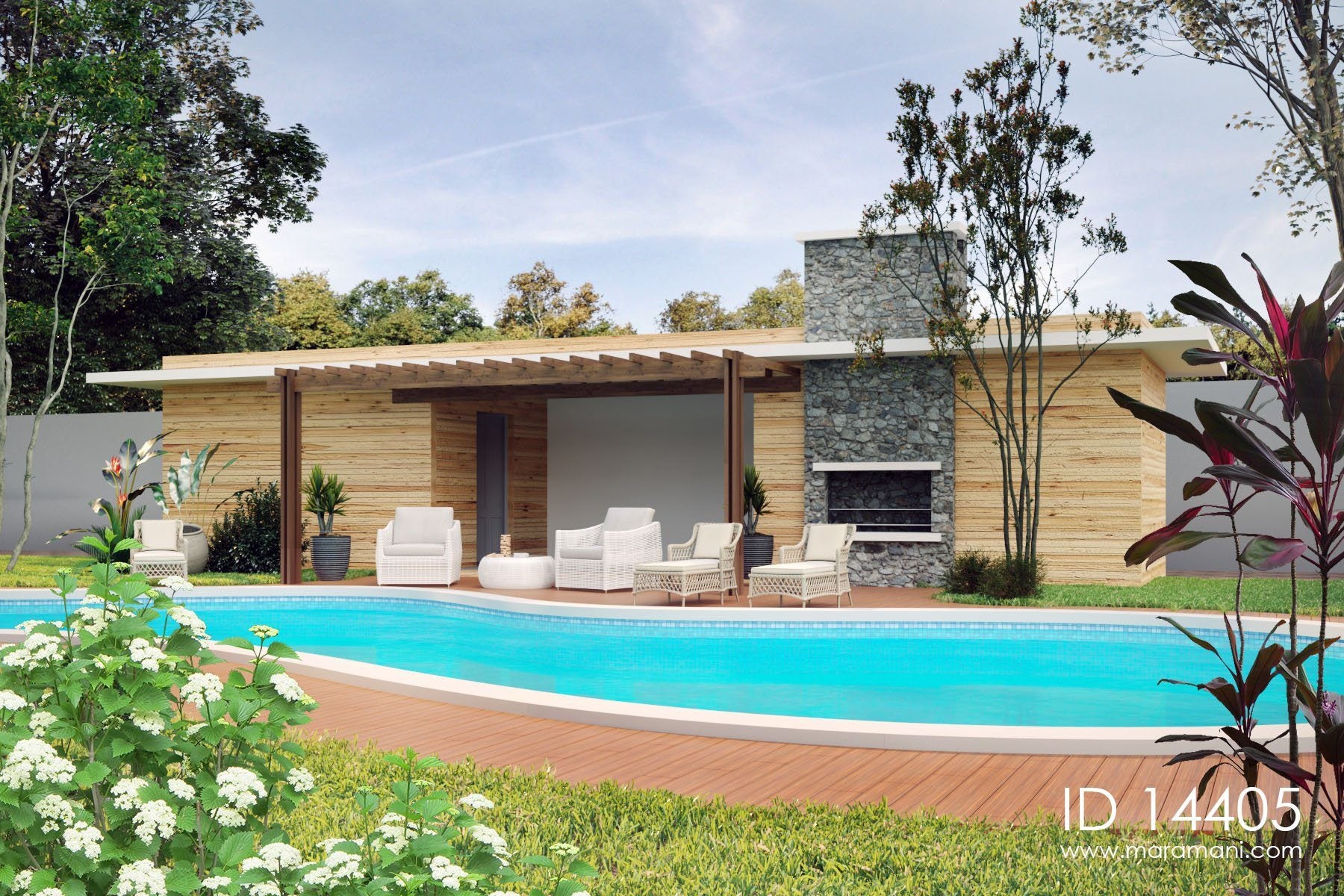

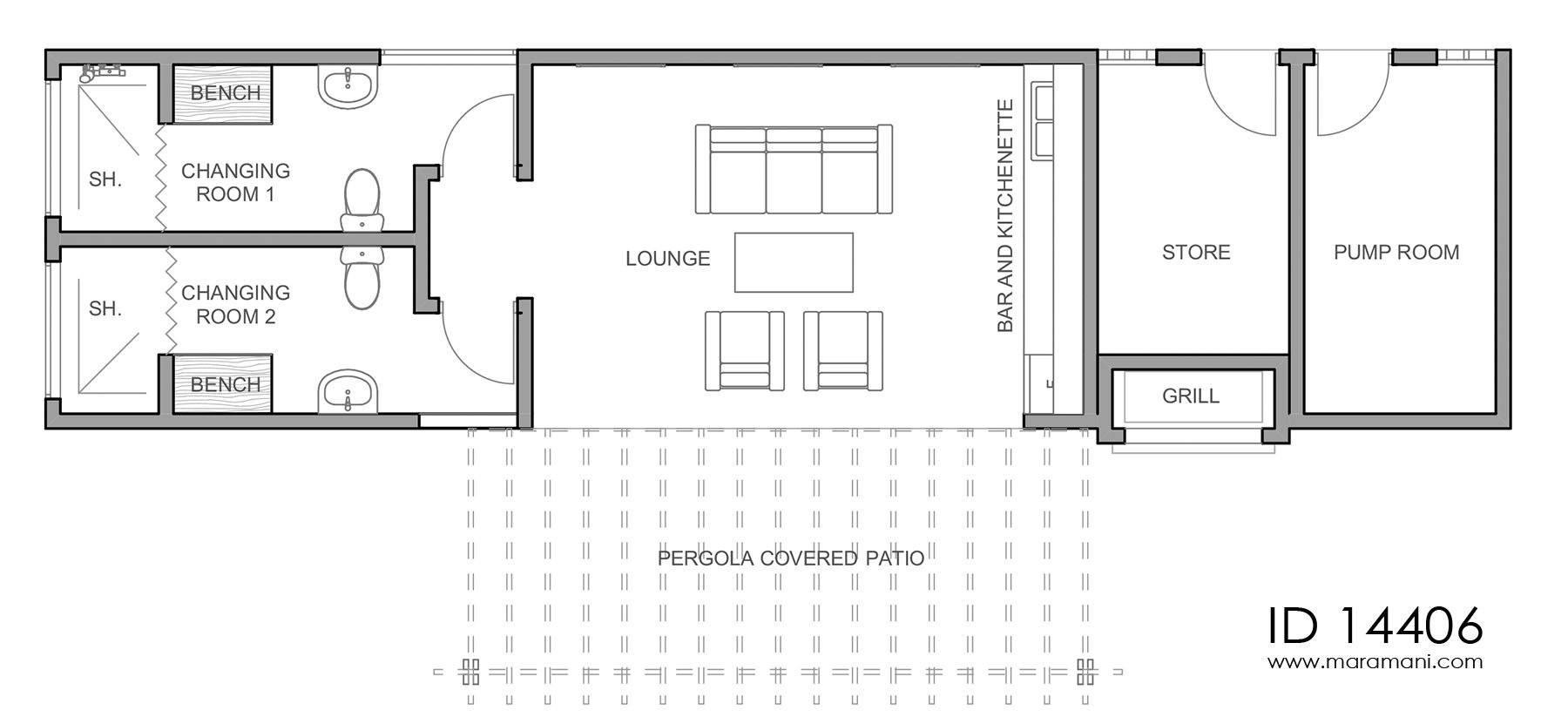

Pool house: 1

Foundation plan

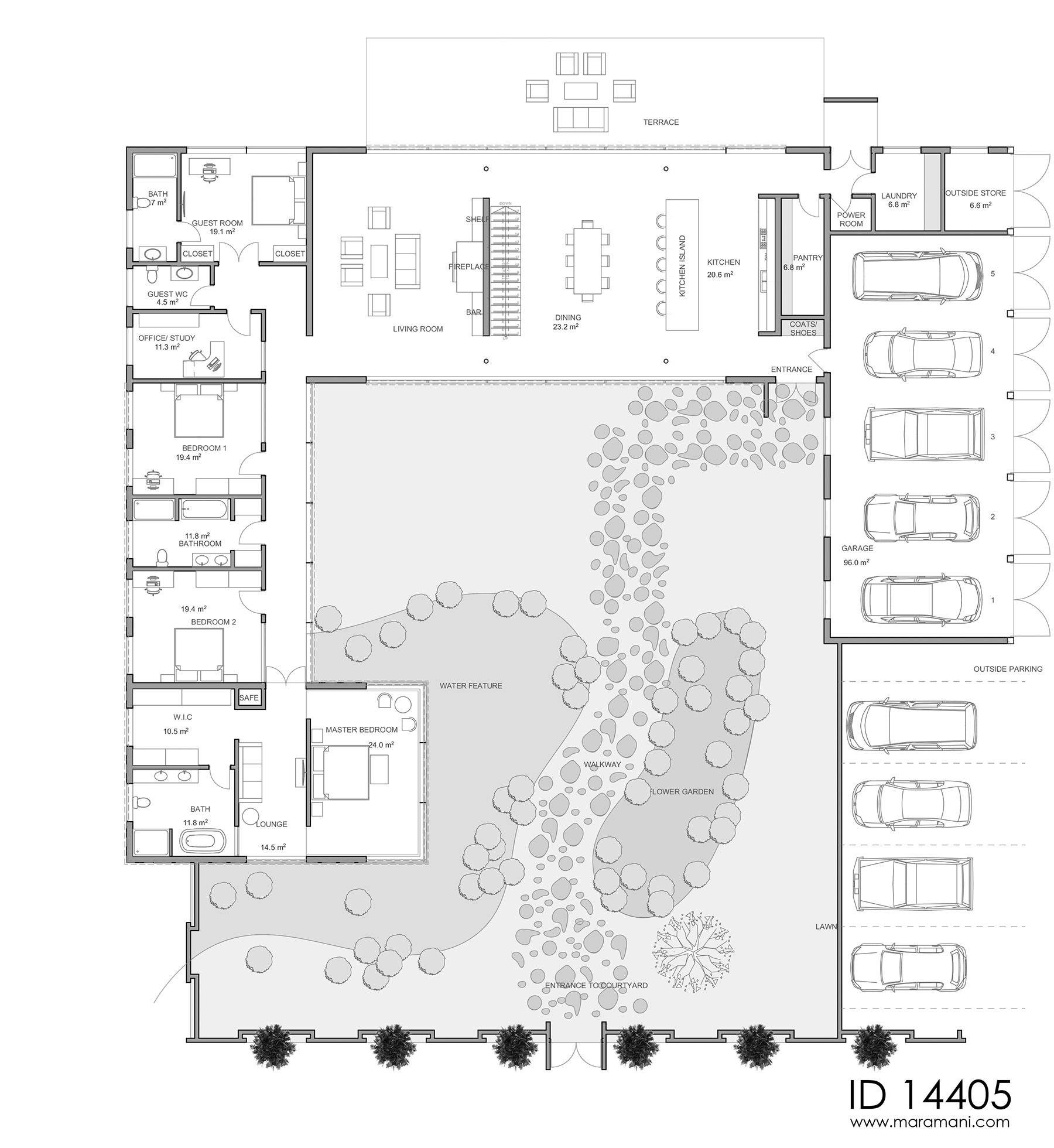

Floor plans, Roof plan
Sections
Elevations
Details
Furniture layout
Floor finishes plan
Door and window schedule
Schematic electrical layout
Clean and waste water layout
Septic tank and soak pit
Structural Drawings

*Drawings delivered in PDF and DWG Format
