3 Bedroom House Plan with roof deck - ID 33401

Plan Specifications

  • 2 stories

  • 3 bedrooms

  • 4 baths

  • 200 sq m

  • Length 15m

  • Structural Drawings

  • Width 8m

$538.80

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

This simple three-bedroom house plan is ideal for a modern family building in the city or the suburbs. On the ground floor, you have all the common facilities, a spacious open-plan living room, and a kitchen with a breakfast counter for enjoying meals. Behind the kitchen, there is a store and laundry as well as a kitchen verandah. On the ground floor, you also have the guest toilet so you can keep the upstairs completely to yourself. From the living room, you have access to the staircase and on the first floor, you have 3 ensuite bedrooms. Due to its compact size, this house plan can fit on a rather small plot measuring only 11 meters x 20 meters (36 ft x 65 ft). It has a partially covered parking in front of the living room which can be extended using a canopy. The staircase continues to the roof deck which holds water storage tanks while the rest of the roof can be used for BBQs and relaxation.

Plan Details

Features Drawings List
Stories: 2
Bedroom: 3
Self-contained rooms: 3
Toilets: 4
Kitchen: 1
Living room: 1
Balcony: 1
Verandah: 2
Laundry: 1
Store: 3
Roof deck: 1

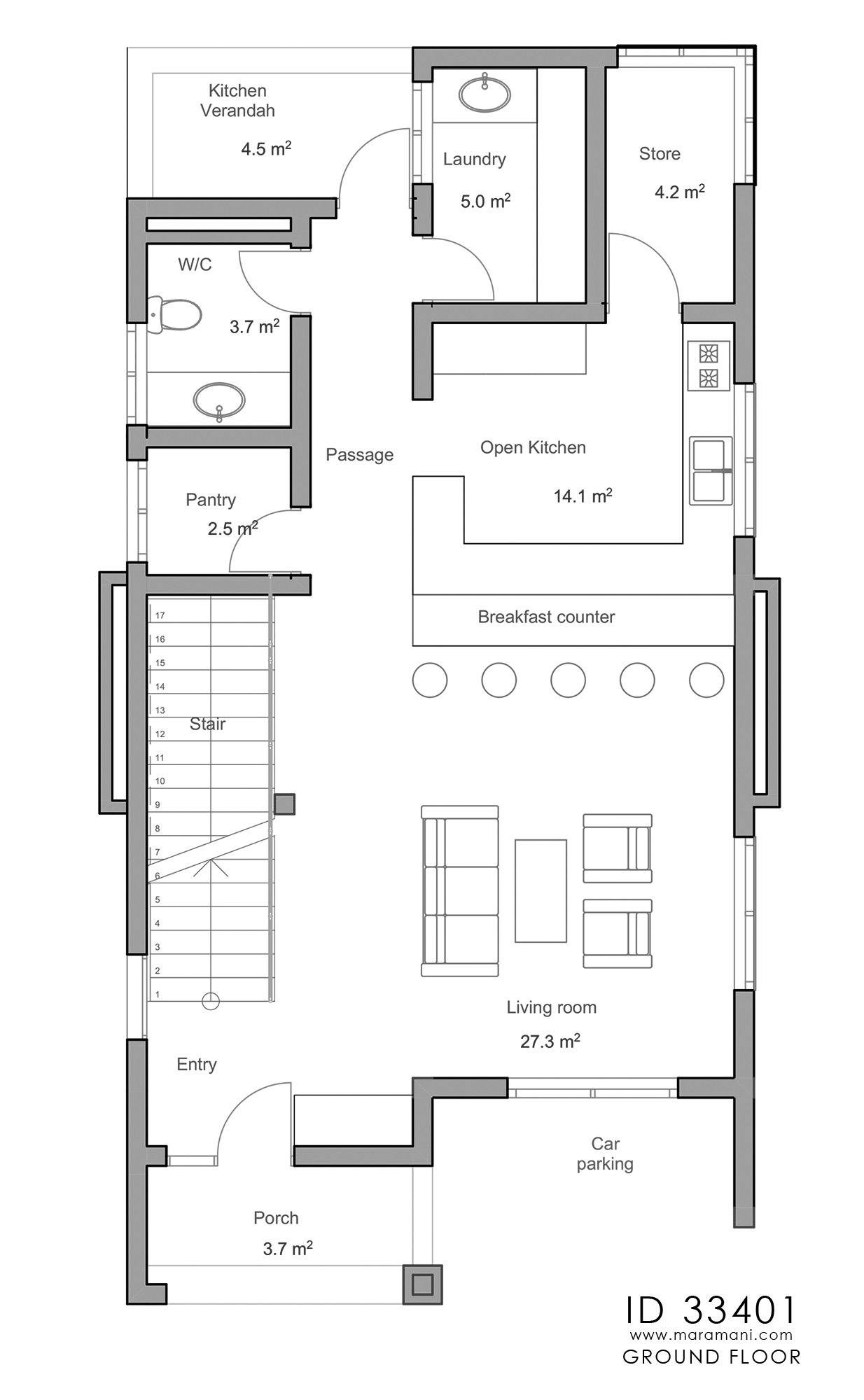

Foundation Plan

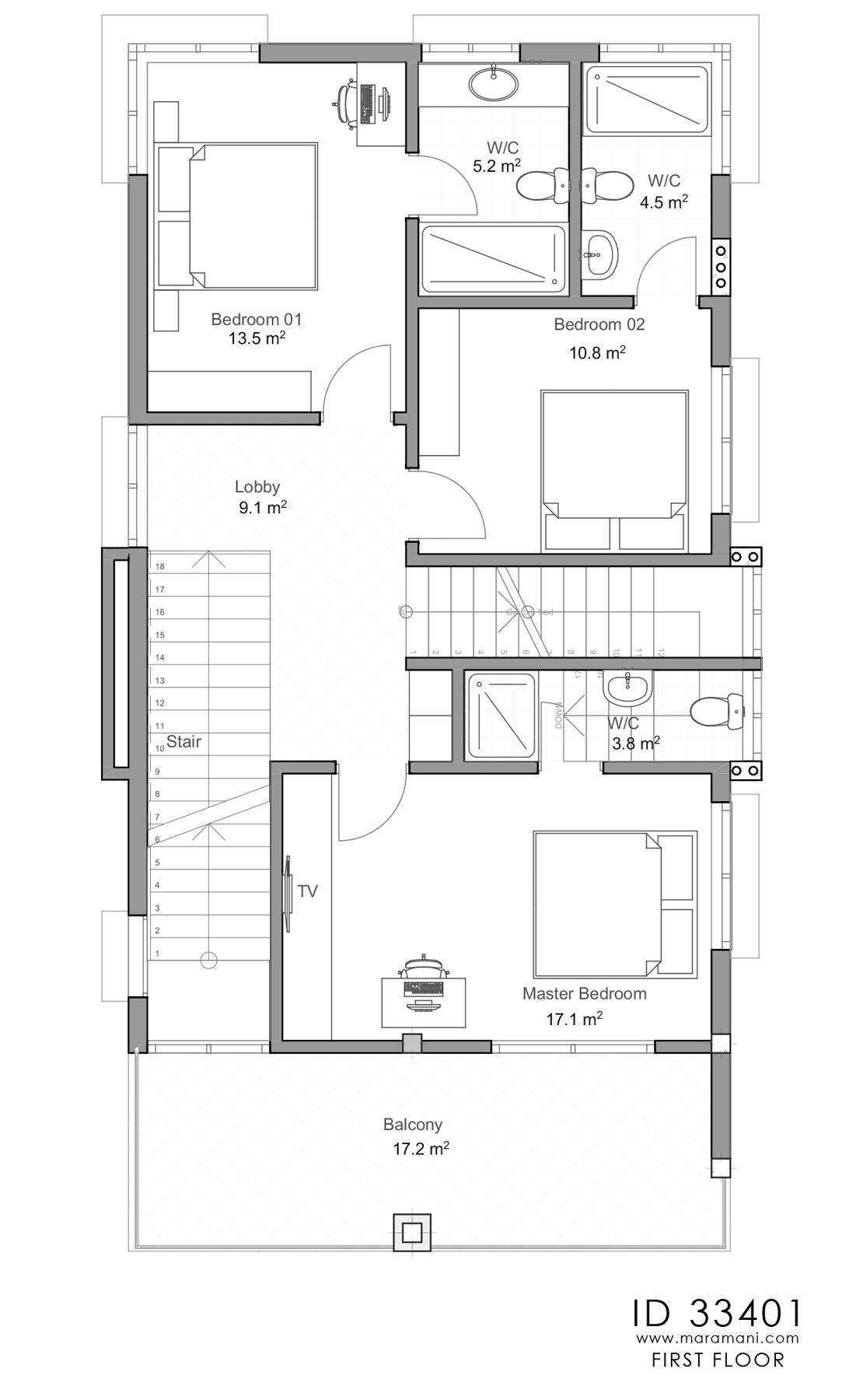

Floor Plan

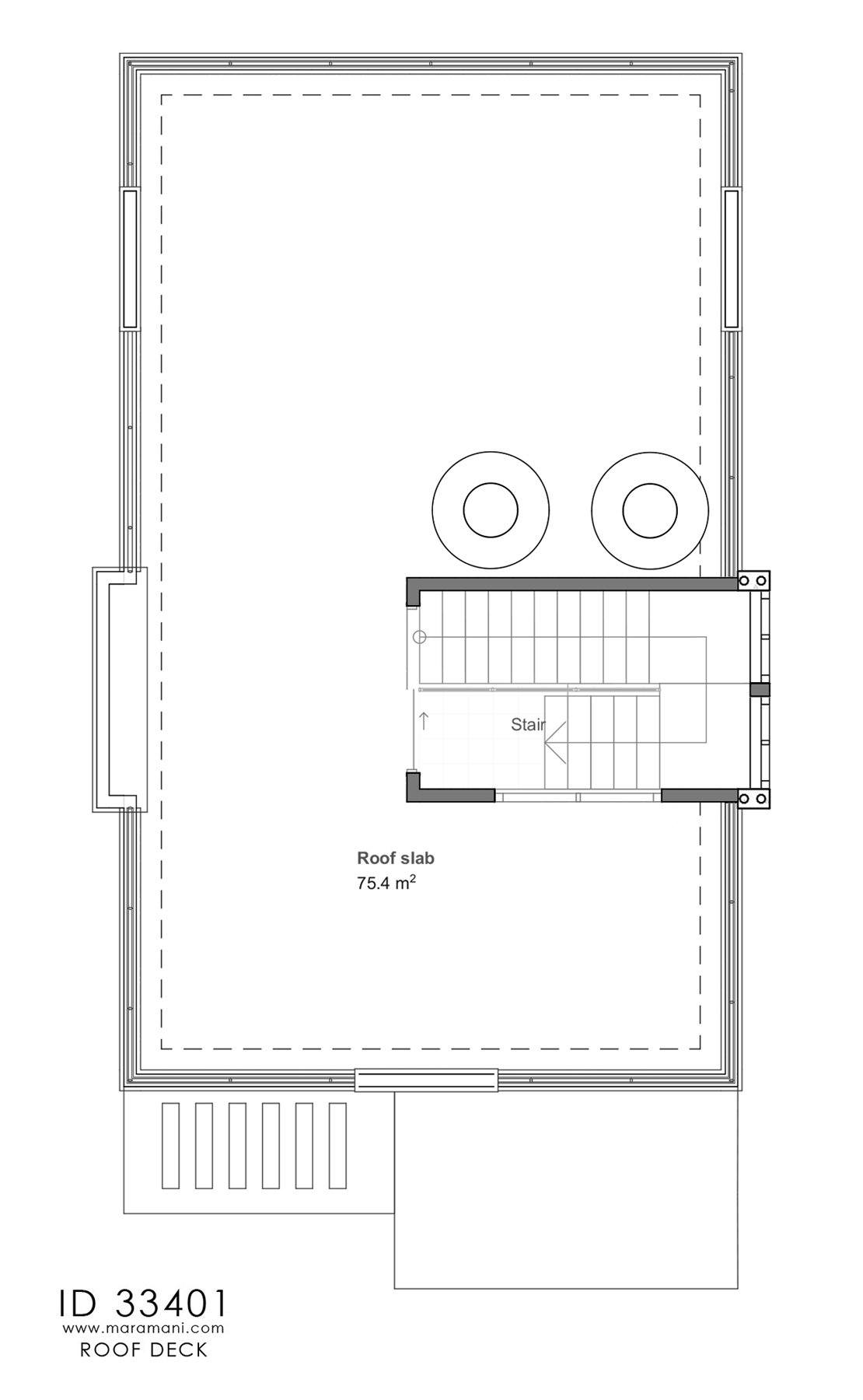

Roof Plan
Sections
Elevations
Door and Window Schedule
Hot and cold water system
Waste and foul water drainage
Schematic electrical layout
Furniture layout
Structural Drawings
Bills of quantities (without rates)
Schedule of materials

*Drawings delivered in PDF and DWG Format
