3 Bedroom House Plan - ID 23405
Description
Here’s a huge mansion floor plan with every detail you could imagine that would be great if built in a large compound tucked away from the city hassles. Numerous studies have shown that living closer to nature not only improves mental and physical health immediately, but the change is sustained for a significant period. Where possible architects strive to create designs that will bring the building's occupant closer to nature and this is especially true in this design. Large wooden windows span the entire length of the building which is held up by wooden poles. The plan is open to allow natural ventilation and light to every corner of the building. A family room is positioned to allow a great view of the property and nature while allowing direct access to an impressive roof deck and roof garden. A truly perfect house for a mid-sized family who wants to live a long healthy life.
Plan Details
| Features | Drawings List |
| Stories: 2 Bedroom: 3 Self-contained rooms: 3 Toilets: 4 Kitchen: 1 Dining room: 1 Living room: 1 TV room/Study: 1 Family room: 1 Open terrace: 3 Store: 1 |

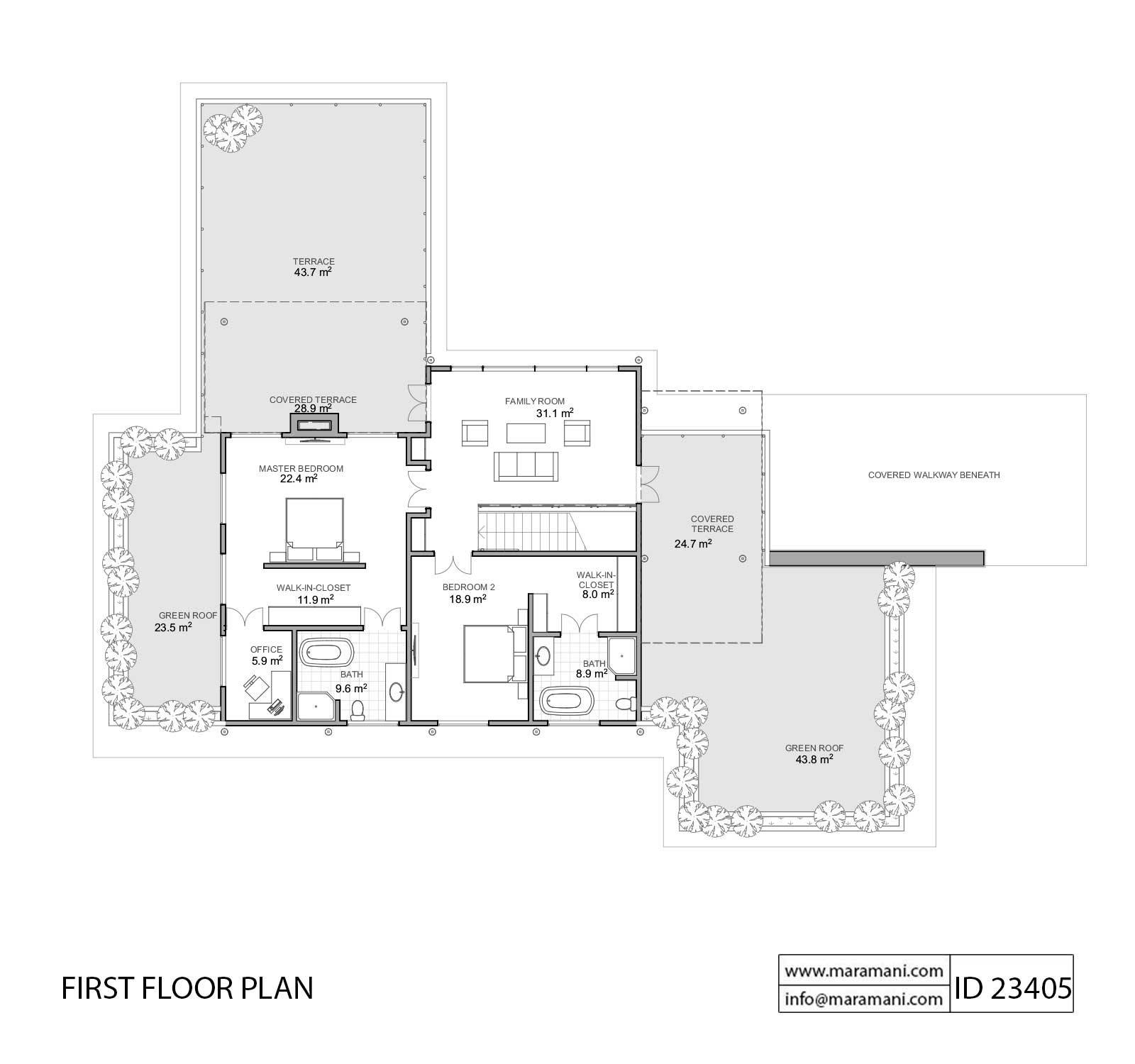

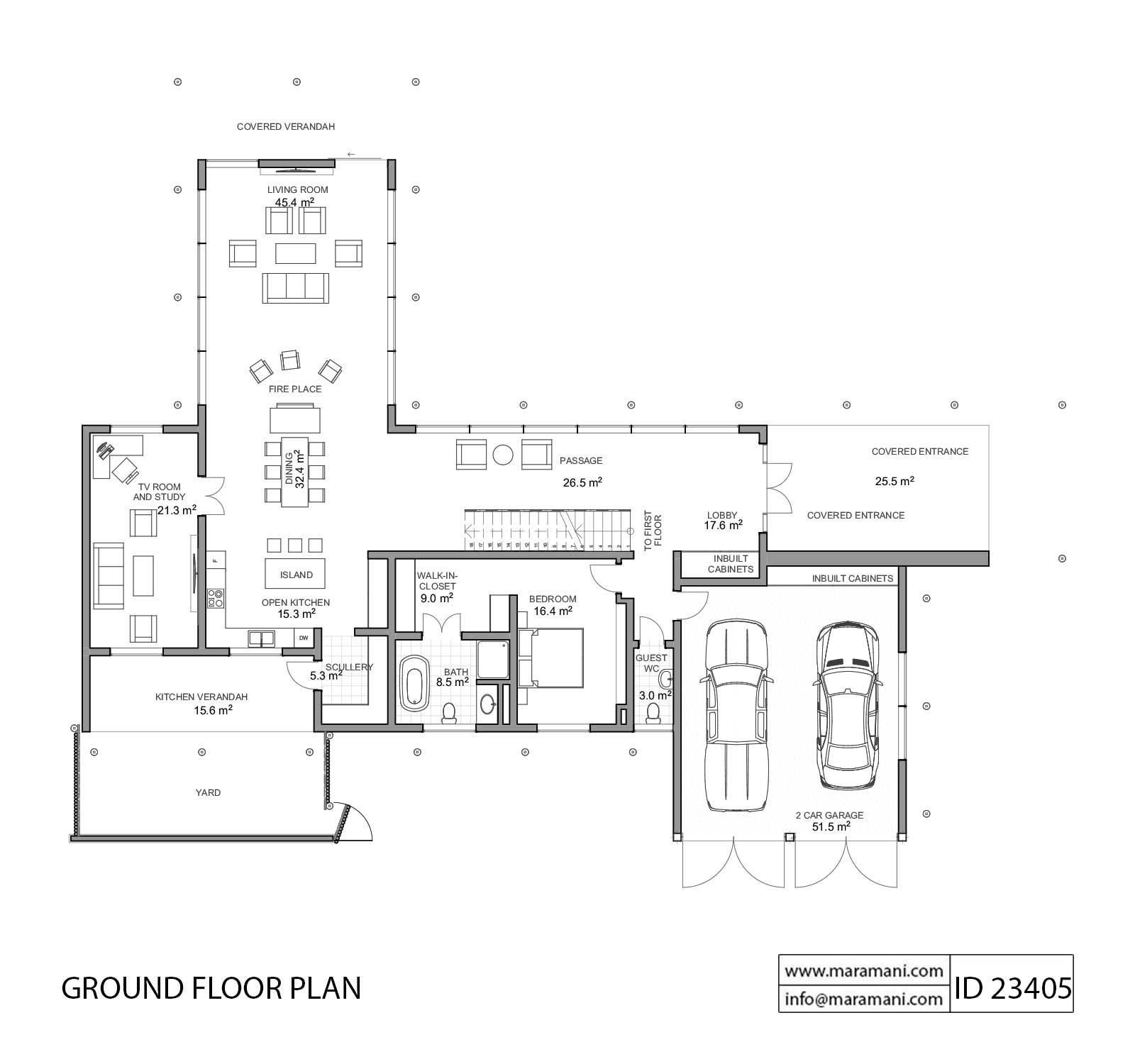

Floor plan *Drawings delivered in PDF and DWG Format |
Drawing Sets & Rooms Included
- ✔ Master Bedroom
- ✔ Bedroom
- ✔ WC
- ✔ Kitchen
- ✔ Dining Room
- ✔ Living Room
- ✔ TV Room/Cinema/Theater
- ✔ Family Room
- ✔ Terrace
- ✔ Indoor Store Room
- ✔ Foundation Plan
- ✔ Floor Plan
- ✔ Roof Plan
- ✔ Sections
- ✔ Elevations
- ✔ Floor Finishes
- ✔ Schematic Electrical Layout
- ✔ Door Schedule
- ✔ Septic Tank & Soak Away Pit
- ✔ Window Schedule
- ✔ Details
- ✔ Staircase Details
- ✔ Column Details
- ✔ Foundations Layout
- ✔ Foundation Details
- ✔ Roof Details
- ✔ Slab Reinforcement
- ✔ Beams Details
- ✔ Concrete Mixes & Details
- ✔ Electrical Panel
- ✔ Lighting & Switches
- ✔ Power Outlets
- ✔ Bills of Quantity (BOQ)
