3 Bedroom House Plan - ID 23202


Upgrade to premium
to view floor plans

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Construction cost calculator

ITEM Construction Cost Estimates
1: Substructure (Foundations and slabs)
2: Superstructure (Beams and walls)
3: Roof
4: Doors
5: Windows
6: Finishes
7: Decorations
8: Plumbing Installations
9: Electrical Installations

Available to
premium account
holders only

Note: Important information about cost estimates

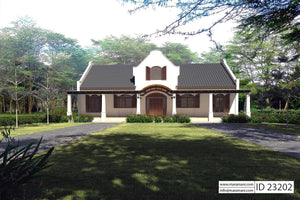

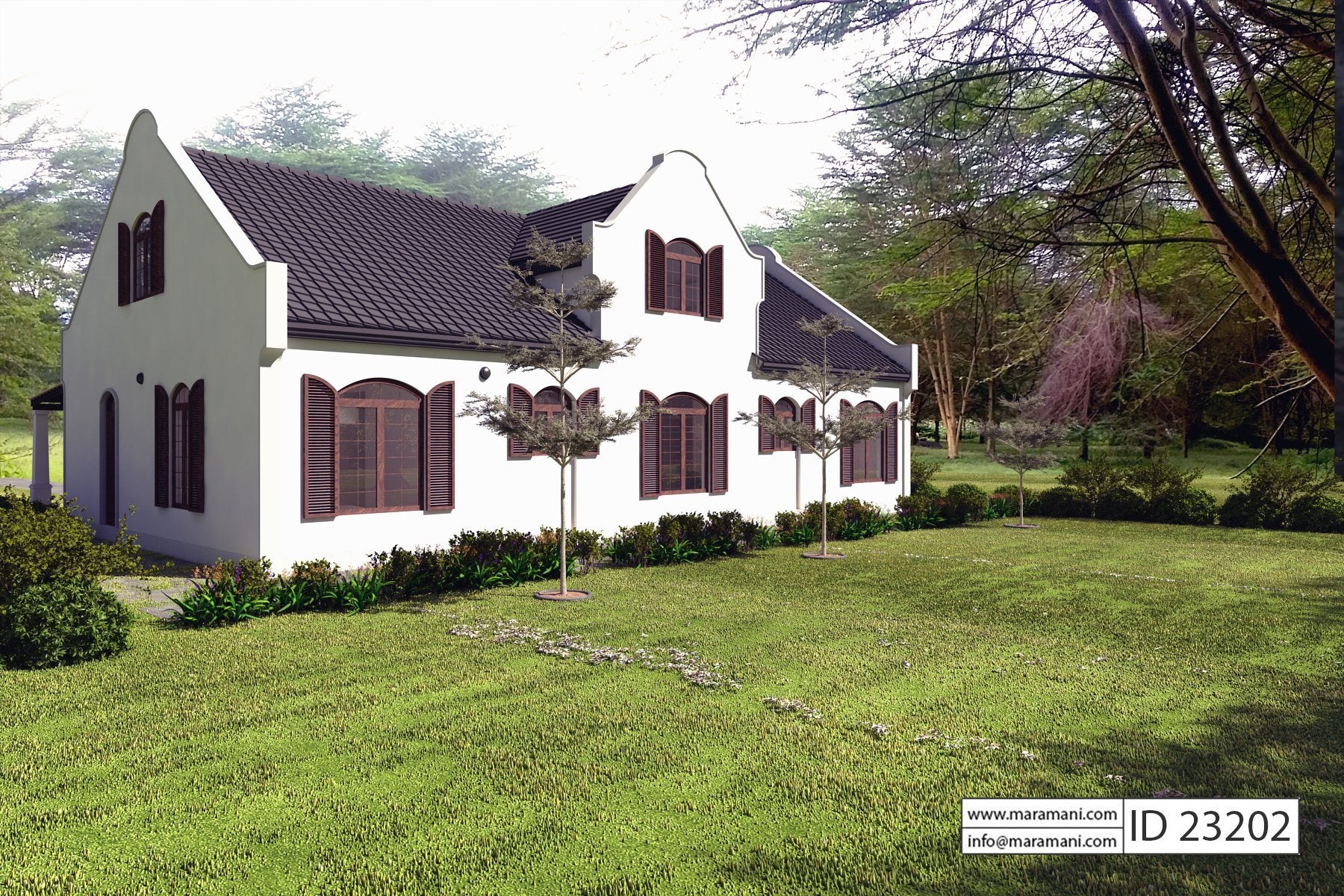

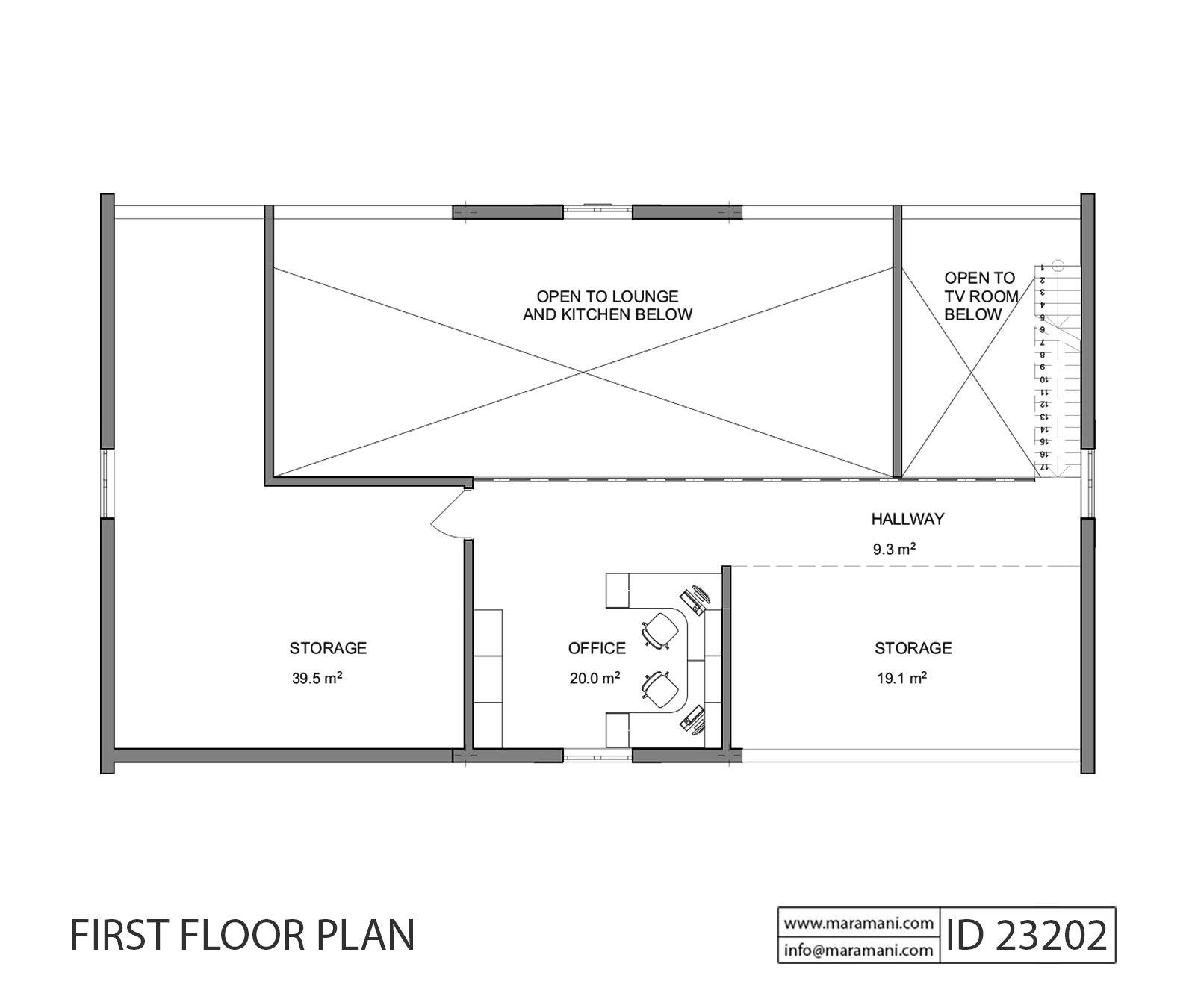

  • Cape Dutch architecture is a traditional Afrikaner architectural style found mostly in the Western Cape of South Africa. The style was prominent in the early days (17th century) of the Cape Colony, and the name derives from the fact that the initial settlers of the Cape were primarily Dutch. The style has roots in medieval Netherlands, Germany, France and Indonesia. If you are looking for a simple building that stands out then this is it. Three bedrooms, open kitchen, TV room and an attic with a large office and storage.
Dimension Width : 17 meters
Depth : 13 meters

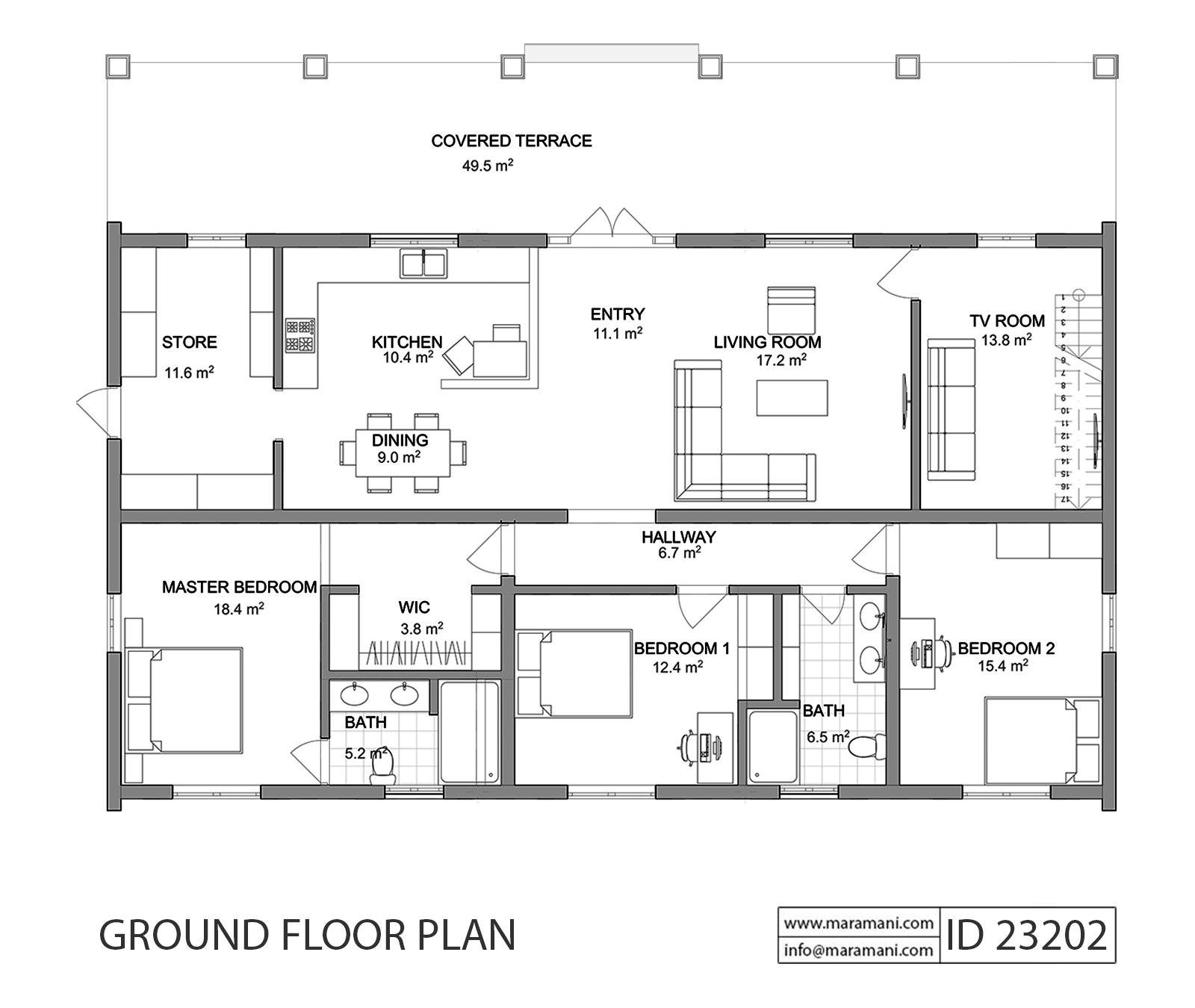

Ground Floor Plan Open areas: 52 m2
Enclosed area: 255 m2
Total area: 307 m2
Features Stories: 2
Bedroom: 3
Self-contained rooms: 1
Toilets: 2
Kitchen: 1
Dining room: 1
Living room: 1
Verandah: 1
TV room: 1
Office: 1
Laundry/store/pantry: 1
Architectural Drawings List Foundation plan
Floor plans
Roof plan
Door and window schedule
Schematic electrical layout
Construction details
Structural Drawings List All relevant structural drawings

All drawings delivered in PDF and DWG format
