2 Bedroom 4-plex building - ID 28801

Plan Specifications

  • 2 stories

  • 8 bathrooms

  • 8 bedrooms

  • 630 sq m

  • Length 14.8m

  • Structural Drawings

  • Width 26.1m

$1,149.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

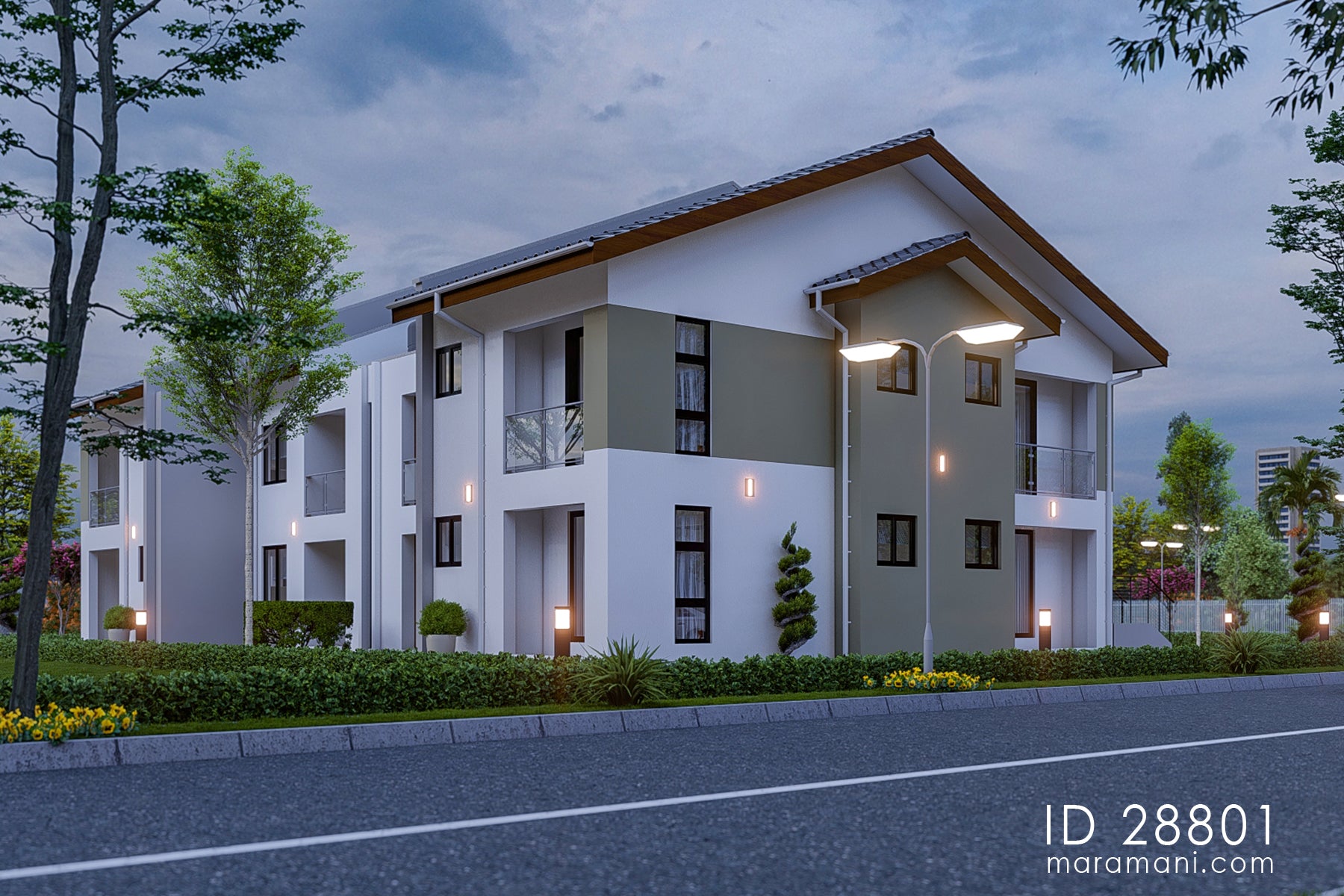

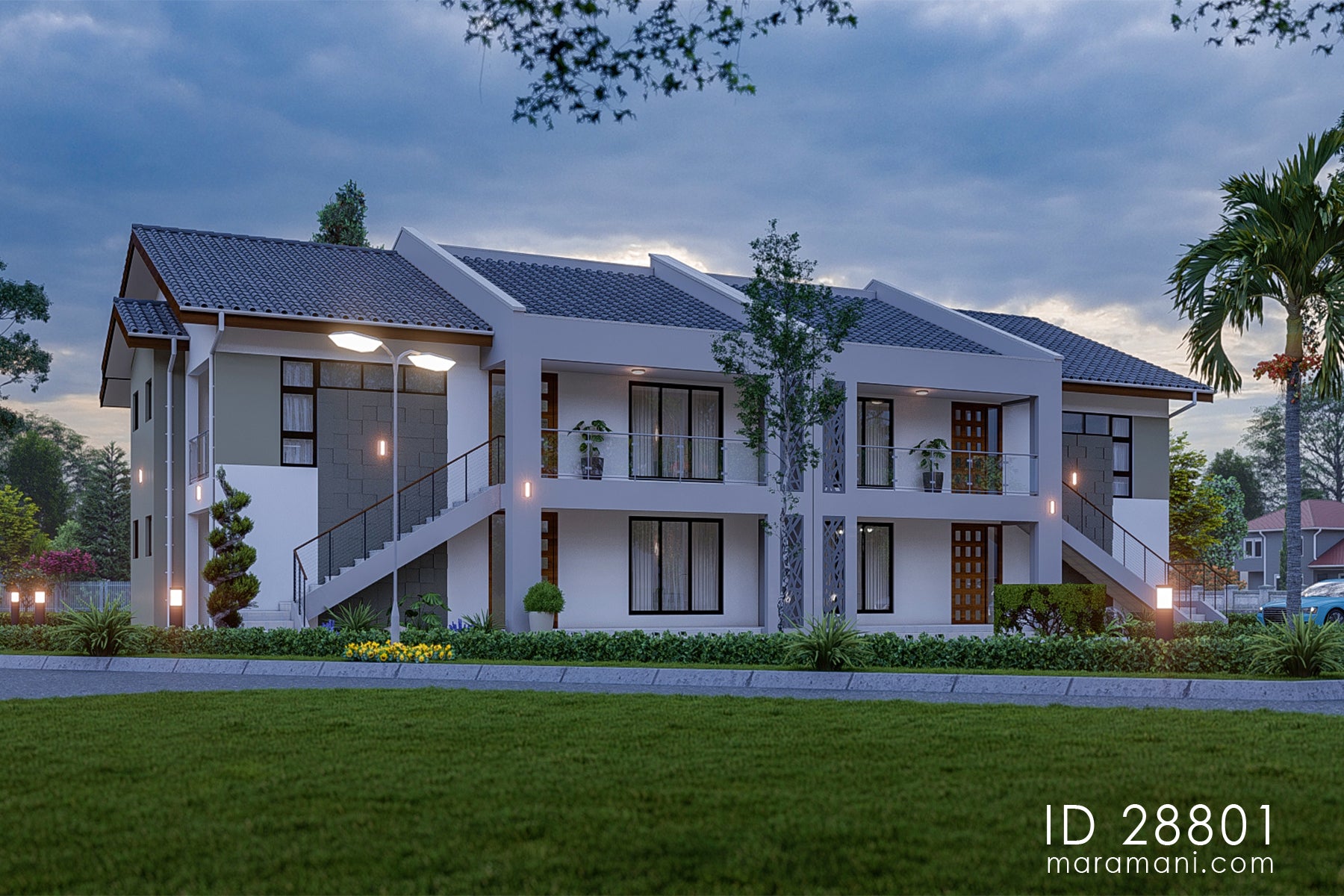

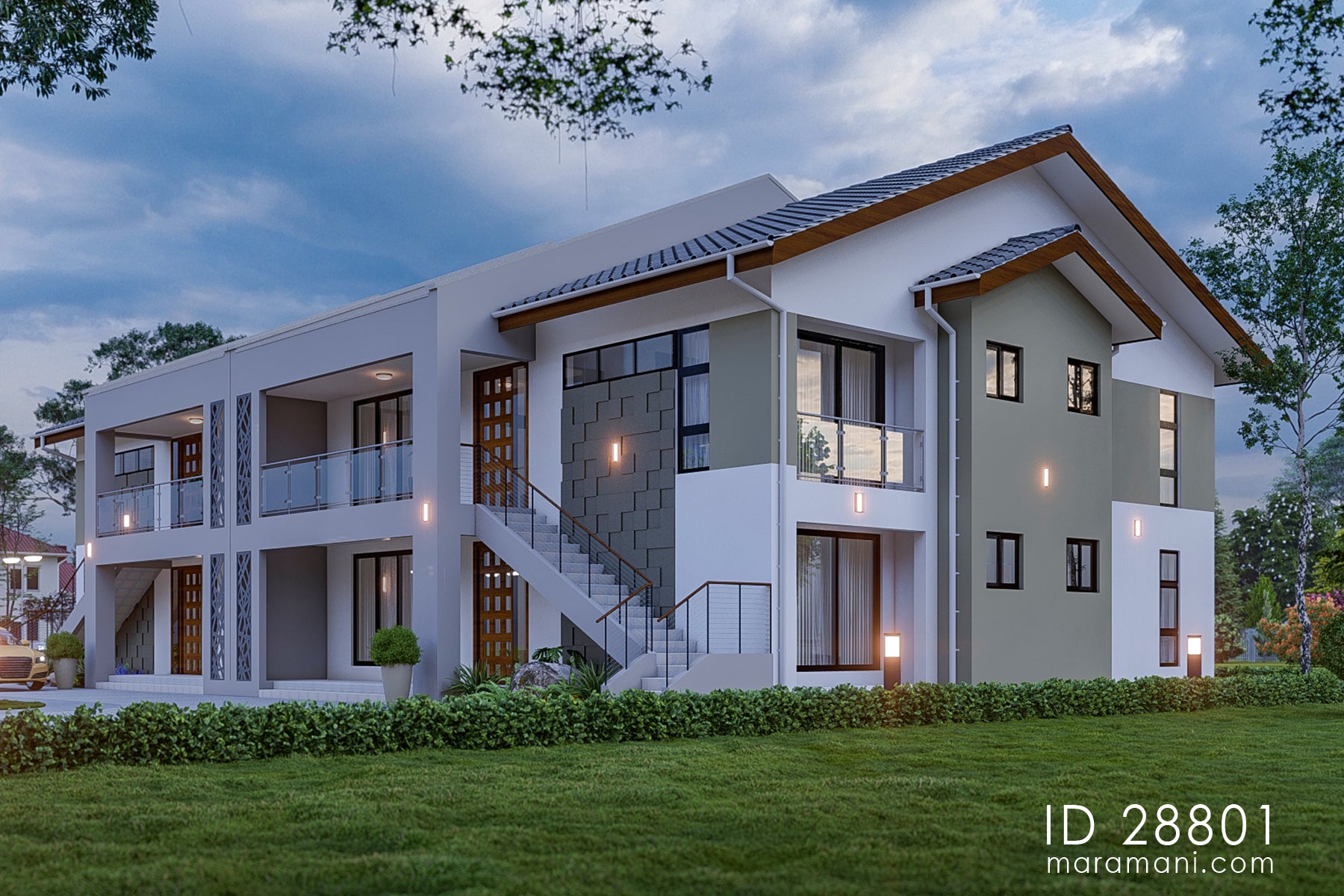

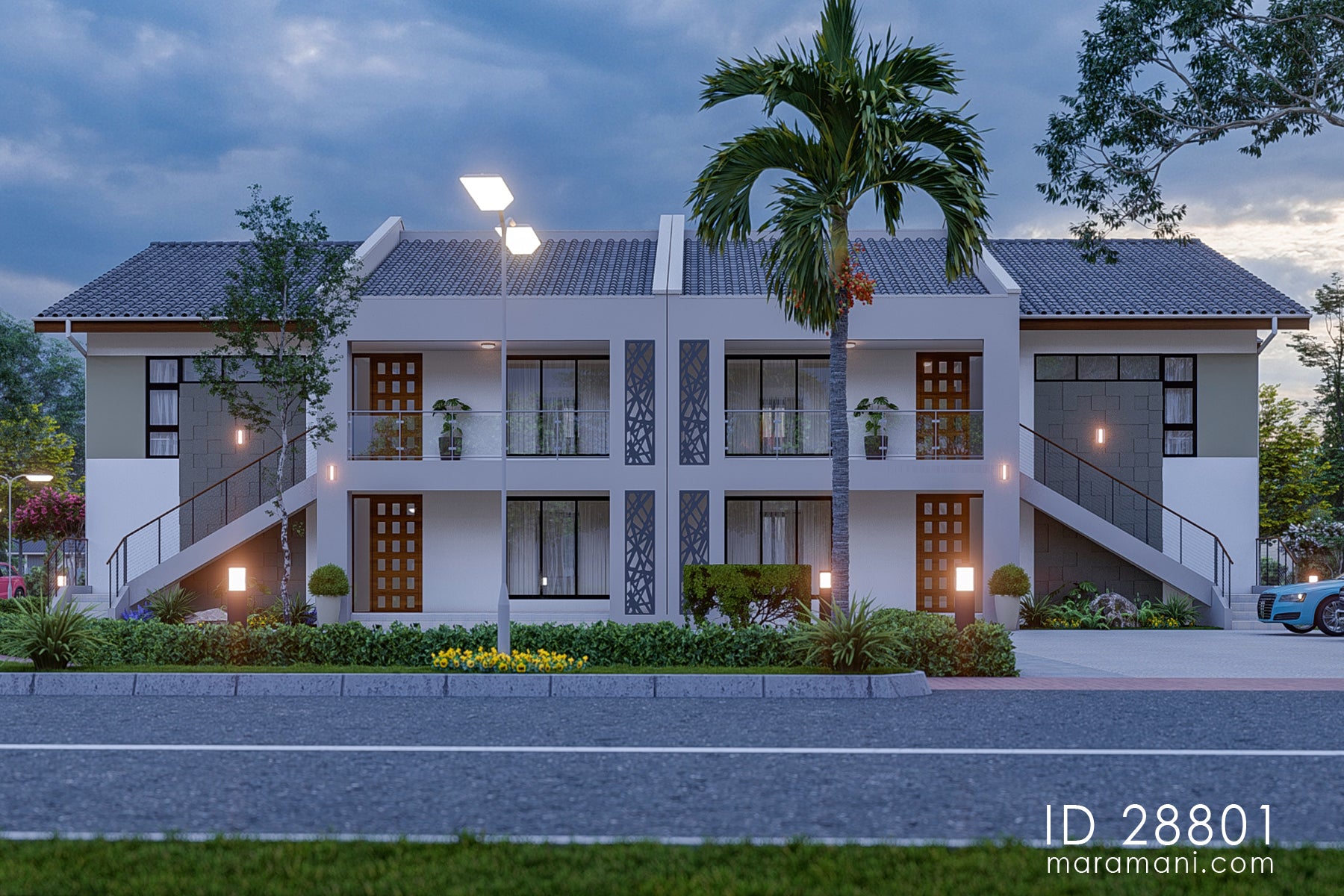

Aptly designed with striking modern style, this 2 bedroom 4-plex house layout is unique and a great option for a multi-family residence with four independent living spaces and entrances for four different renters. Each unit in this design has a spacious 157 square meters, with two full units on the ground level and the other two units on the first floor. All units provide a total of 630 square meters of living space, along with 2 bedrooms and 2 baths on each unit.

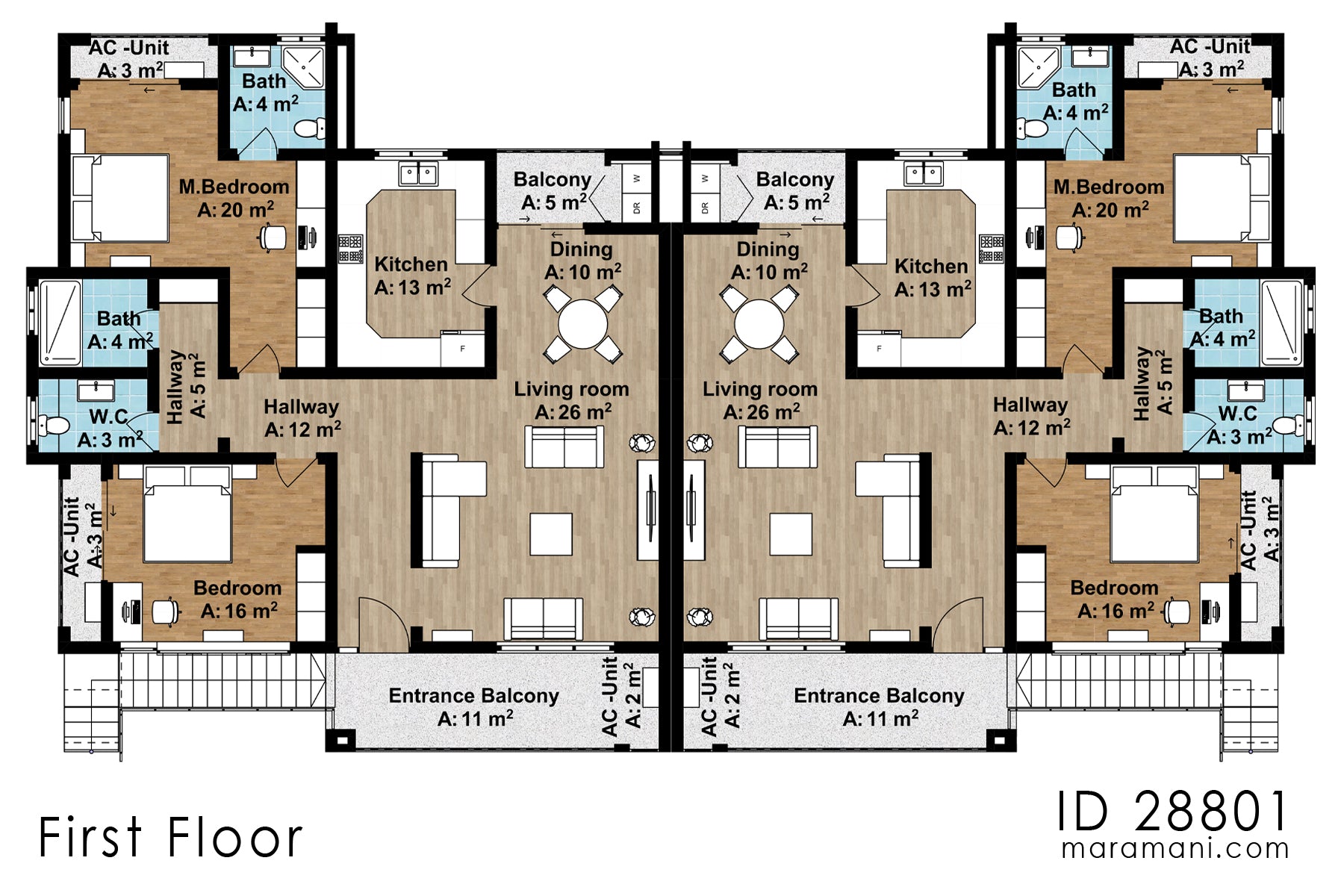

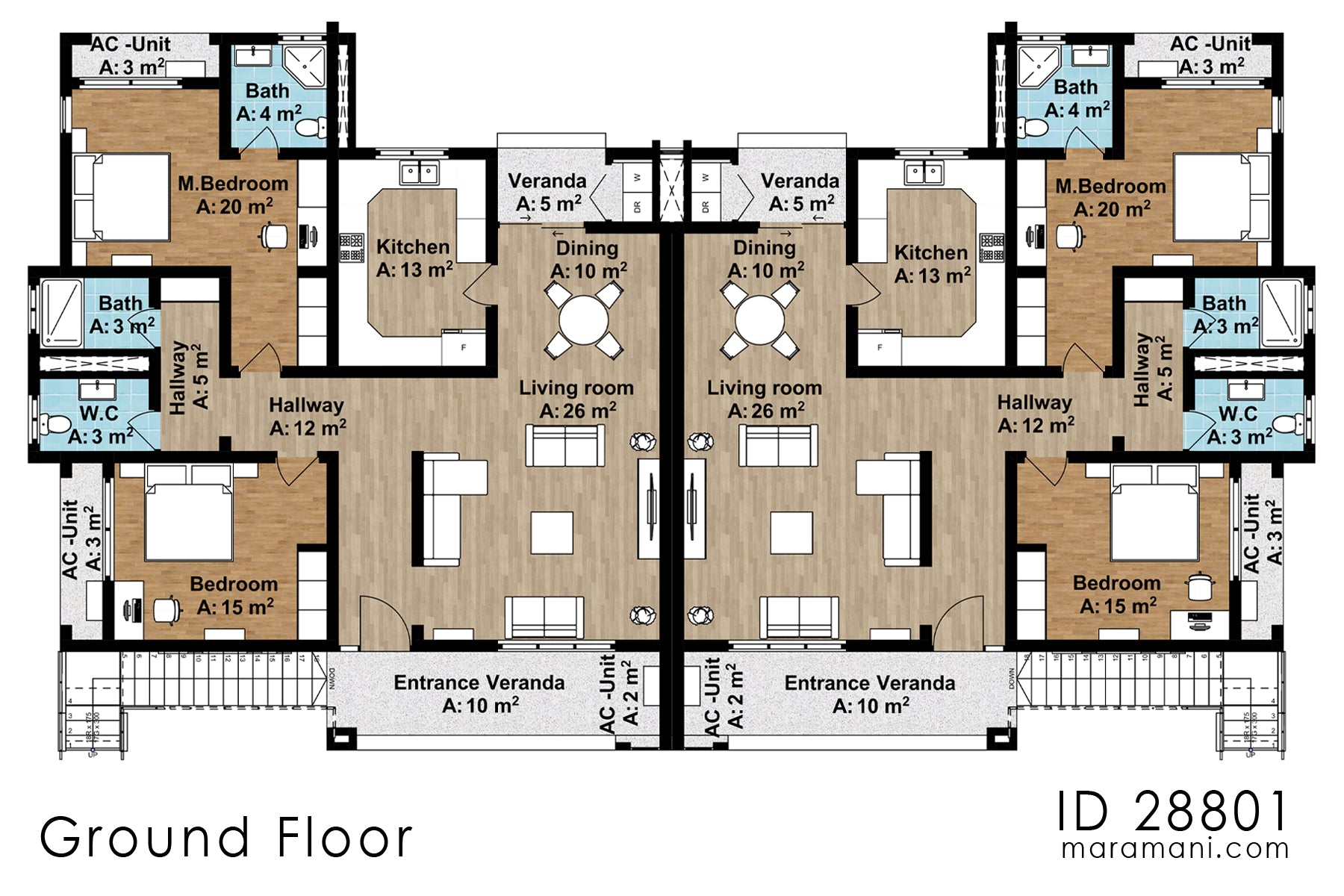

On approaching each unit you will be welcomed by either a covered porch or balcony. Upon entrance, you will discover a spacious living room and a hallway that leads you to the bedrooms. The bedrooms are spacious, modern, and cozy thanks to the addition of a well-designed small balcony for the AC-Outdoor units. One of the bedrooms in each unit is an ensuite with a walk-in closet. The dining area is adjacent to the closed kitchen, which features granite countertops and ample cabinetry. The dining room has a sliding door that leads to the balcony/veranda, which has a mini-laundry with washing machines. Throughout the house, there is a lot of flair and convenience. You won't even notice that you and your neighbors share a wall.

Plan Details

Features Drawings List
Stories: 2
En-suite rooms: 4
Bedrooms: 8
Toilets/ bath: 8
Living room: 4
Kitchen: 4
Dining: 4
Veranda: 4
Balcony: 4
Juliette Balcony: 8

Floor plans
Roof plan
Sections
Elevations
Construction Details
Door and Window Schedule
Finish and Furniture Layout
Schematic Electrical Layout
Clean water supply Layout
Waste and foul water drainage
Septic tank and Soak-away pit
Structural Drawings

*Drawings delivered in PDF and DWG Format
