12 flat apartment block - ID 89901

Plan Specifications

  • 1 penthouse

  • 11 apartments

  • 3 baths

  • 2902 sq m

  • Length 37m

  • Width 17m

$1,849.00

To make a purchase using mobile money or by bank transfer select Direct Pay Online (Alternative Method) during checkout.

Plan Description

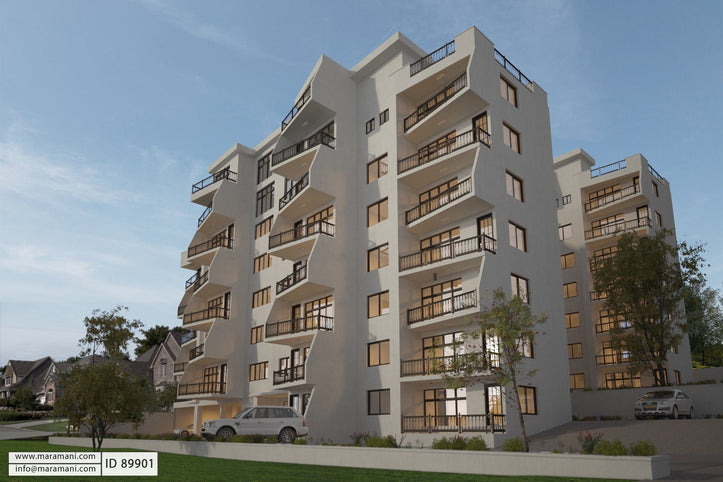

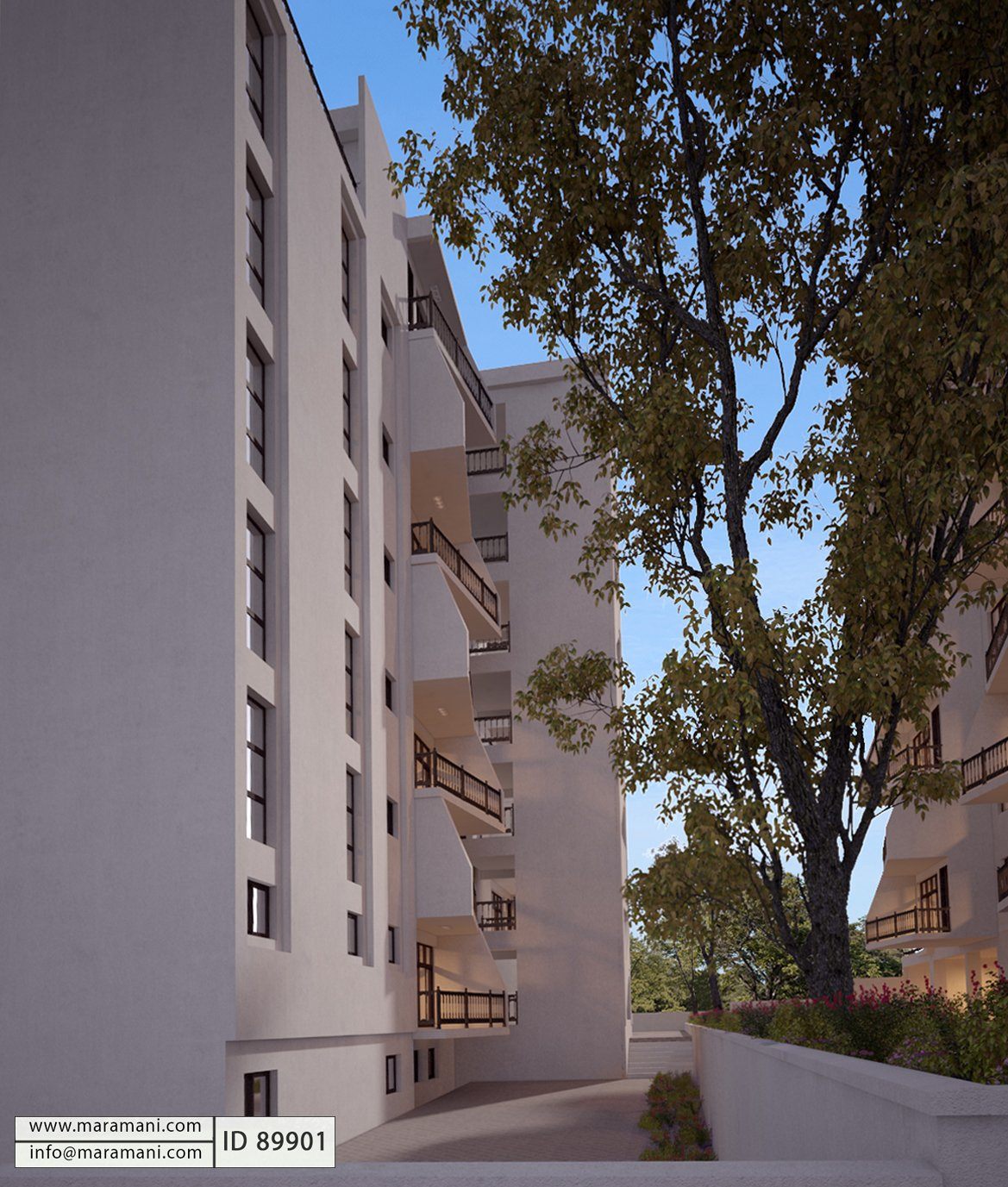

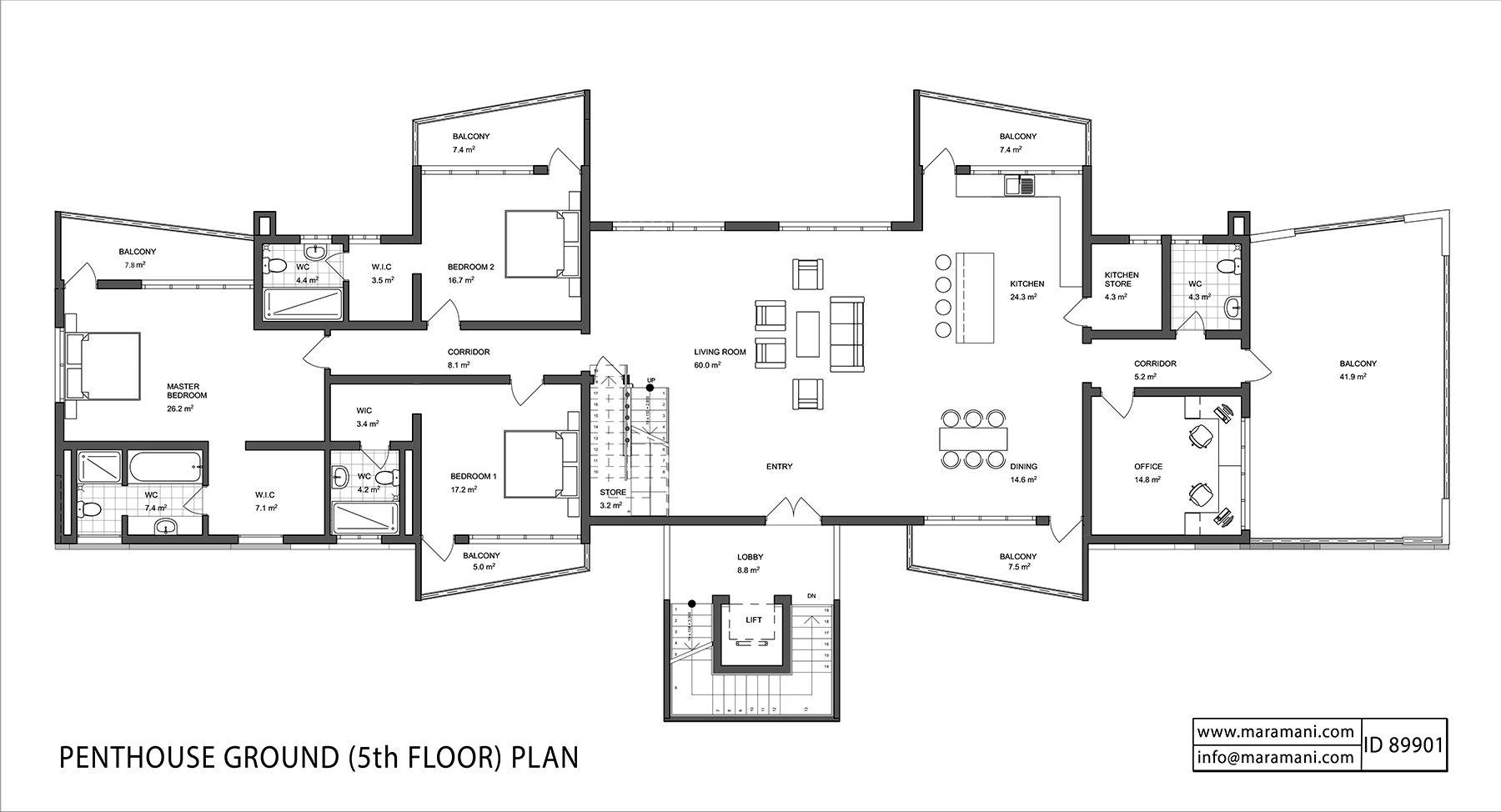

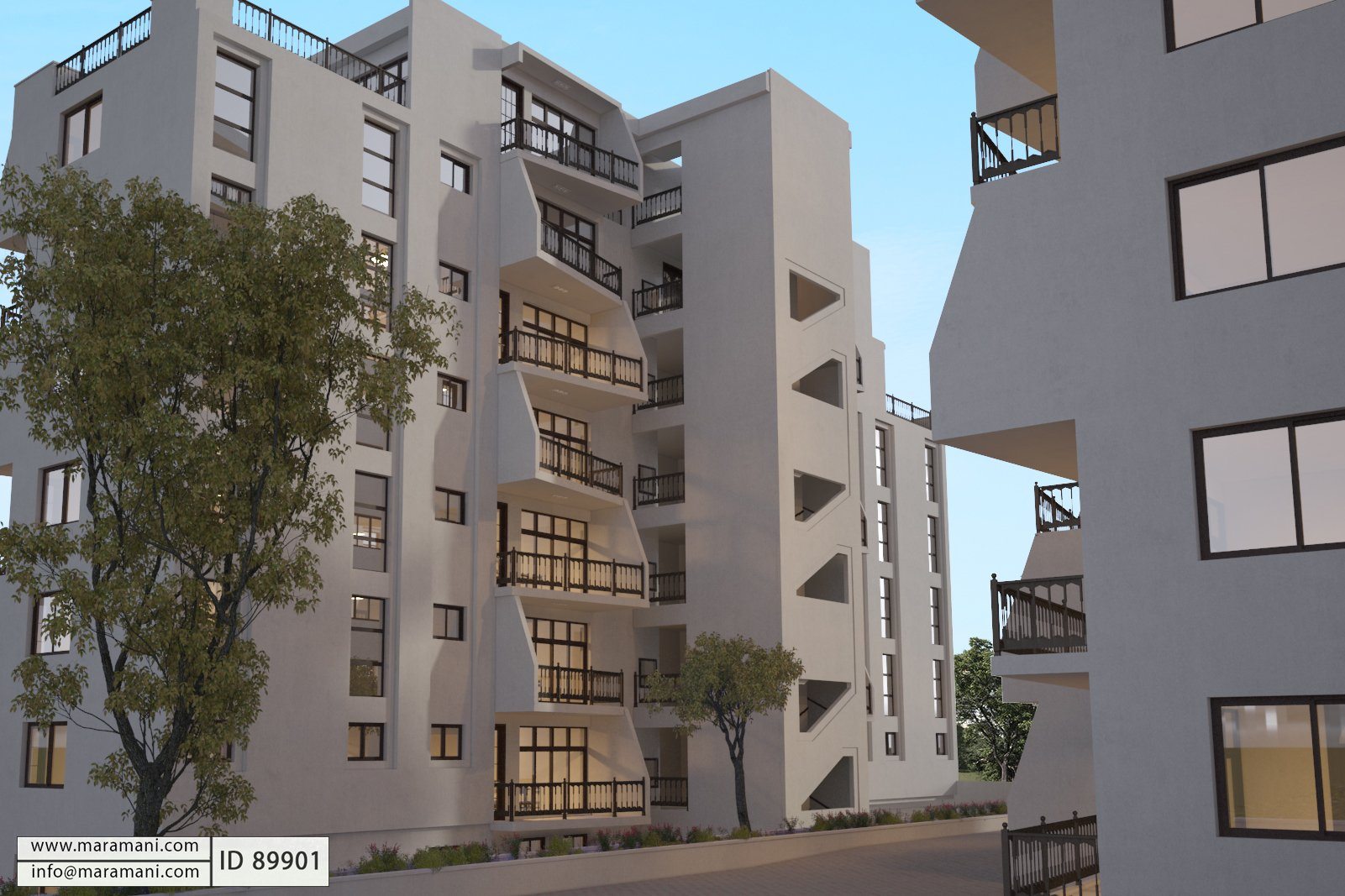

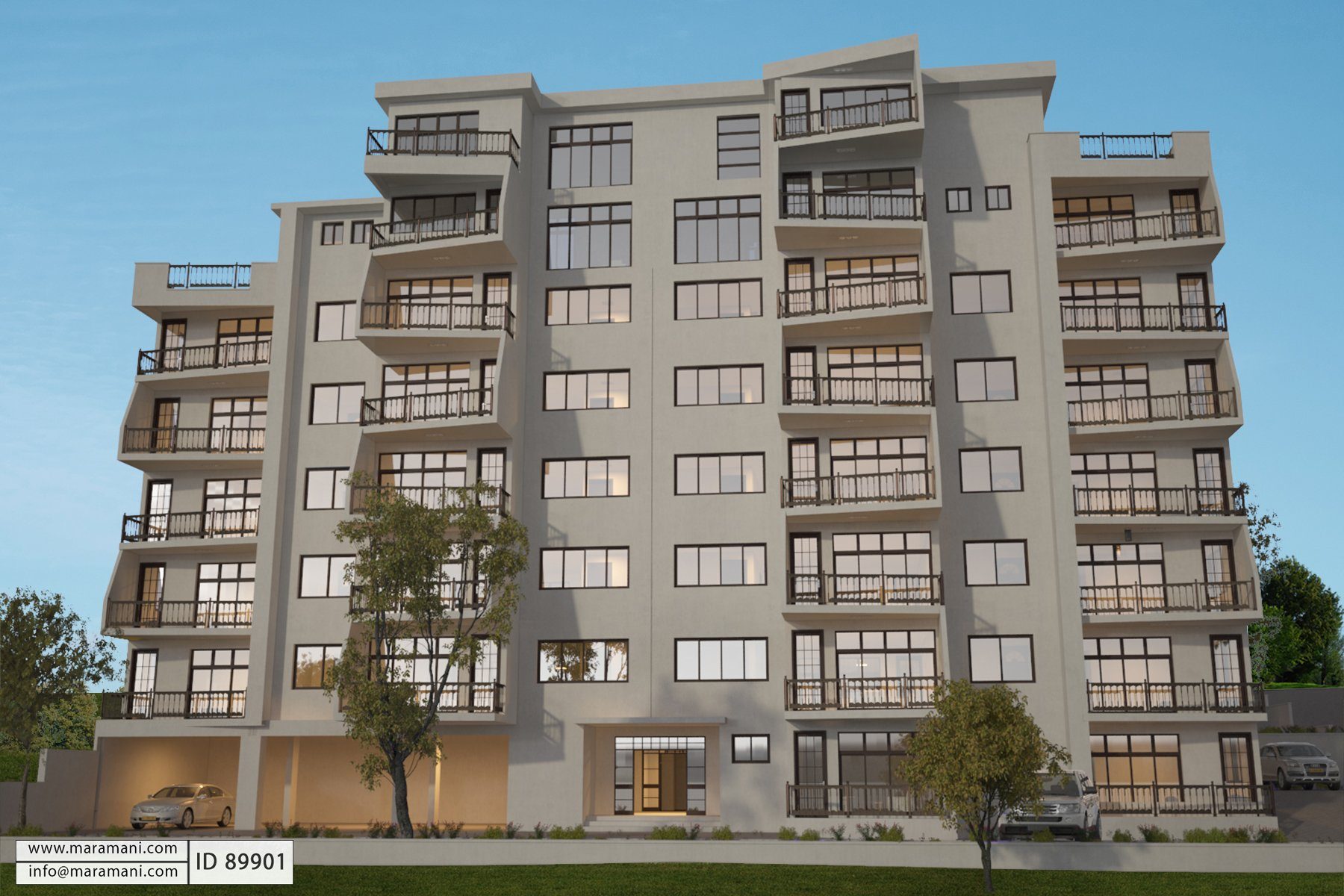

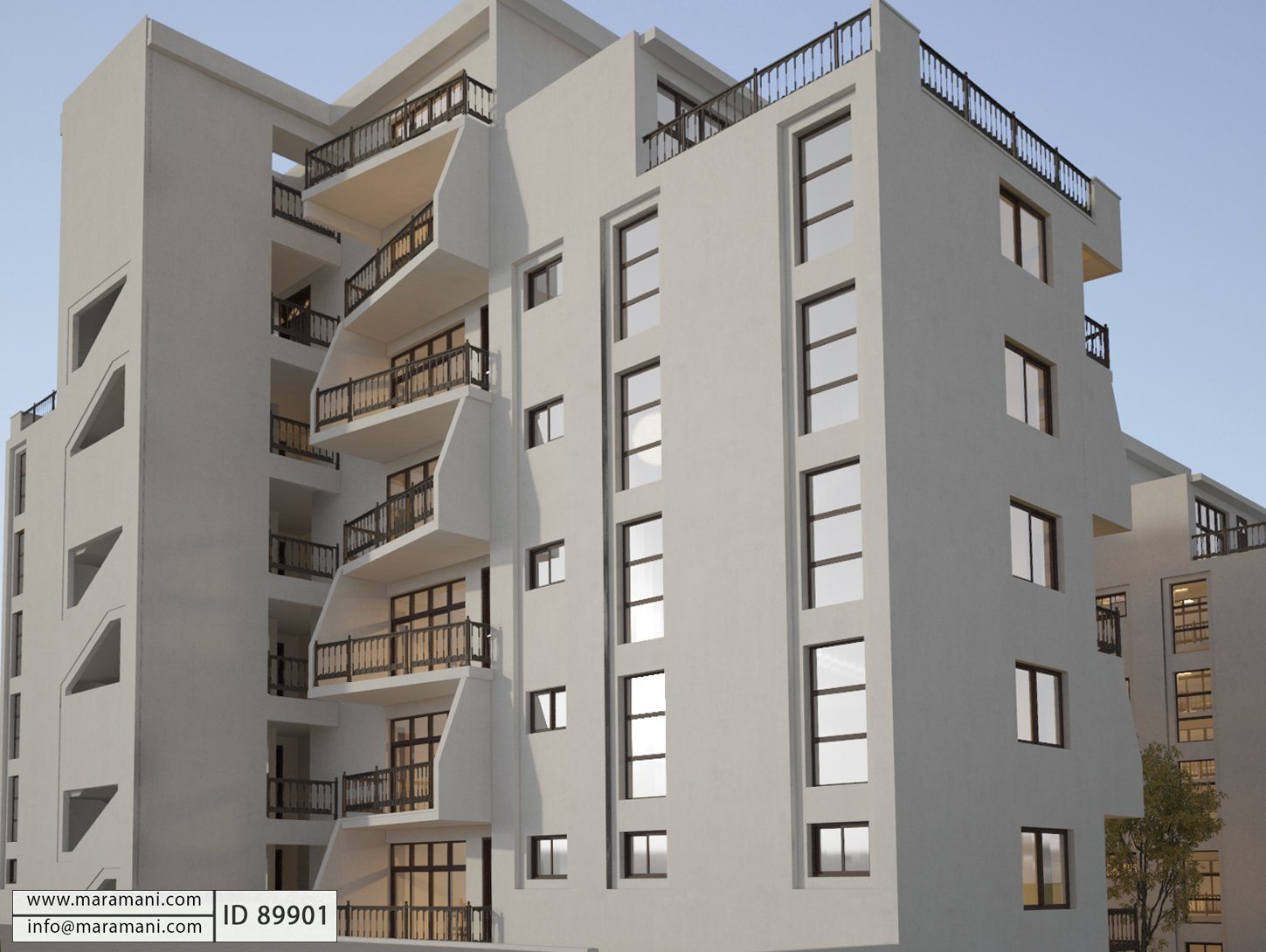

A beautiful block with 12 apartments with 2 bedrooms each spread over 8 floors. This includes a penthouse covering the last 2 floors of the block. Designed to allow each bedroom to have a direct view and natural light. Open kitchens and living rooms characterize a typical apartment.

Plan Details

Features Drawings List
Stories: 8
Bedroom: 24
Self-contained rooms: 14
Toilets: 26
Balconies: 40
Living rooms: 12
Kitchens: 12
Dining rooms: 12
Storage: 13
Office: 1
Gym: 1
Sauna: 1
Entrances: 12
Lobbies: 8
Corridor: 4
Foyers: 1
Terrace: 1
Mechanical room: 1
Electrical & power room: 1
Machine room: 1
Parking: 1

Foundation plan
Floor plan
Roof plan
Sections
Elevations
Door and Window Schedule<br/ >Construction details
Schematic Electrical layout
Furniture and fixture layout
Structural Drawings
Electrical Drawings

Mechanical Drawings
Bills of Quantities (Without Rates)

*Drawings delivered in PDF and DWG Format
